Stealth

Cobra by Stealth Arc 180 Battery Arc Welding Machine with Battery Charger

SKU: 9027H

The Cobra by Stealth Arc 180 Battery Arc Welding Machine boasts a quick 60-minute charge time for its lithium battery, allowing for 80% super charging. Its hot start and anti-sticking features ensure a seamless welding experience. At just 11. . .  Show more

  • Lithium ion
    battery

    740Wh ± 5%

  • Charger
    included

    60min > 80%

  • 5 Year
    warranty

    Built to last

  • Manual
    download

    Click here

The Arc 180 Battery

Cobra by Stealth Welding Machine

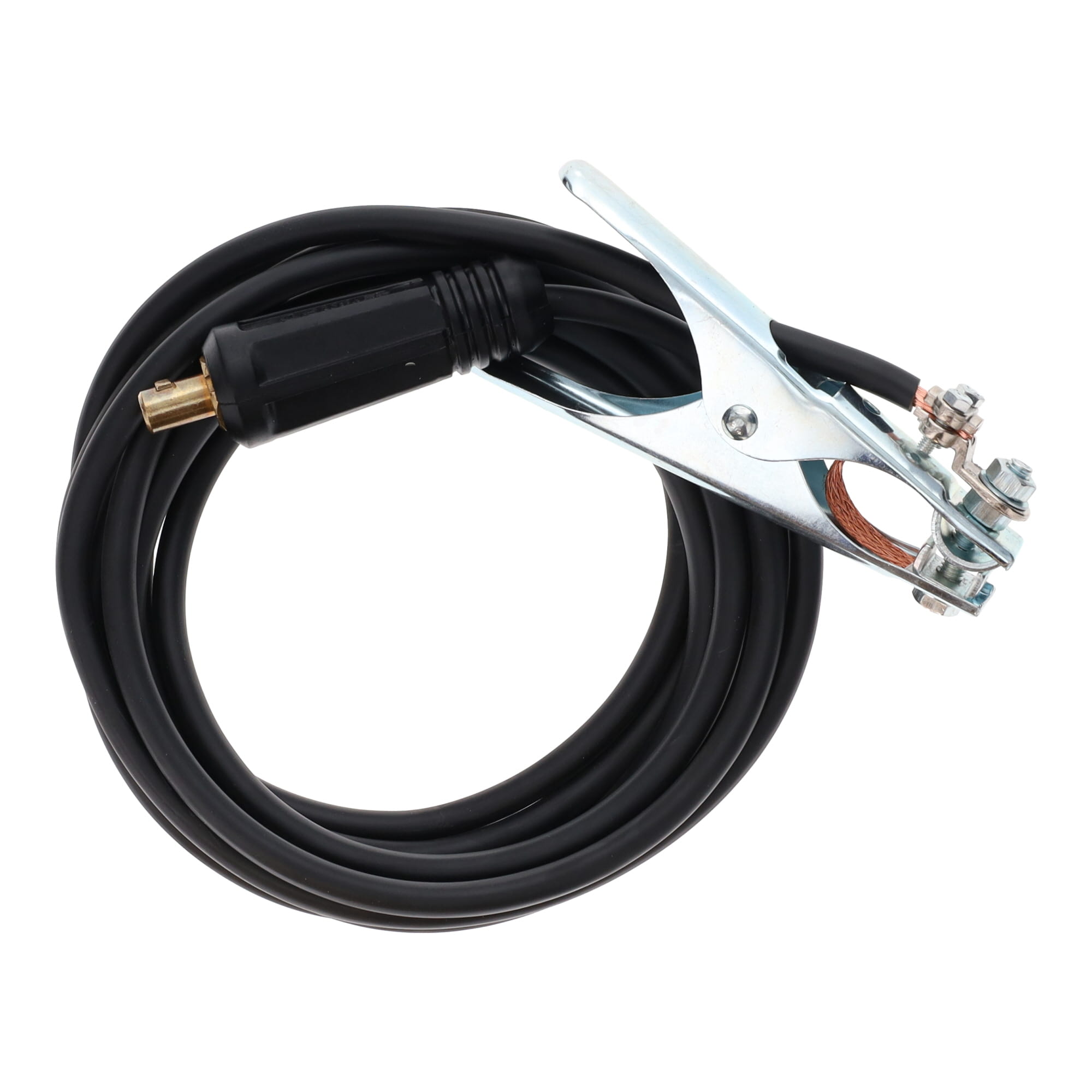

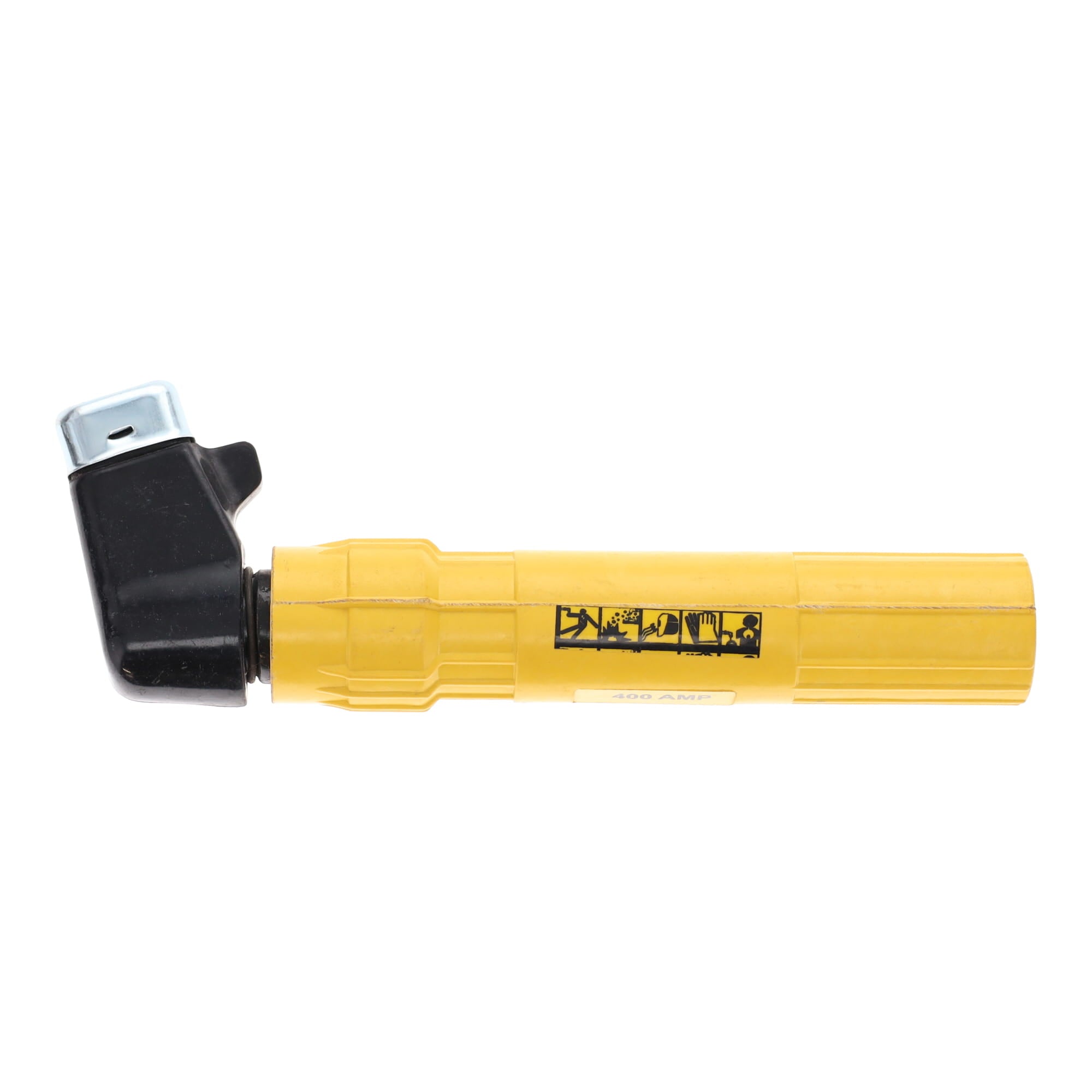

The Cobra by Stealth Arc 180 Welding Machine comes complete with an earth cable, electrode holder, and a super-fast battery charger, allowing for quick and efficient charging. With its lightweight and compact design, the Arc 180 is perfect for both workshop and field applications, delivering consistent results wherever you need them.

Lithium ion battery powered

The Cobra by Stealth Arc 180 Battery Arc Welding Machine with Battery Charger is powered by a high-capacity lithium-ion battery (740 ± 5%), featuring a supercharging capability that charges over 80% in just 60 minutes and fully charges in 100 minutes, with a rated voltage of 74V and an AC charging voltage of 230V ± 10%.

  • Lightweight & Compact

    The Cobra by Stealth Arc 180 Battery Arc Welding Machine is lightweight and compact, weighing just 11.5kg with dimensions of 440 x 150 x 280 mm, making it highly portable and easy to handle.

  • AC Charging Voltage

    The Cobra by Stealth Arc 180 Battery Arc Welding Machine supports an AC charging voltage of 230V ± 10%, ensuring compatibility with standard power supplies.

  • Super Charging

    The Cobra by Stealth Arc 180 Battery Arc Welding Machine features supercharging technology, allowing the battery to reach over 80% capacity in just 60 minutes or a full charge in 100 minutes for maximum efficiency.

Specifications

Battery type
Lithium ion
Super charging
60 min > 80%
Display
LED
Hot Start
HS
Arc Force
AF
Anti-Sticking
3 Proof
Moisture | Salt Spray | Corrosion
  • Battery type
    Lithium ion
  • Battery capacity
    740 ± 5%
  • AC charging voltage (V)
    230V ± 10%
  • Charging time (mins)
    100
  • Rated voltage of battery
    74
  • Charging current (A)
    8
  • No load voltage (V)
    MMA: 83.5
    TIG: 83.0
  • Duty cycle (A) (40°C to 10 min)
    10% @ 180
    20% @ 130
    100% @ 60
  • Welding current range (A)
    MMA: Electricity > 40% | 10-180
    TIG: Electricity < 40% | 10-150
  • Cycle life (charges)
    100
  • Protection class
    Ip21S
  • Cooling
    AF
  • Weight (kg)
    11.5
  • Dimensions (mm)
    710 x 270 x 490
  • Standards
    EN 60974-1:2021 (LV)
    EN60974-10:2021 (EMC)
    2019/125/EC
