Stealth

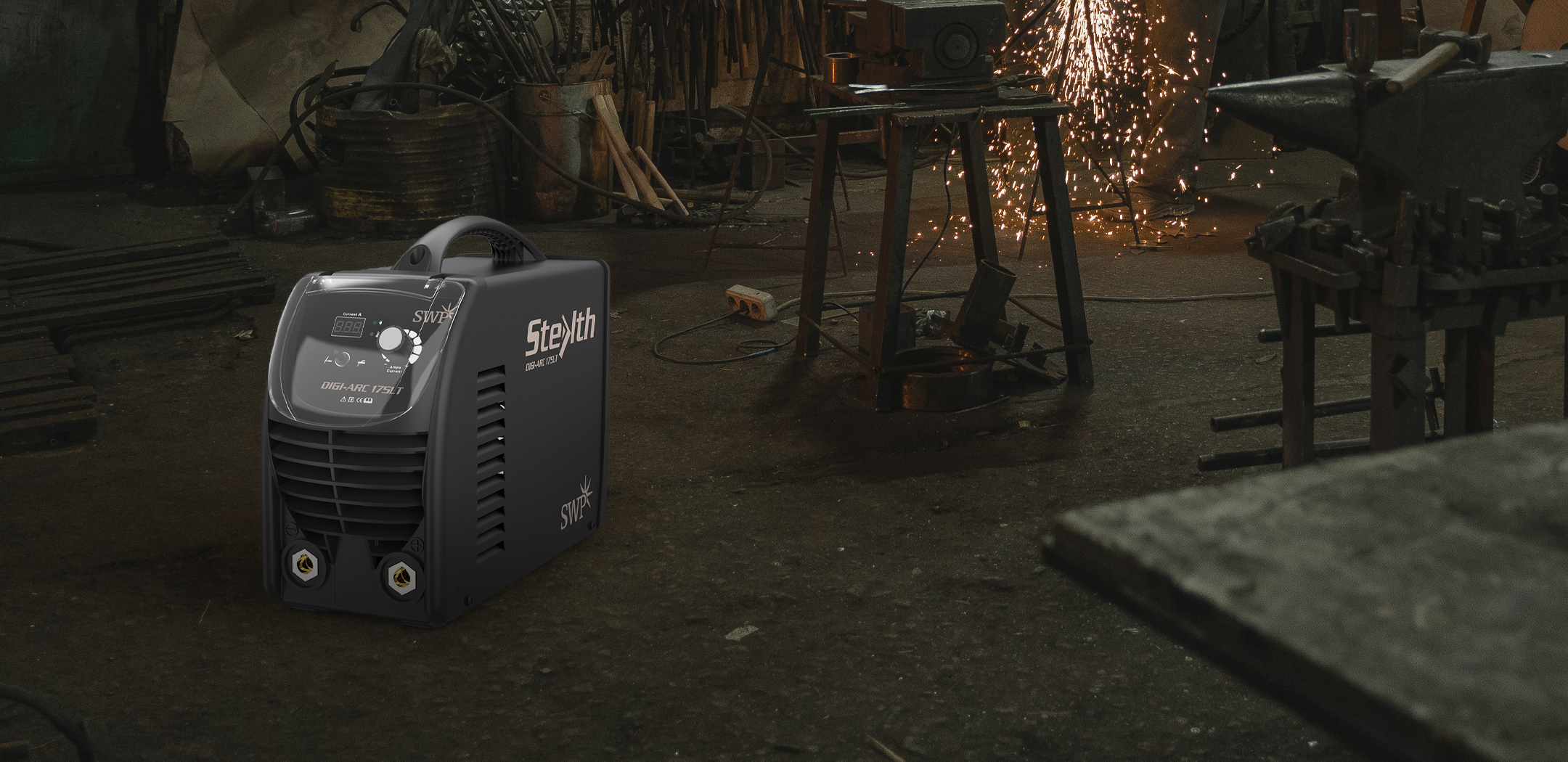

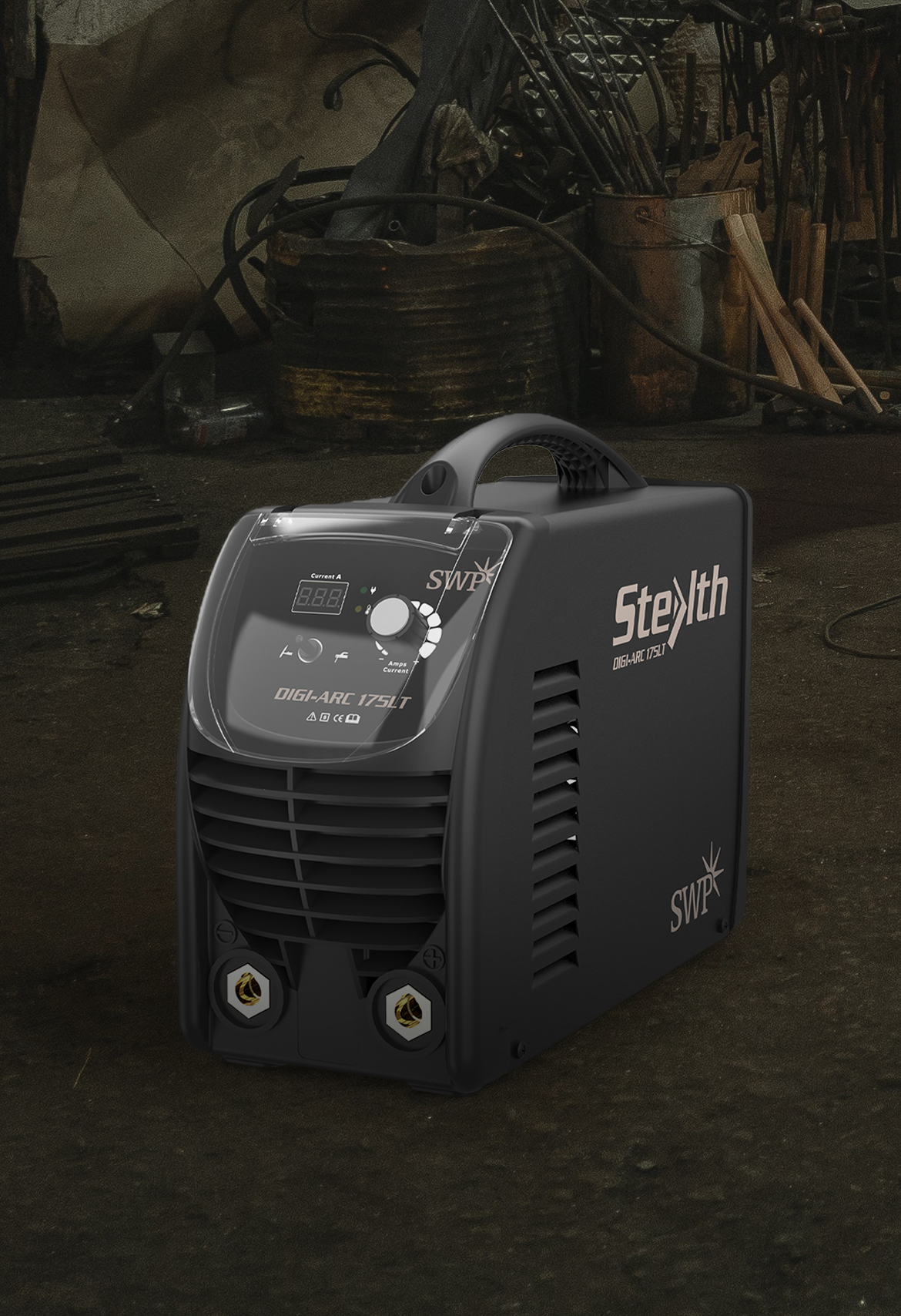

Stealth Digi-Arc 175 LT 240v Machine

SKU: 9021H
Login

The Stealth Digi-Arc 175 LT 240v Machine is a state-of-the-art welding machine, with a digital display that displays time, current, voltage, and amperage. It also features built-in hot start, anti sticking and arc force for enhanced precisio. . .  Show more

  • Excellent
    duty cycle

    60% 135A | 100% 105A

  • Input power
    voltage

    230±10%V

  • Effective
    input current

    TIG: 24A | MMA: 17A

  • Top class
    efficiency

    ≤80%

Benefit from peace of mind with the Stealth Digi-Arc 175 LT, which offers a generous 5-year warranty, ensuring reliability and long-term support for your welding needs.

Experience enhanced control and precision with the Stealth Digi-Arc 175 LT, featuring a convenient digital display that provides clear visibility of settings and parameters during welding operations.

The Stealth Digi-Arc 175 LT boasts built-in hot start, anti-sticking, and arc force features, enhancing welding performance and ensuring smooth operations.

Effortlessly switch between welding processes with the Stealth Digi-Arc 175 LT, which boasts a convenient Lift/Tig facility, ensuring versatility and seamless operation for various welding applications.

The Stealth Digi-Arc 175 LT offers added convenience with an optional carry case, providing portability and protection for easy transportation to different welding sites.

THE DIGI-ARC 175 LT

Stealth Arc Welding Machine

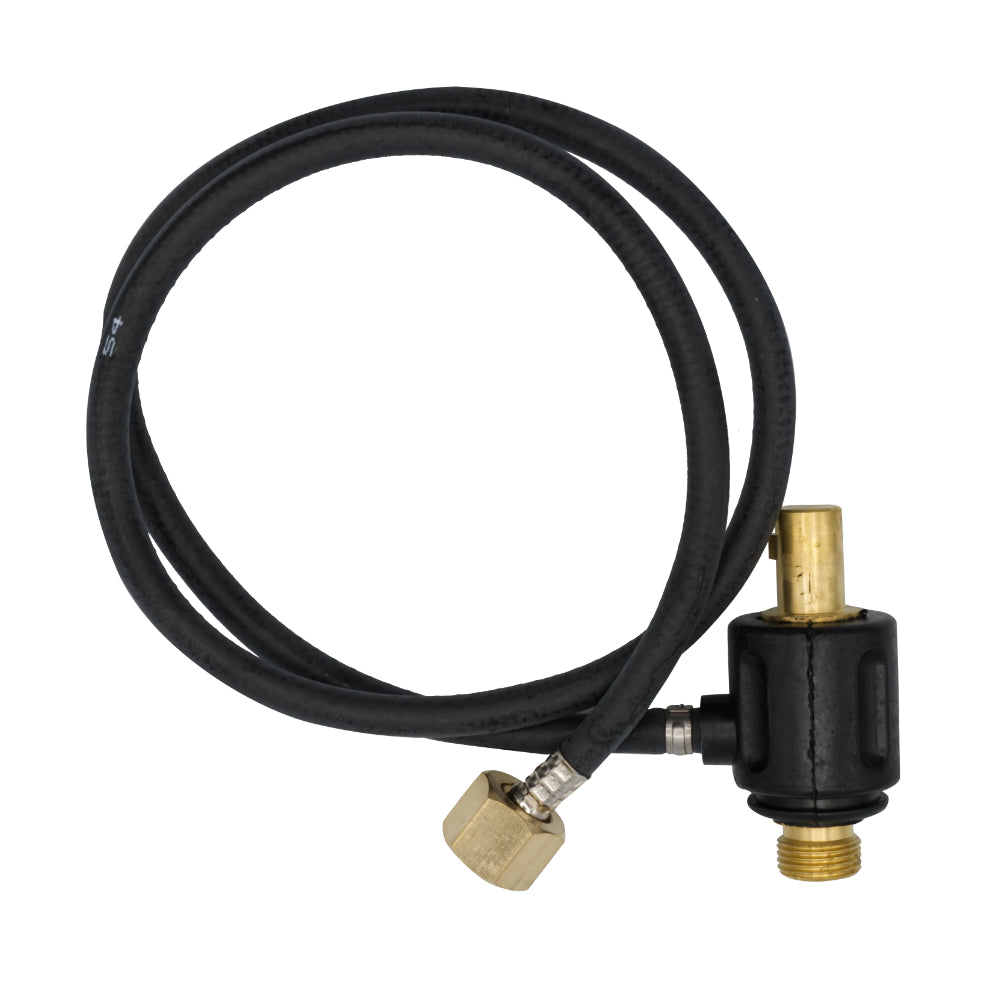

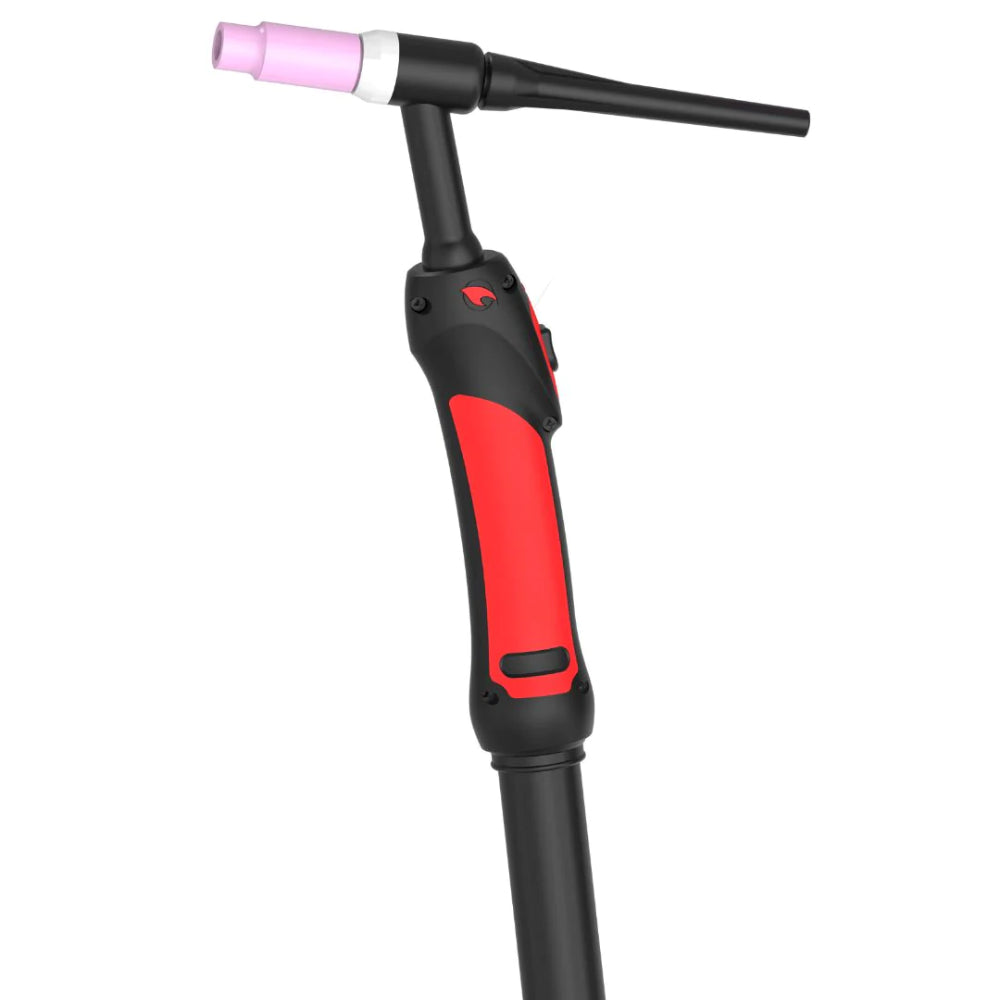

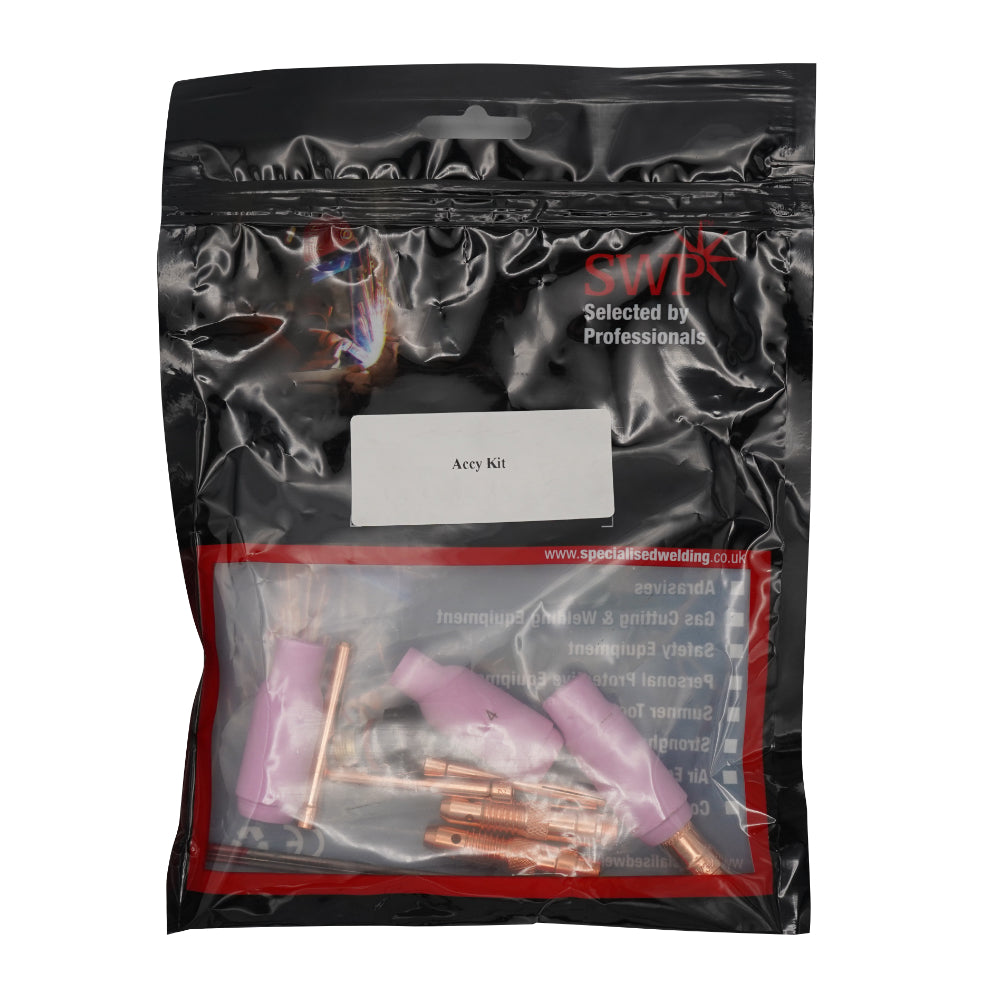

Add the Scratch Start TIG Package consisting of one ET17V-12 Torch, the WP17AK Accessory Kit and the D3595-1-3MT Extended TIG Adaptor to your Digi-Arc 175 LT to complete the set.

Built-in hot start, anti sticking and arc force.

The Stealth Digi-Arc 175 LT comes with built-in hot start, anti-sticking, and arc force features, enhancing its performance and making it more user-friendly for welding applications.

  • 4MM Max electrode diameter

    A 4mm max electrode diameter enhances the versatility of the Stealth Digi-Arc 175 LT, allowing for optimal performance with various electrode sizes.

  • >80% Efficiency rating

    Benefit from superior energy utilisation, boasting an efficiency rating exceeding 80%, ensuring cost-effectiveness and optimised performance.

  • 3 Proof

    The Stealth Digi-Arc 175 LT boasts exceptional durability with resistance against moisture, salt spray, and corrosion, ensuring reliable performance even in challenging environments.

Specifications

Input Voltage
230V
Standards
EN 60974/1
Lift TIG
capabilities
Yes
Control system
ECU
Generator friendly
Yes
3 Proof
Moisture
Salt Spray
Corrosion
Weight
4.5kg
  • Input power voltage (V)
    230±10%
  • Frequency (Hz)
    50/60
  • Effective input current (A)
    MMA 17 | TIG 24
  • Maximum (kVA)
    8.5
  • Current adjustment range (A)
    10-160
  • Maximum no-load voltage (V)
    62
  • Duty Cyle (A) (40°C 10 min)
    40% @ 160A | 60% @ 135A | 100% @ 105A
  • Efficiency (%)
    ≤80
  • Protection class
    Ip23
  • Insulation class
    H
  • Cooling
    Air
  • Electrode diameter (mm)
    1.6-4.0
  • Electrode type
    6013, 7018, etc
  • Overall dimensions (mm)
    362 x 148 x 280
  • Weight (kg)
    4.5
  • Accessories included
    3m earth return lead, 3m electrode lead
