Description

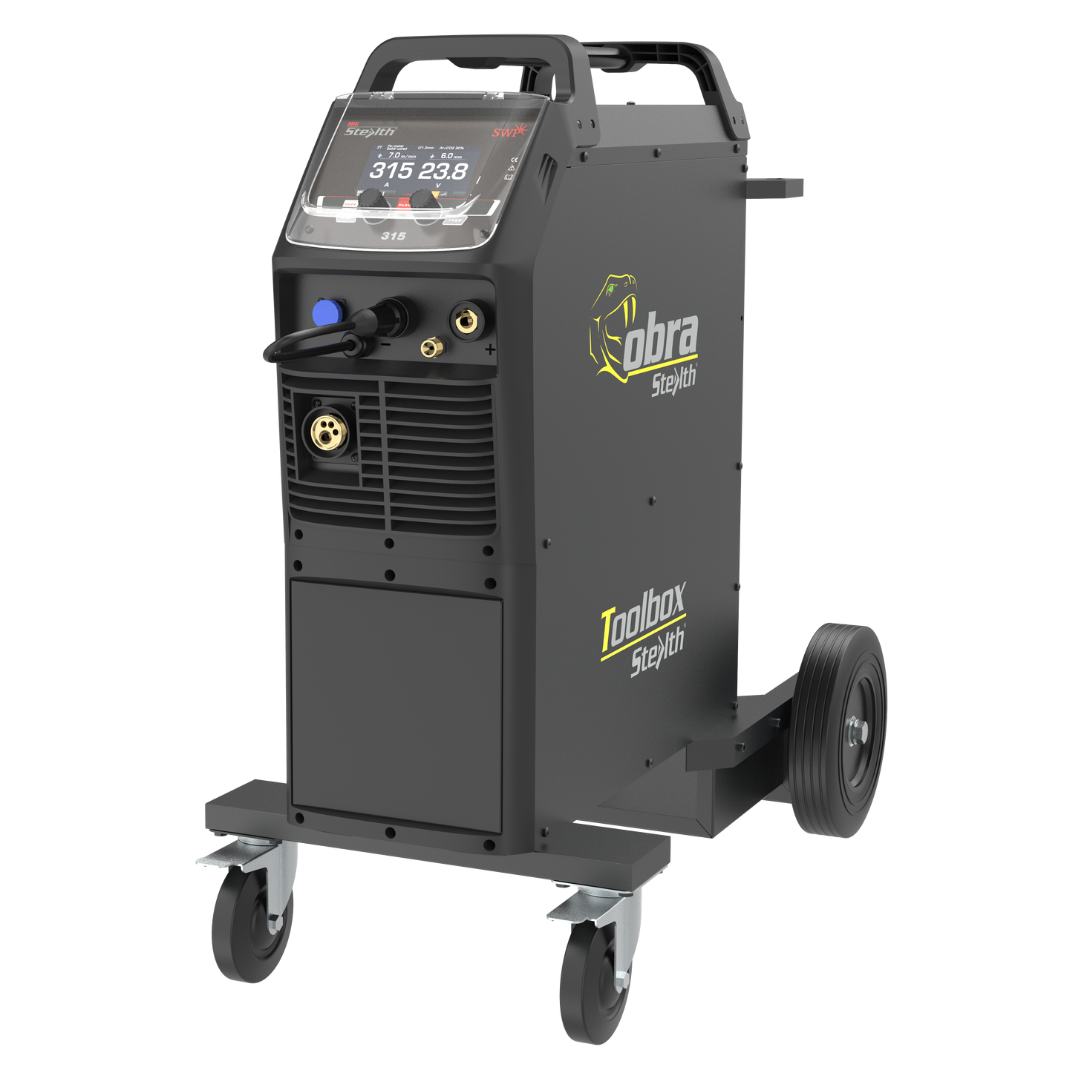

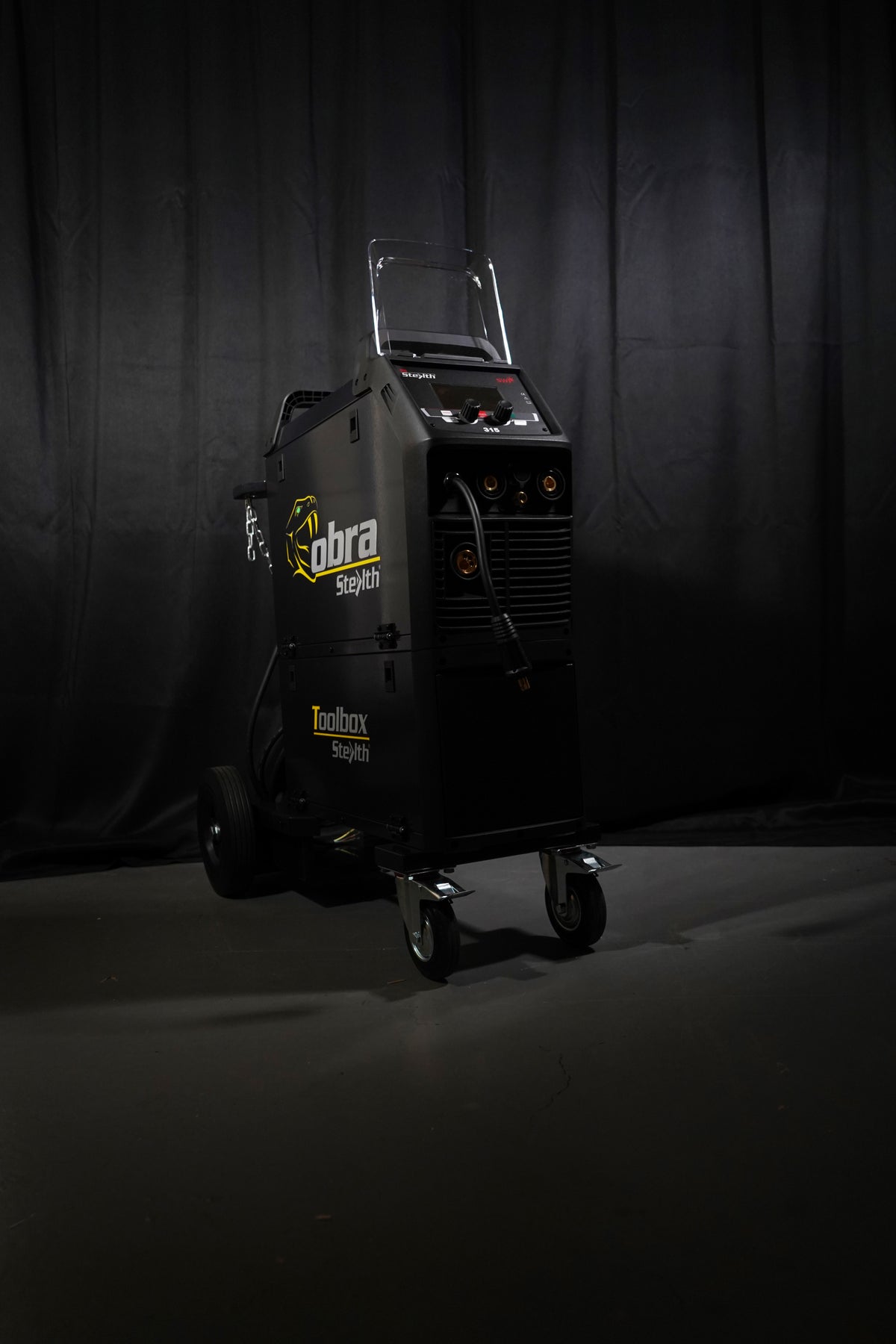

The Cobra by Stealth 315 Toolkit Air Cooled MIG Welding Machine (9104H) combines MIG, Lift TIG, and MMA welding in one powerful 3-in-1 system. Designed for professional fabrication, manufacturing, and workshop use, it delivers reliable performance, strong duty cycles, and consistent weld quality across multiple materials.
- 3-in-1 welding: MIG, Lift TIG (DC), and MMA
- Synergic MIG control for fast, automatic setup
- Supports steel, stainless steel, aluminium, and flux-cored wire
- High duty cycle for continuous professional use
- Air cooled design for reliable daily workshop operation
What's Included
M36-4 Stealth Grip MIG Torch (Air Cooled) Stealth Regulator (2068) Earth Cable
Optional Accessories
9807 Scratch Start TIG Package EH52LD Electrode Lead
Read More
The 9104H Air Cooled model is ideal for general fabrication, repair, and production environments where consistent performance and ease of maintenance are required. Its inverter-based design delivers stable output and reliable arc control for daily professional use.
What is a 3-in-1 Welding Machine?
A 3-in-1 welding machine combines MIG, Lift TIG, and MMA welding processes into one versatile unit, allowing workshops to handle multiple applications without investing in separate machines.
MIG Synergic – Automatic parameter adjustment for fast setup and consistent results.
Lift TIG DC – Precision welding for steel and stainless steel applications.
MMA – Reliable stick welding for site work and structural tasks.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- 5 Year Manufacturer Warranty
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Cobra by Stealth MIG Welders 315 Water Cooled Technical Manual
Specifications
- Power Supply Voltage (V): 3-400
- Power Frequency (Hz): 50/60
- Effective Current (A): MIG 14.2 | TIG 10.8 | MMA 11.7
- Rated Input Current (A): MIG 22.5 | TIG 17.0 | MMA 18.5
- Rated Input Power (KW): MIG 15.6 | TIG 11.8 | MMA 12.8
- Duty Cycle (A) (40°C 10 min) MIG: 40% @ 315A | 60% @ 260A | 100% @ 200A
- Duty Cycle (A) (40°C 10 min) TIG: 40% @ 300A | 60% @ 245A| 100% @ 190A
- Duty Cycle (A) (40°C 10 min) MMA: 40% @ 250A | 60% @ 205A | 100% @ 160A
- Welding Current Range (A): MIG 30-315 | TIG 10-300 | MMA 10-250
- Welding Voltage Range (V): MIG 15.5-29.8 | TIG 10.4-22 | MMA 20.4-30
- Wire Feeding Speed (m/min): 1.5-18
- No Load Voltage (V): MIG 75.5 | TIG 71.5 | MMA 75.5 (11.9 VRD)
- Efficiency (%): 88.7
- Power Factor: 0.68
- Protection Class: IP21S
- Cooling: AF
- Dimensions (mm): 930 x 460x 940
- Weight (kg): 51.1
