Description

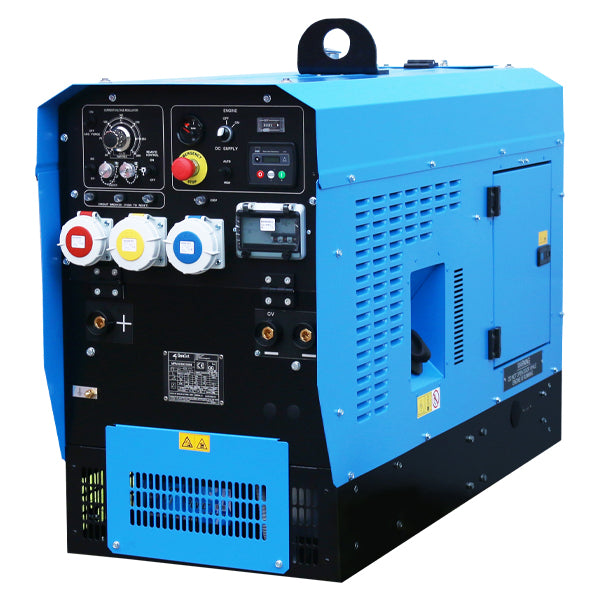

The GenSet MPM 8/300 I-K Static Diesel Welder Generator is an industrial grade generator that is designed to provide an efficient and reliable source of power when welding. It features a robust 8kVA output for continuous operation with an impressive 300A welding current and is equipped with a fuel-efficient diesel engine. This generator is perfect for welding applications in areas where access to grid power is not readily available.
- Controller (DSE 3110) with digital display for full monitoring of generator parameters
- Fuel level gauge
- 1 x 16A, 400V three-phase EEC socket
- 1 x 32A, 230V single-phase EEC socket
- 1 x 32A, 110V single-phase EEC socket
- Power output protection
- Earth Leakage Circuit Breaker
- Remote control socket
- Arc force control switch
- Automatic idle device when no load is connected
- 12V battery
- Central lifting eye
- Emergency stop button
- Two Year Warranty
Specifications
- DC Welding
- Duty Cycle @ 35%: 300A-32V
- Duty Cycle @ 60%: 270A-31V
- Stepless Control: 30A-300A
- Open Circuit Voltage: 70V
- Max Welding Rod: 6mm
- AC Generator - 50Hz
- Type: Asynchronous, Self Excited & Self-Protected
- Three-Phase Power (max): 8.0kVA-400V
- Single-Phase Power (max): 2.7kVA-230V
- Single-Phase Power (max): 13kVA-110V
- Power Factor: cos 0.8
- Diesel Engine - 3000 rpm
- Type: Kabuta D722 - 3 cylinders - 719cm3
- Max Power: 19.4HP (14.4kW/m)
- Starting System: Electric (12VDC)
- Cooling System: Water
- Fuel Tank Capacity: 30 litres
- Fuel Consumption @ 75%: 3.3 litres/hour
- Compliance Data
- Noise Level: 99 LWA (74dB @ 7m)
- Insulation Class: H
- Ambient Temperature: 40°C
- Altitude: 1000m
- Mechanical Protection: IP23
- Dimensions (l x w x h): 1360 x 530 x 870mm
- Dry Weight: 345kg
