Description

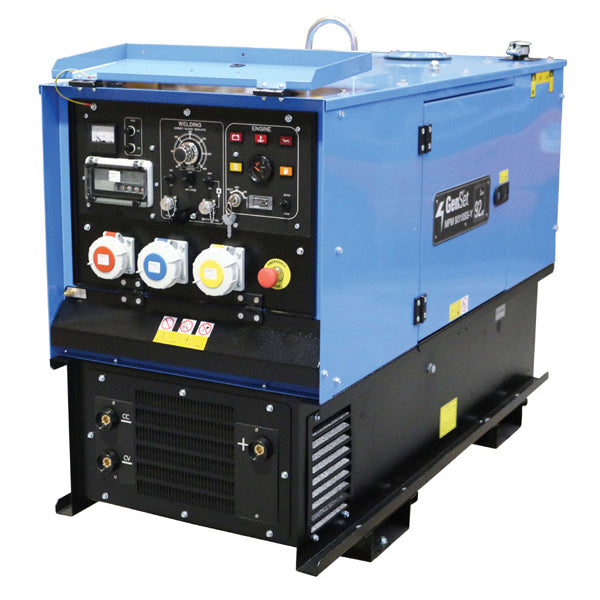

GenSet MPM 9/310 SS-Y Static Diesel Welder Generator
The GenSet MPM 9/310 SS-Y Static Diesel Welder Generator features an auto engine protection shutdown system, arc force control switch, and remove control socket for reliable welding performance. With a max power of 19.4 hp, 3000 rpm and 48V output, this generator offers reliable and efficient power at a low 92 lwa noise level.
- Arc Force Control switch
- Remote control socket
- Auto engine protection shutdown system with warning lights for:
- Battery charger failure
- Low fuel level
- Low oil pressure
- High water temperature
- Automatic idle device when no load is connected
- 12V battery
- Fuel level gauge
- Hourmeter
- Voltmeter
- Emergency stop button
- Power output protection
- 1 x 16A 400V three-phase EEC socket
- 1 x 32A 230V single-phase EEC socket
- Engine oil drain pipe
- Central lifting eye
- Bunded base to retain all liquids
- Two Year Warranty
- Made in Italy
Specifications
- DC Welding
- Duty Cycle @ 35%: 300A-32V
- Duty Cycle @ 60%: 270A-31V
- Stepless Control: 30A-300A
- Open Circuit Voltage: 70V
- Max Welding Rod: 6mm
- AC Generator - 50Hz
- Type: Asynchronous, Self Excited & Self-Protected
- Three-Phase Power (max): 8.0kVA-400V
- Single-Phase Power (max): 2.7kVA-230V
- Single-Phase Power (max): 13kVA-110V
- Power Factor: cos 0.8
- Diesel Engine - 3000 rpm
- Yanmar 3TNM72 - 3 cylinders - 904cm3
- Max Power: 19.4HP (14.4kW/m)
- Starting System: Electric (12VDC)
- Cooling System: Water
- Fuel Tank Capacity: 50 litres
- Fuel Consumption @ 75%: 5.1litres/hour
- Compliance Data
- Noise Level: 92 LWA
- Insulation Class: H
- Ambient Temperature: 40°C
- Altitude: 1000m
- Mechanical Protection: IP23
- Dimensions (l x w x h): 1530 x 683 x 1142mm
- Dry Weight: 475kg
