Description

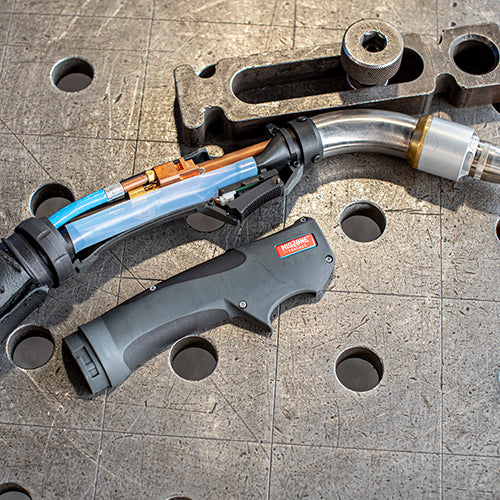

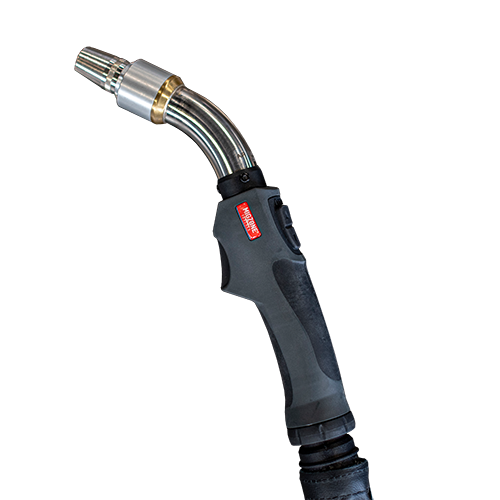

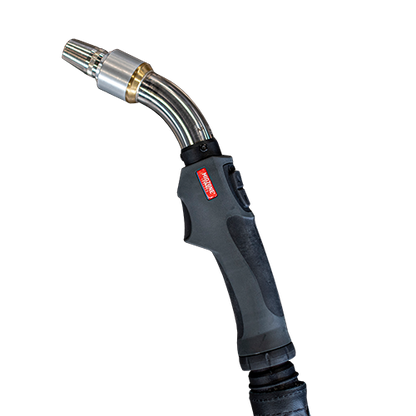

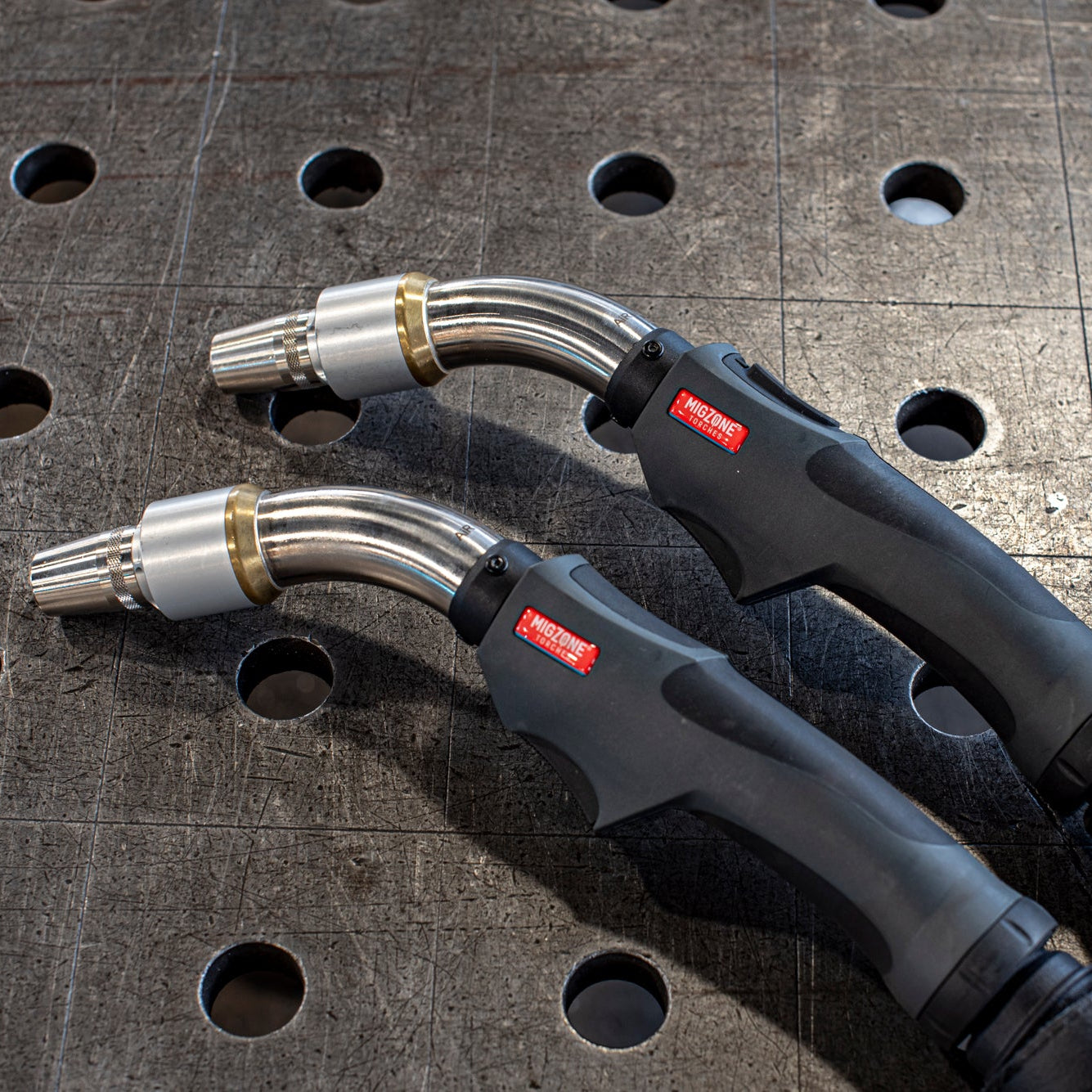

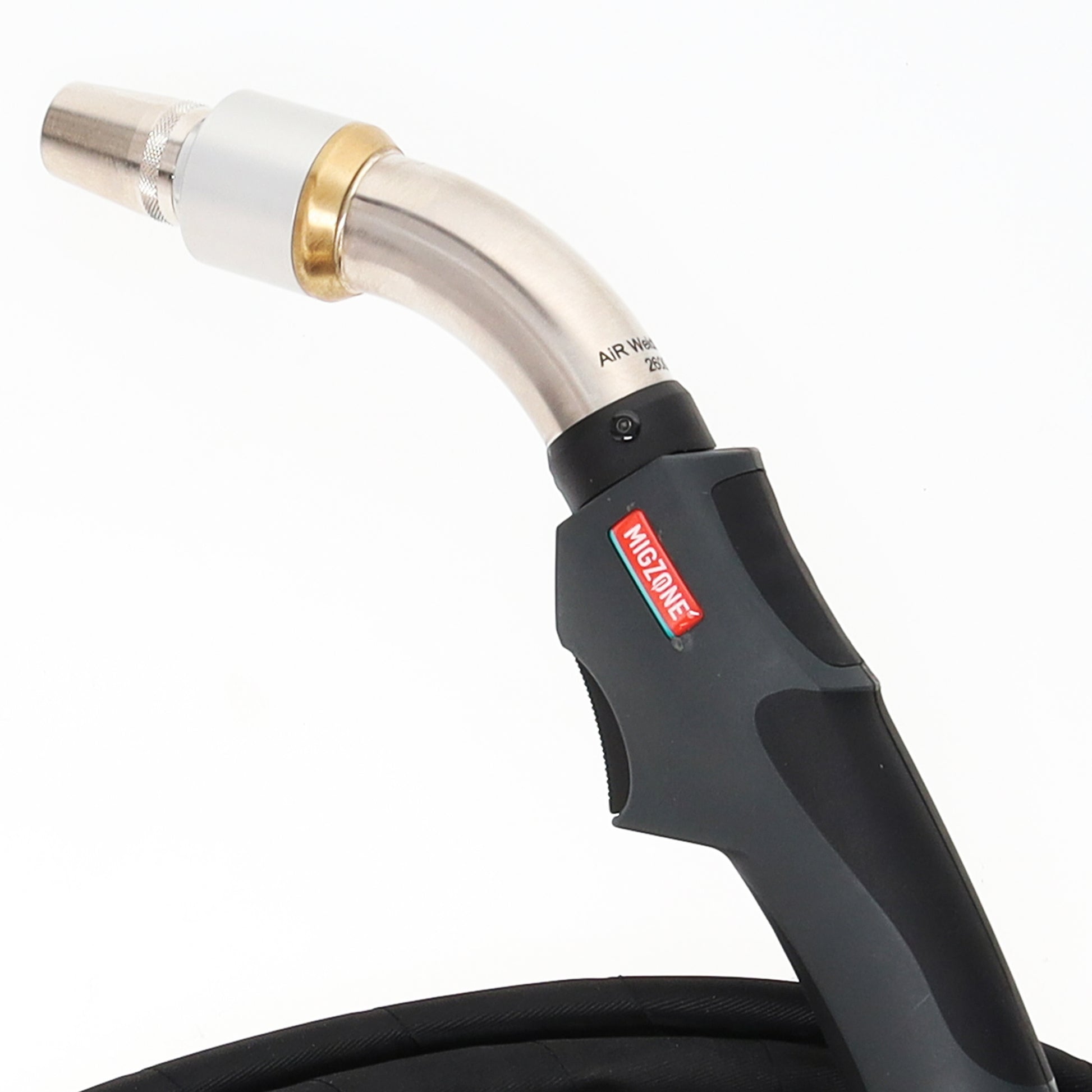

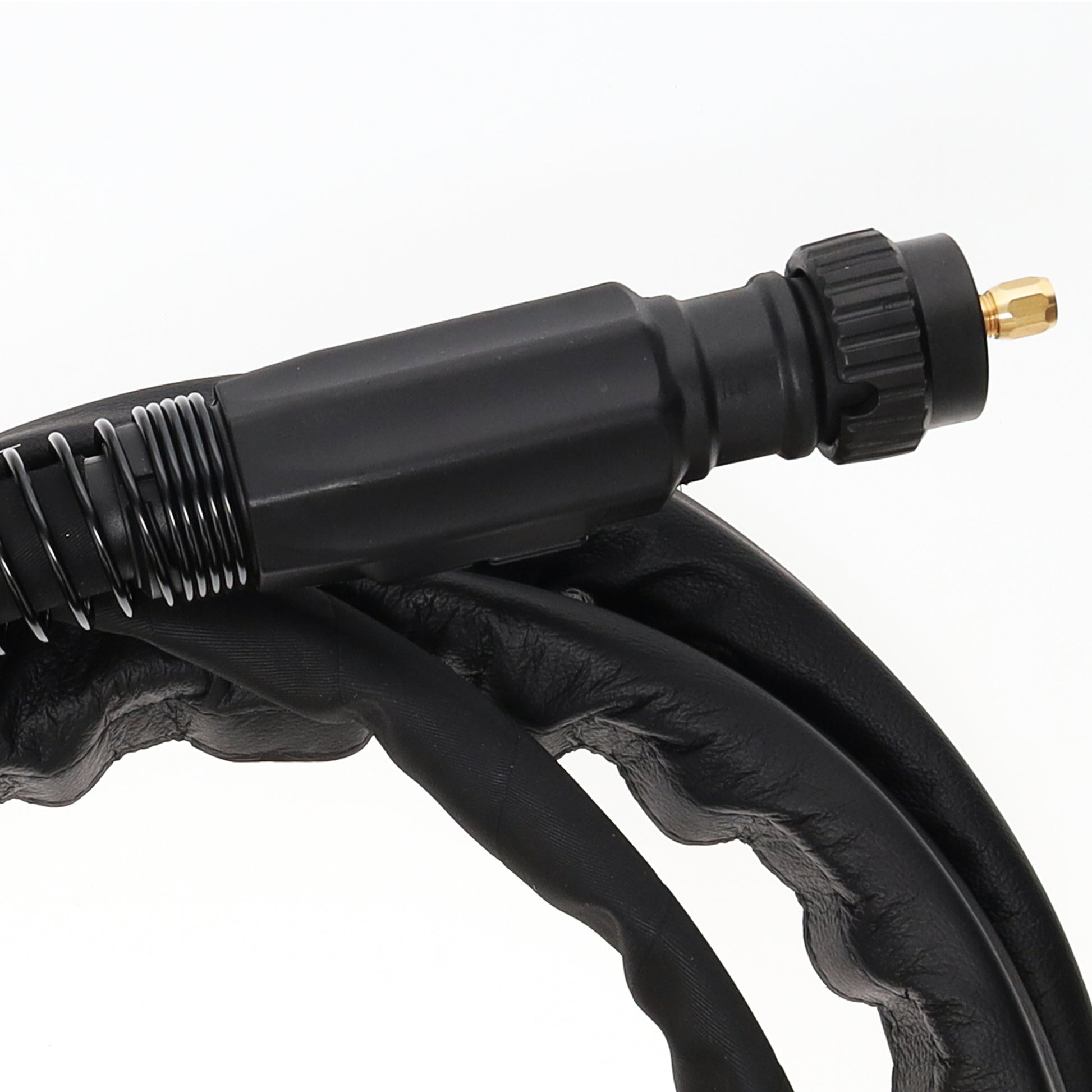

MIGZONE AiR WeldGuard MZ-AWG 260G Fume Extraction MIG Torch is a compact, air-cooled MIG/MAG welding torch with integrated fume extraction, designed to improve operator safety while maintaining welding performance. Rated at 260A with 35% duty cycle, it delivers efficient fume capture without compromising handling or arc stability.
- Integrated fume extraction system for improved air quality
- 260A performance (mixed gases) at 35% duty cycle
- Wire size range: 0.8mm – 1.2mm
- Closed flow chamber design for extended service life
- Compact, ergonomic torch for reduced operator fatigue
Read More

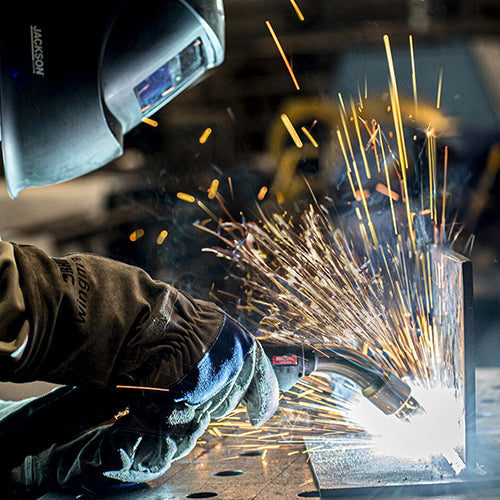

The MZ-AWG 260G is designed for fabrication workshops, production welding, and environments where fume control is critical. Its integrated extraction system significantly reduces exposure to welding fumes at the source, improving workplace safety and supporting compliance with modern extraction standards.
Featuring AiR WeldGuard® technology, the torch uses a closed flow chamber to separate airflow from the welding process. This design protects internal components, reduces wear, and extends service life while maintaining consistent extraction performance. With an extraction rate of 53m³/h and operating pressure of 11.2kPa, it delivers efficient removal of harmful particles directly at the arc.
The ergonomic design ensures comfortable handling during extended welding sessions, making it suitable for demanding applications including structural fabrication, automotive work, shipbuilding, and industrial maintenance. Its compact size also allows improved access in confined or restricted working environments.
Built to CE EN 60974-7 and ISO 21904-1 standards, the torch meets recognised requirements for welding performance and fume extraction systems. Premium components and robust construction ensure reliable operation in both light and heavy industrial applications.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- Professional-Grade Equipment
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Fume Extraction MIG Torches MIG Contact TipsTechnical Data Sheet (PDF)
Specifications
- Product Type: Fume Extraction MIG Torch
- Cooling Type: Air-Cooled
- Torch Model: MZ-AWG 260G
- Amperage Rating: 260A (Mixed Gas)
- Duty Cycle: 35%
- Wire Size Range: 0.8mm – 1.2mm
- Extraction Rate: 53m³/h
- Operating Pressure: 11.2kPa
- Contact Tip Type: M8
- Technology: AiR WeldGuard® Closed Flow System
