Description

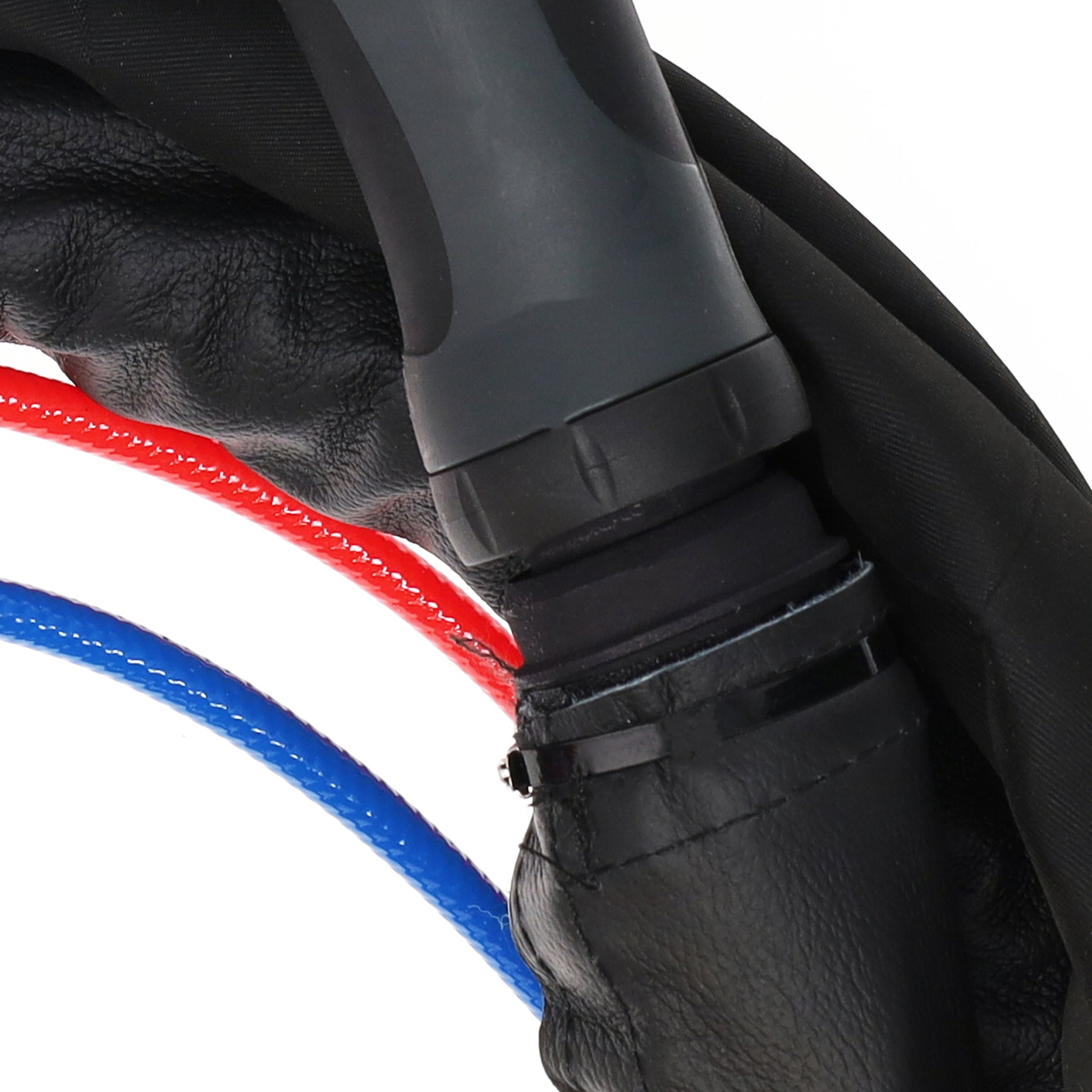

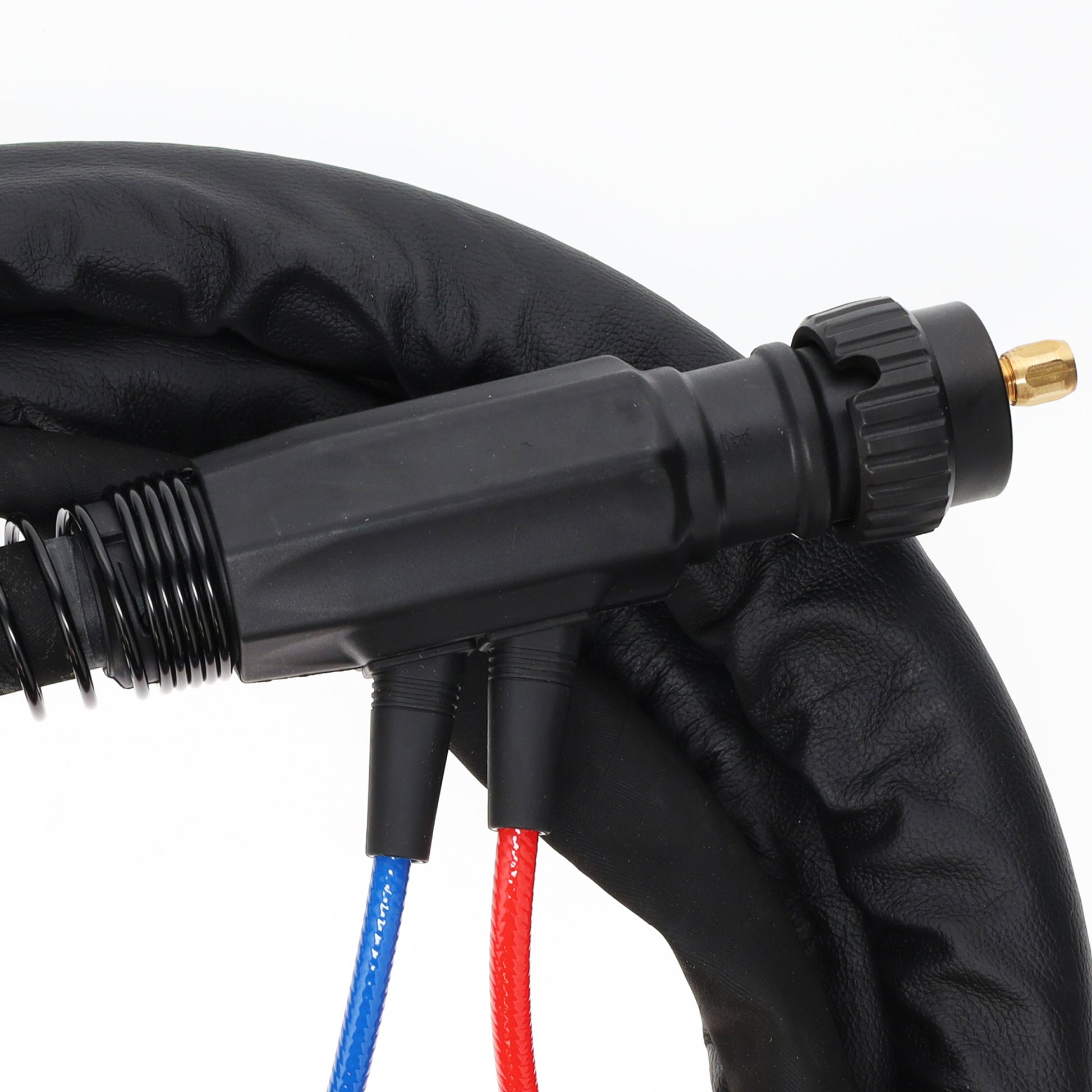

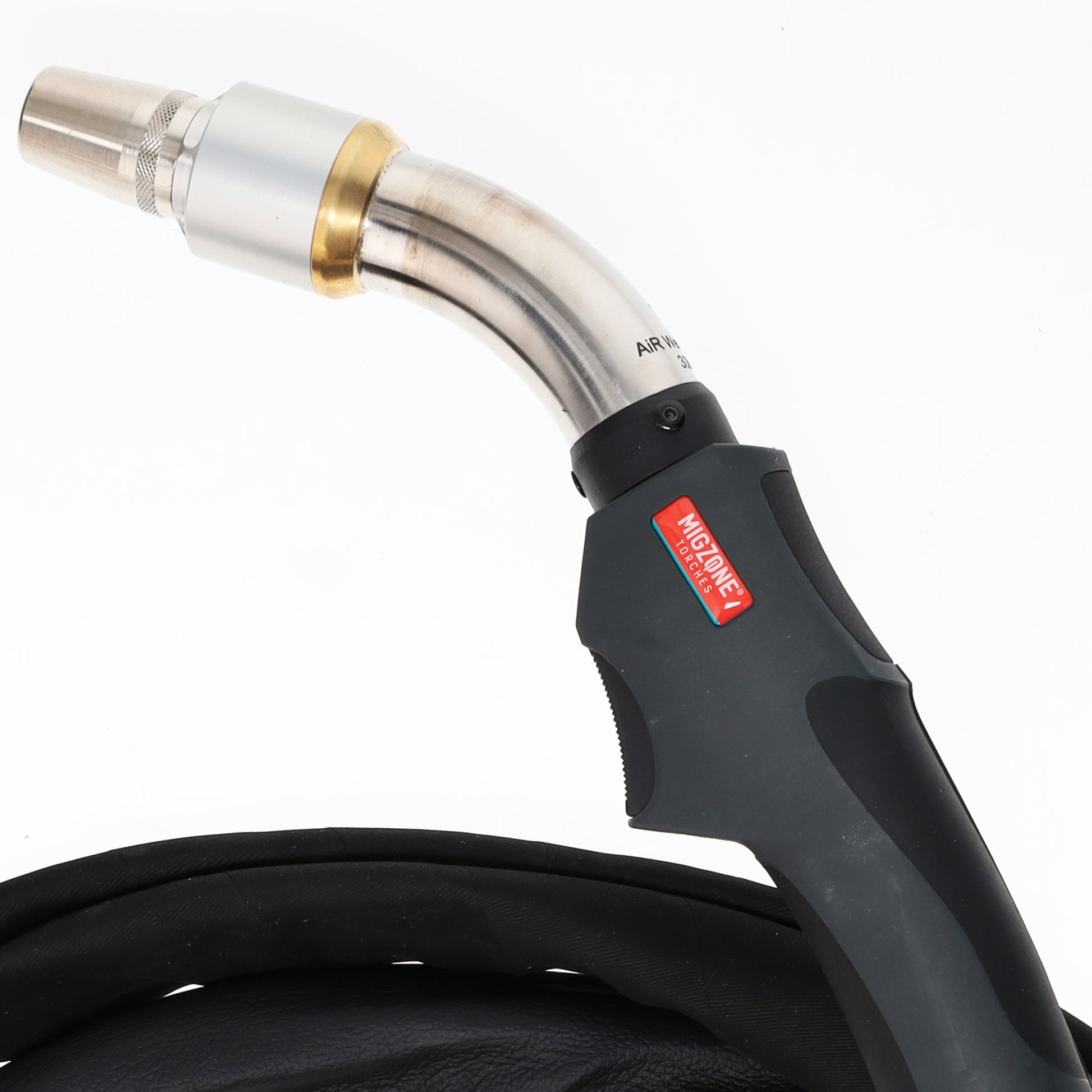

MIGZONE AiR WeldGuard MZ-AWG 300W Fume Extraction MIG Torch is a water-cooled MIG/MAG welding torch with integrated fume extraction, designed for high-output and continuous welding applications. Delivering up to 300A at 100% duty cycle, it combines powerful performance with effective fume capture for demanding industrial environments.
- 300A at 100% duty cycle (up to 400A at 40%)
- Water-cooled for continuous high-load welding
- Integrated fume extraction for improved operator safety
- Closed flow chamber design for extended service life
- AiR WeldGuard® technology for efficient fume removal
Read More
The MZ-AWG 300W is designed for heavy fabrication, structural steelwork, and high-duty-cycle production welding where both performance and fume control are critical. Its water-cooled design enables continuous operation without overheating, making it ideal for long arc-on cycles and demanding industrial applications.
Featuring AiR WeldGuard® technology, the torch incorporates a closed flow chamber that separates airflow from the welding process. This protects internal components, reduces wear, and significantly increases service life while maintaining consistent extraction performance at the arc.
The integrated fume extraction system reduces operator exposure to harmful welding fumes, improving air quality and supporting compliance with workplace safety requirements. This makes the torch suitable for environments such as shipbuilding, pressure vessel fabrication, pipeline welding, and heavy industry production lines.
Built to CE EN 60974-7 and ISO 21904-1 standards, the MZ-AWG 300W combines premium components, robust construction, and high-performance cooling to deliver reliable operation under the most demanding welding conditions.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- Professional-Grade Equipment
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Fume Extraction MIG Torches MIG Contact Tips Technical Data Sheet (PDF)
Specifications
- Product Type: Fume Extraction MIG Torch
- Cooling Type: Water-Cooled
- Torch Model: MZ-AWG 300W
- Amperage Rating: 300A (100%) / 350A (60%) / 400A (40%)
- Duty Cycle: 100% / 60% / 40%
- Wire Size Range: 0.8mm – 1.2mm
- Extraction Rate: 53m³/h
- Operating Pressure: 11.2kPa
- Contact Tip Type: M8
- Technology: AiR WeldGuard® Closed Flow System
