Description

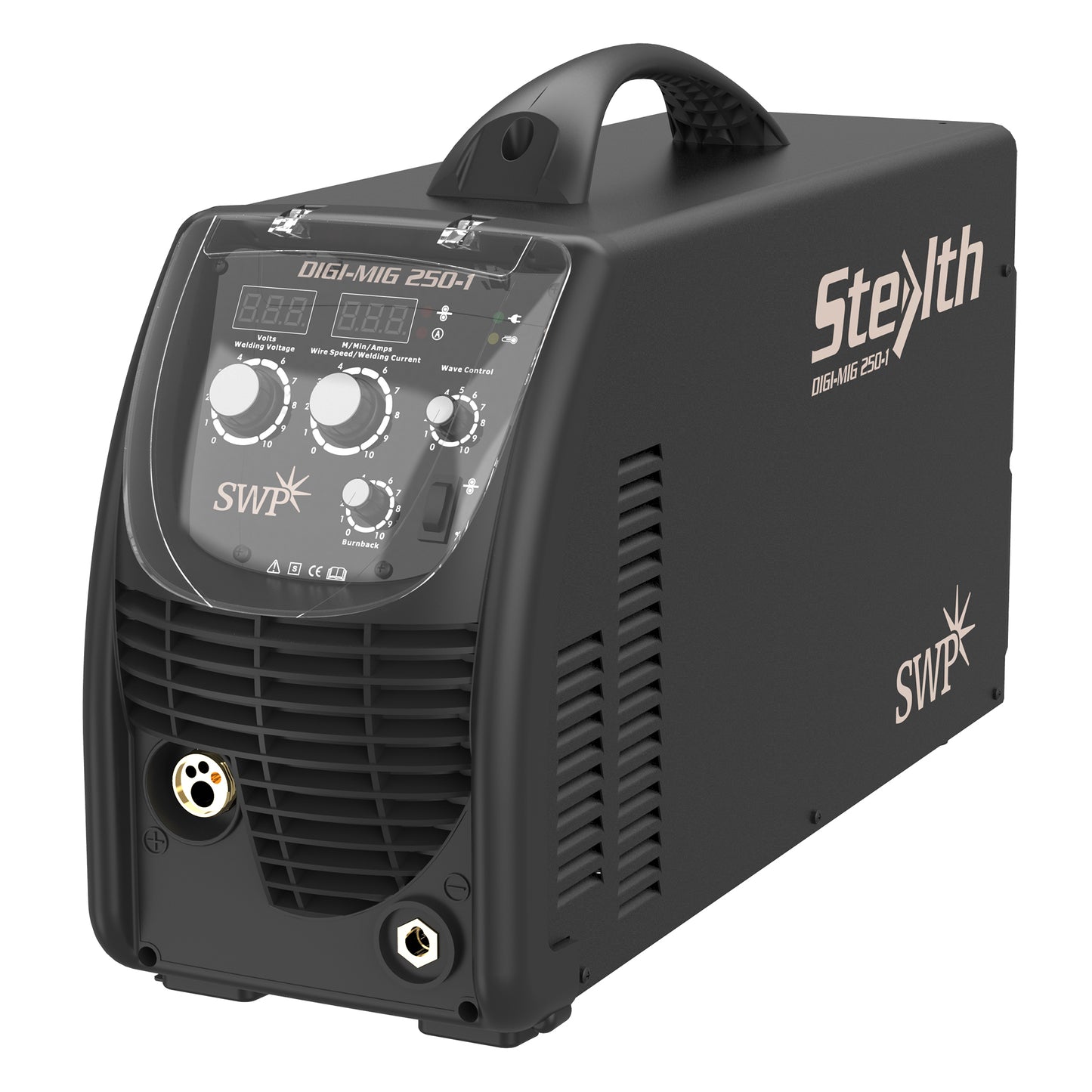

The Stealth Digi-Mig 250-1 is a powerful single phase MIG welding machine, designed with advanced waveform control for exceptional arc stability - even at low currents. Equipped with temperature, voltage, and current sensors, it offers high protection while loading up to 15kg spool and includes a 4 rolls wire feeder, burnback control, M25-3 torch, and 2068 regulator for added convenience.
- Waveform control for added arc stability - even at low currents
- Equipped with temperature, voltage and current sensors for high protection
- Capable of loading up to 15kg spool
- 4 rolls wire feeder fitted as standard
- Burnback control
- M25-3 torch and 2068 regulator included
Specifications
- Input power voltage (V): 1-230
- Frequency (Hz): 50/60
- Maximum (kVA): 11.5
- Effective input current (A): 38.7
- Welding voltage range (V): 16.5-26.5
- Maximum no load voltage (V): 47
- Duty cycle (A) (40°C 10 min): 60% @ 250
- Duty cycle (A) (40°C 10 min): 100% @ 200
- Protection class: Ip23
- Efficiency (%): 85
- Insulation class: H
- Cooling: Air
- Overall dimensions (mm): 655 x 243 x 445
- Weight (kg): 23
- Accessories included: 3m Argon hose, 3m earth return lead
