Superflow

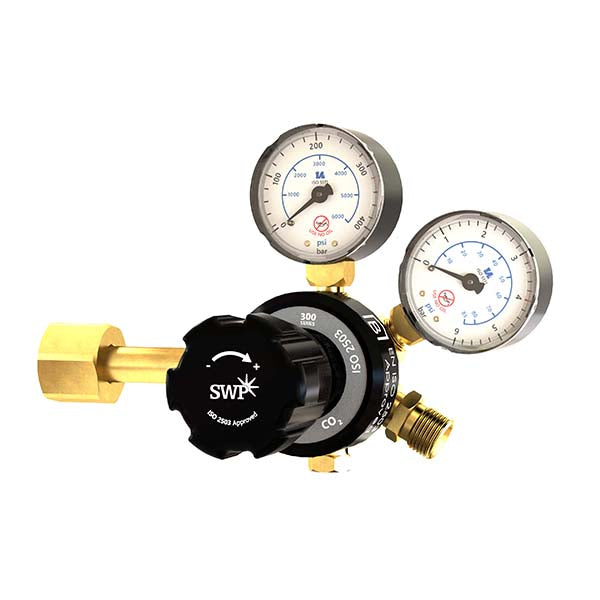

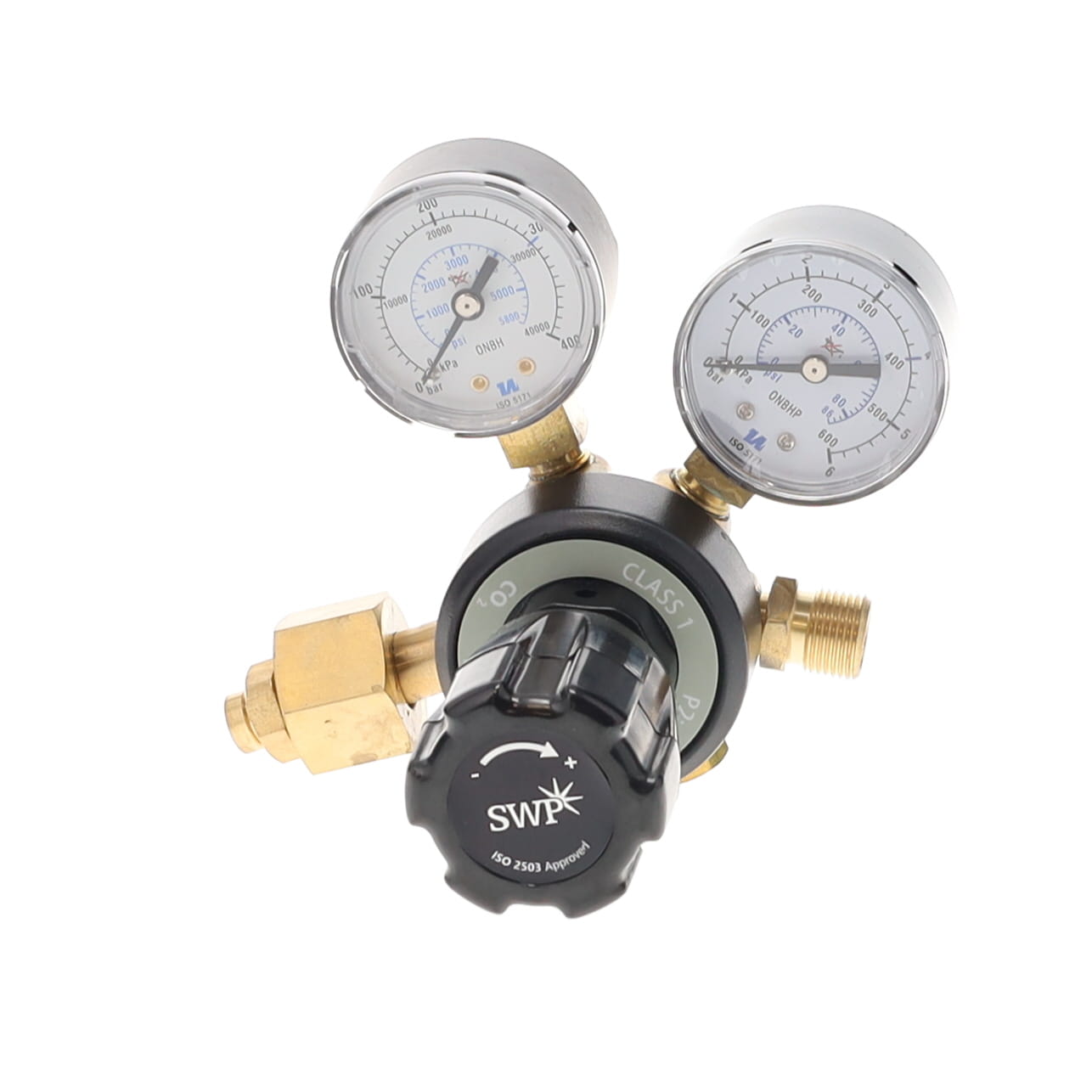

Superflow Female Fitting, Single Stage 2g CO2 4bar - Side Entry Pressure Regulator

Superflow Female Fitting, Single Stage 2g CO2 4bar - Side Entry Pressure Regulator

2047

Shipping calculated at checkout.

Superflow Female Fitting, Single Stage 2g CO2 4bar - Side Entry Pressure Regulator is a single-stage gas regulator designed for CO2 applications requiring controlled outlet pressure up to 4 bar, featuring a female inlet fitting and side entry configuration for flexible installation.

  • Single-stage regulator with outlet pressure up to 4 bar
  • BS341 No.8 female inlet connection for CO2 cylinders
  • Side entry inlet position (9 o’clock) for improved accessibility
  • Dual gauges for cylinder and outlet pressure monitoring
  • ISO 2503 compliant with full testing and inspection
Read More

Suitable for CO2 gas applications in welding, beverage, and industrial environments, this regulator provides reliable and consistent pressure control. The side entry configuration allows easier installation in confined or restricted spaces, while the female fitting ensures compatibility with BS341 No.8 CO2 cylinder connections.

Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator delivers stable performance and durability. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection. Dual gauges conforming to ISO 5171 provide accurate monitoring of both cylinder and outlet pressure.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators Process Pressure Regulators Technical Data Sheet (PDF)

View full details

Description

Superflow Female Fitting, Single Stage 2g CO2 4bar - Side Entry Pressure Regulator is a single-stage gas regulator designed for CO2 applications requiring controlled outlet pressure up to 4 bar, featuring a female inlet fitting and side entry configuration for flexible installation.

  • Single-stage regulator with outlet pressure up to 4 bar
  • BS341 No.8 female inlet connection for CO2 cylinders
  • Side entry inlet position (9 o’clock) for improved accessibility
  • Dual gauges for cylinder and outlet pressure monitoring
  • ISO 2503 compliant with full testing and inspection
Read More

Suitable for CO2 gas applications in welding, beverage, and industrial environments, this regulator provides reliable and consistent pressure control. The side entry configuration allows easier installation in confined or restricted spaces, while the female fitting ensures compatibility with BS341 No.8 CO2 cylinder connections.

Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator delivers stable performance and durability. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection. Dual gauges conforming to ISO 5171 provide accurate monitoring of both cylinder and outlet pressure.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators Process Pressure Regulators Technical Data Sheet (PDF)

Specifications

  • Product Type: Single Stage Gas Regulator
  • Gas Type: CO2
  • Outlet Pressure: 0 – 4 bar
  • Maximum Inlet Pressure: 300 bar
  • Inlet Connection: BS 341 No. 8 (Female)
  • Inlet Position: Side Entry (9 o’clock)
  • Outlet Connection: G3/8 RH
  • Gauge Type: Dual Gauge (HP & LP)
  • Gauge Standard: ISO 5171
  • Gauge Diameter: 50mm
  • Gauge Range: Bar, kPa & psi
  • Ports: G¼ (EN 837)
  • Body Material: CW614N Brass
  • Diaphragm Material: Elastomer
  • Valve Seat: Elastomer
  • Inlet Filter: Sintered Bronze
  • Control Knob: ABS
  • Testing: 100% Leak, Pressure, Function & Visual Inspection

Standards
