Description

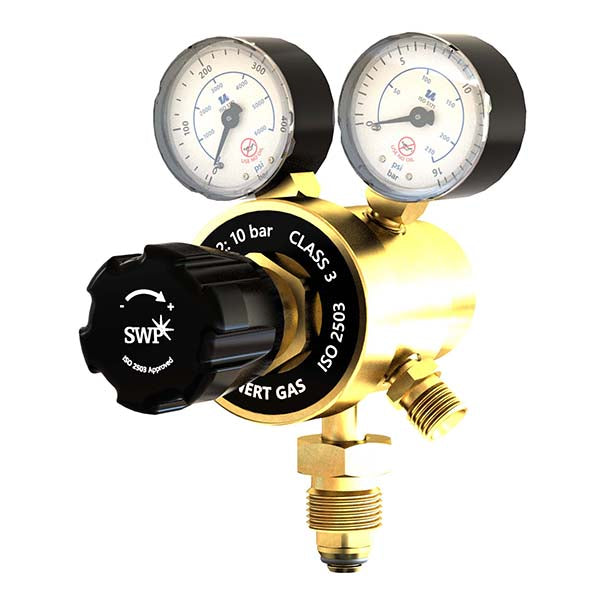

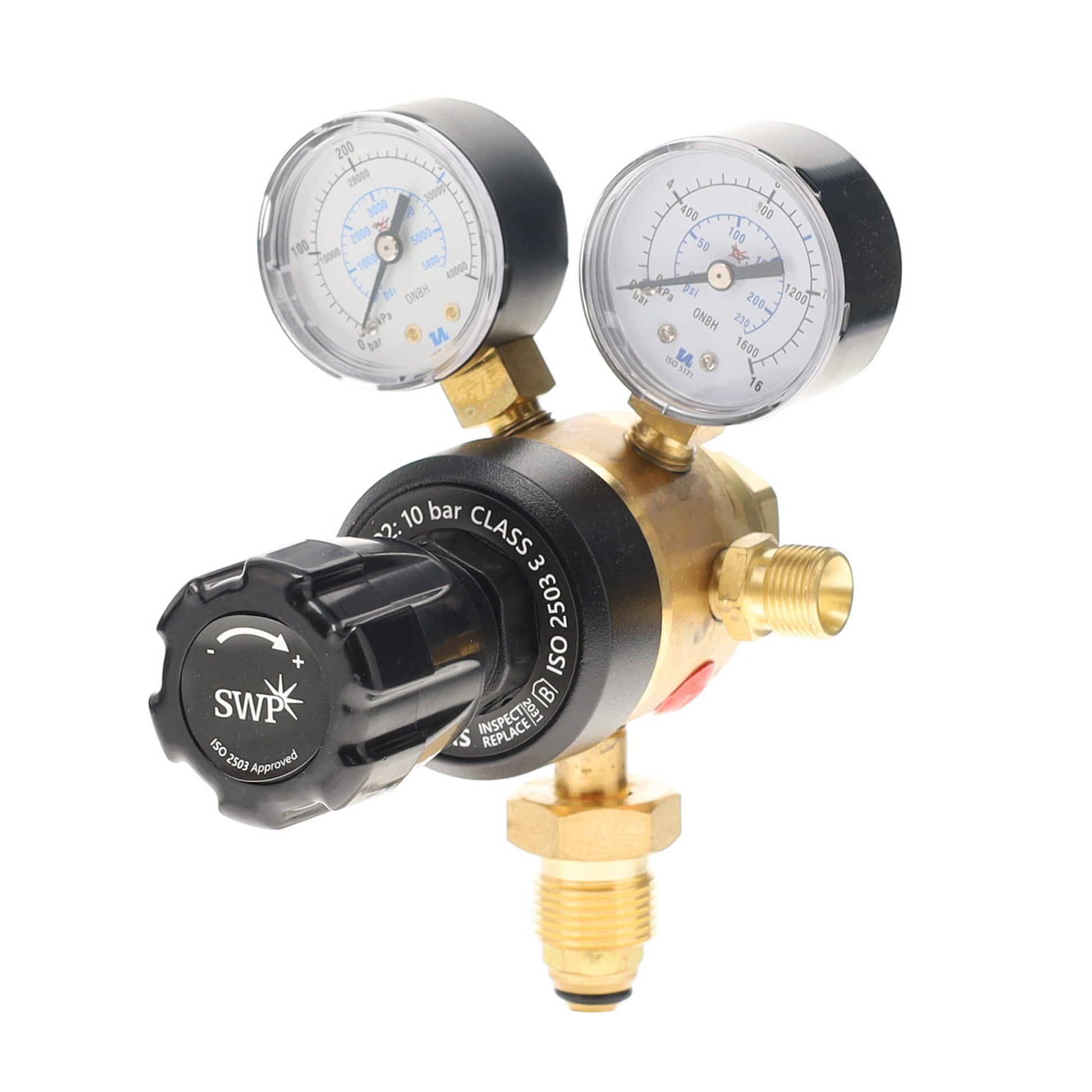

Superflow Multi Stage 2g 10 bar Inert Gas Regulator is a two-stage gas regulator designed for inert gas applications requiring precise and stable outlet pressure up to 10 bar, minimising pressure fluctuation as cylinder pressure decreases.
- Two-stage regulator for enhanced pressure stability and accuracy
- Outlet pressure range up to 10 bar
- BS341 No.3 inlet connection for inert gas cylinders
- 6 o’clock inlet position for standard vertical installation
- ISO 2503 compliant with full testing and inspection
Read More
Designed for applications where consistent and precise pressure control is critical, this two-stage regulator is ideal for laboratory use, purging, calibration, and high-precision industrial processes using inert gases. The multi-stage design significantly reduces pressure variation as cylinder contents are depleted.
Manufactured from CW614N brass with elastomer diaphragms and valve seats, the regulator provides reliable long-term performance. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection. Dual gauges conforming to ISO 5171 ensure accurate monitoring of both cylinder and outlet pressure.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- Professional-Grade Equipment
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Gas Equipment Gas Regulators Multi Stage Welding Regulators Technical Data Sheet (PDF)
Specifications
- Product Type: Two Stage Gas Regulator
- Gas Type: Inert Gas
- Outlet Pressure: 0 – 10 bar
- Maximum Inlet Pressure: 300 bar
- Inlet Connection: BS 341 No. 3
- Inlet Position: 6 o’clock
- Outlet Connection: G3/8
- Outlet Position: 3 o’clock
- Gauge Type: Dual Gauge (HP & LP)
- Gauge Standard: ISO 5171
- Gauge Diameter: 50mm
- Gauge Range: Bar, kPa & psi
- Ports: G¼ (EN 837)
- Body Material: CW614N Brass
- Diaphragm Material: Elastomer
- Valve Seat: Elastomer
- Inlet Filter: Sintered Bronze
- Control Knob: ABS
- Testing: 100% Leak, Pressure, Function & Visual Inspection
