Description

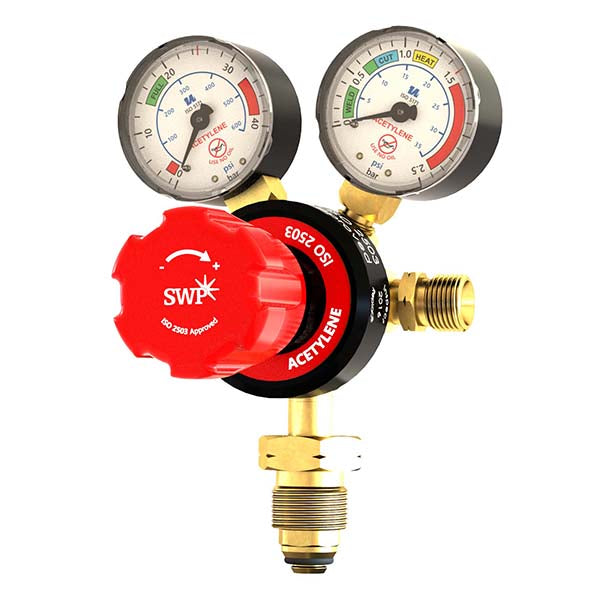

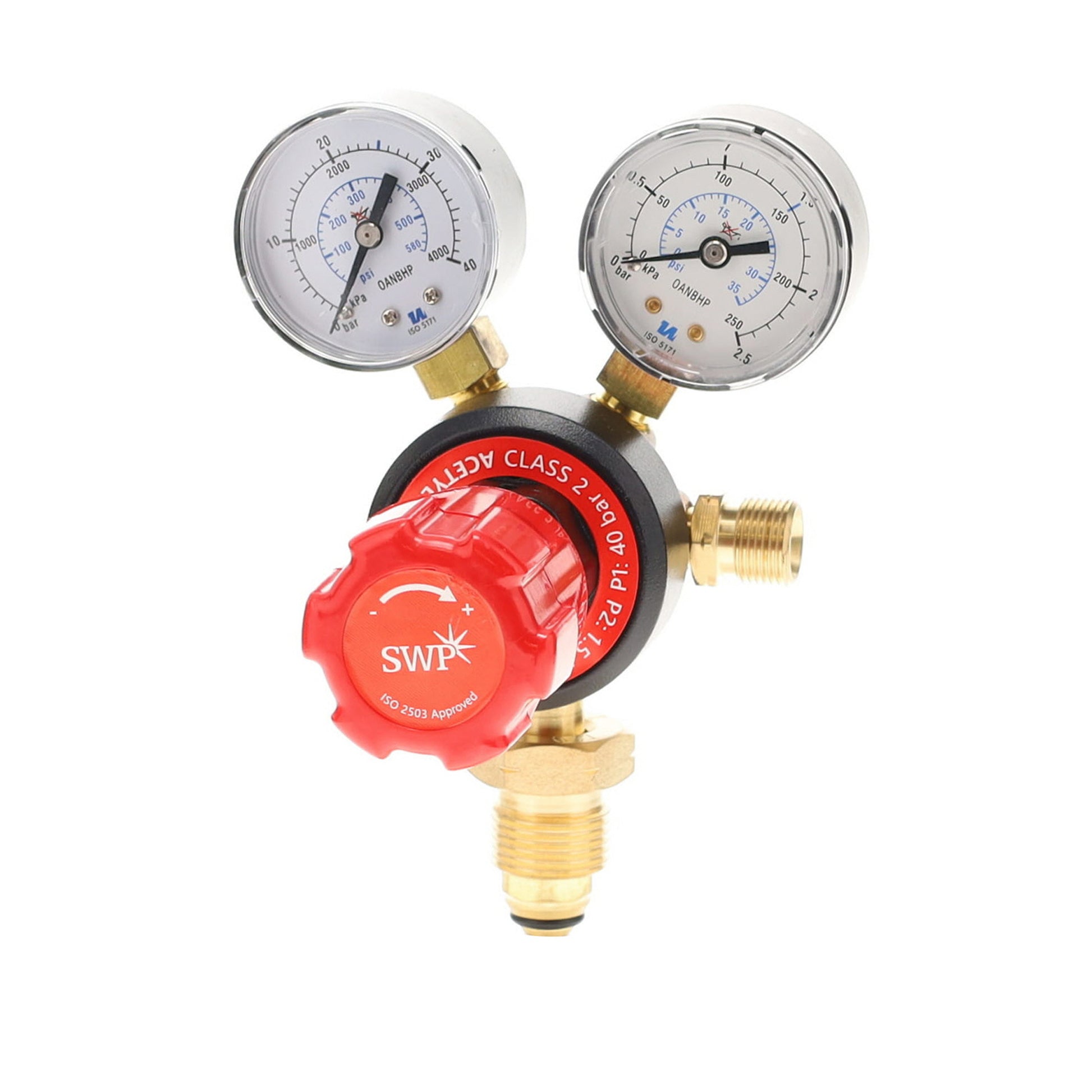

Superflow Single Stage 2g Acetylene 1.5bar Regulator is a single-stage gas regulator designed for acetylene use in cutting and heating applications, delivering controlled outlet pressure up to 1.5 bar for safe and consistent gas flow.
- Single-stage regulator with outlet pressure up to 1.5 bar
- Designed for acetylene cutting and heating applications
- BS341 No.2 inlet connection for acetylene cylinders
- Left-hand (LH) outlet thread for fuel gas safety compliance
- ISO 2503 compliant with full testing and inspection
Read More
Suitable for oxy-fuel cutting, heating, and welding applications, this regulator provides stable acetylene pressure control in workshop, fabrication, and industrial environments. The low outlet pressure range ensures safe operation in accordance with acetylene handling requirements.
Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator ensures durability and consistent performance. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection. Dual gauges conforming to ISO 5171 provide accurate monitoring of cylinder and outlet pressure.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- Professional-Grade Equipment
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Gas Equipment Gas Regulators Cutting & Heating Regulators Technical Data Sheet (PDF)
Specifications
- Product Type: Single Stage Gas Regulator
- Gas Type: Acetylene
- Outlet Pressure: 0 – 1.5 bar
- Maximum Inlet Pressure: 23 bar
- Inlet Connection: BS 341 No. 2
- Inlet Position: 6 o’clock
- Outlet Connection: G3/8 LH
- Outlet Position: 3 o’clock
- Gauge Type: Dual Gauge (HP & LP)
- Gauge Standard: ISO 5171
- Gauge Diameter: 50mm
- Gauge Range: Bar, kPa & psi
- Ports: G¼ (EN 837)
- Body Material: CW614N Brass
- Diaphragm Material: Elastomer
- Valve Seat: Elastomer
- Inlet Filter: Sintered Bronze
- Control Knob: ABS
- Testing: 100% Leak, Pressure, Function & Visual Inspection
