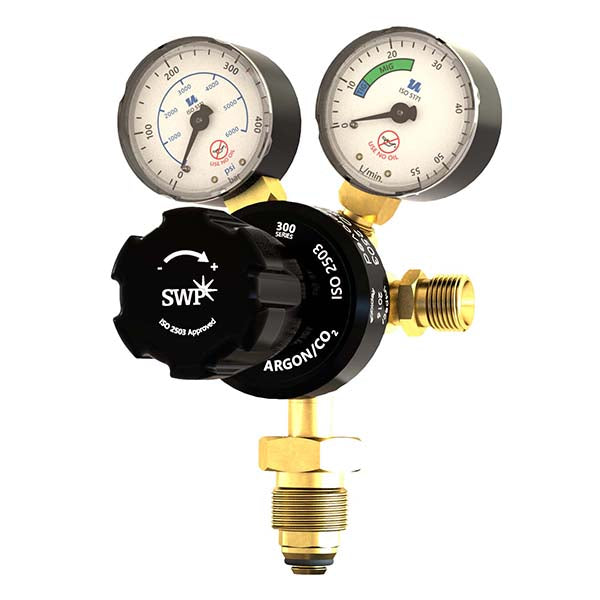

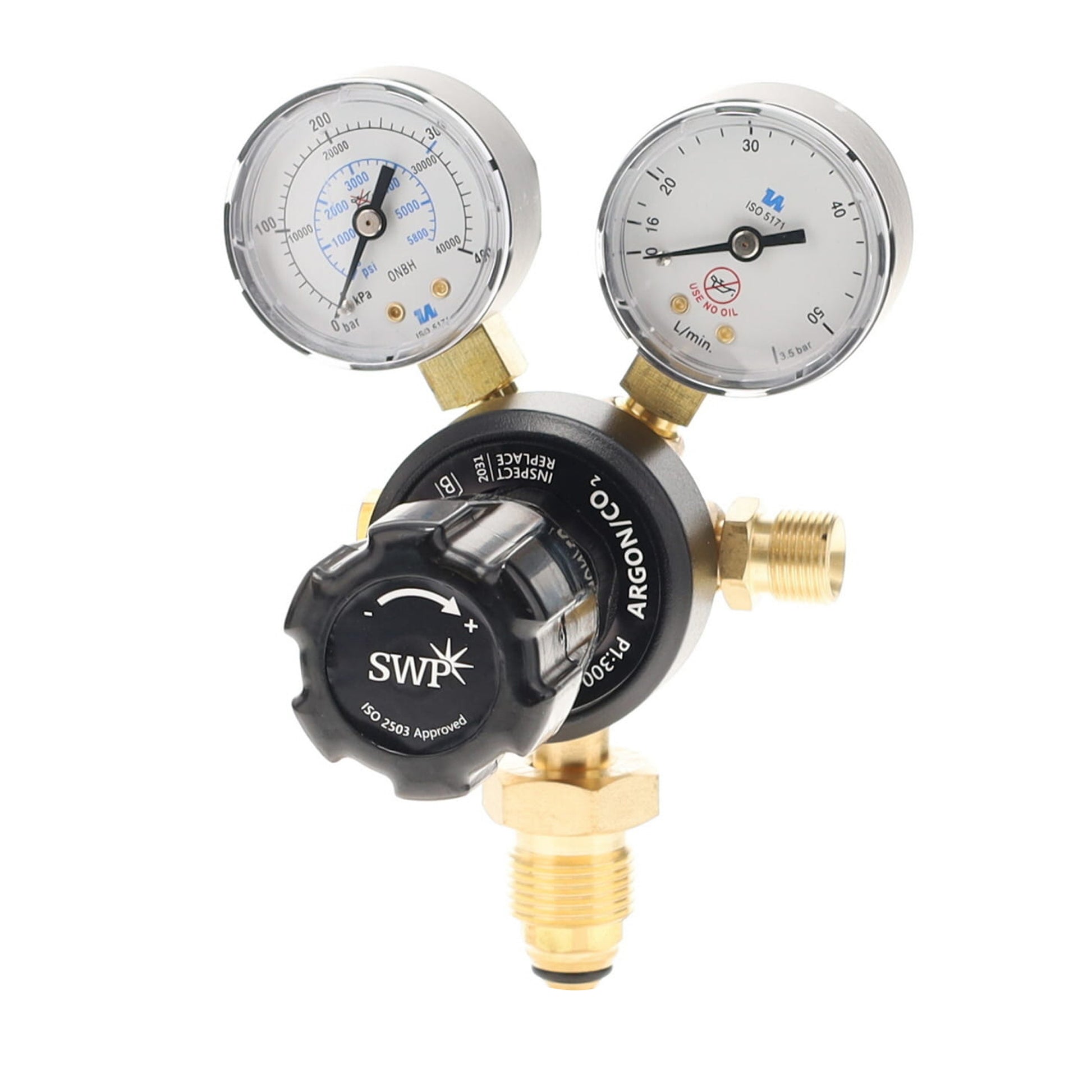

Superflow Single Stage 2g Argon/C02 45 lpm MIG Welding Regulator

Superflow Single Stage 2g Argon/C02 45 lpm MIG Welding Regulator

2043

Shipping calculated at checkout.

Superflow Single Stage 2g Argon/C02 45 lpm MIG Welding Regulator is a single-stage gas regulator designed for MIG welding applications using Argon and CO2 shielding gases, delivering controlled gas flow up to 45 litres per minute with a standard bottom entry configuration.

  • Single-stage regulator with flow rate up to 45 LPM
  • BS341 No.3 inlet connection for Argon/CO2 cylinders
  • 6 o’clock inlet position for standard vertical installation
  • Dual gauges with multi-scale pressure and flow readings
  • ISO 2503 compliant with full testing and inspection
Read More

Suitable for MIG welding applications across fabrication, maintenance, and production environments, this regulator is designed for use with Argon/CO2 shielding gas mixtures. The 6 o’clock inlet position provides a traditional bottom entry layout, supporting straightforward installation and hose routing.

Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator provides consistent gas delivery and durability in demanding environments. A sintered bronze inlet filter protects internal components, while optimised internal flow paths reduce turbulence. Each unit is fully tested with 100% leak, pressure, function, and visual inspection, and features ISO 5171 compliant gauges for accurate pressure and flow monitoring.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators MIG Welding Regulators Technical Data Sheet (PDF)

View full details

Description

Superflow Single Stage 2g Argon/C02 45 lpm MIG Welding Regulator is a single-stage gas regulator designed for MIG welding applications using Argon and CO2 shielding gases, delivering controlled gas flow up to 45 litres per minute with a standard bottom entry configuration.

  • Single-stage regulator with flow rate up to 45 LPM
  • BS341 No.3 inlet connection for Argon/CO2 cylinders
  • 6 o’clock inlet position for standard vertical installation
  • Dual gauges with multi-scale pressure and flow readings
  • ISO 2503 compliant with full testing and inspection
Read More

Suitable for MIG welding applications across fabrication, maintenance, and production environments, this regulator is designed for use with Argon/CO2 shielding gas mixtures. The 6 o’clock inlet position provides a traditional bottom entry layout, supporting straightforward installation and hose routing.

Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator provides consistent gas delivery and durability in demanding environments. A sintered bronze inlet filter protects internal components, while optimised internal flow paths reduce turbulence. Each unit is fully tested with 100% leak, pressure, function, and visual inspection, and features ISO 5171 compliant gauges for accurate pressure and flow monitoring.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators MIG Welding Regulators Technical Data Sheet (PDF)

Specifications

  • Product Type: Single Stage Gas Regulator
  • Gas Type: Argon / CO2
  • Flow Rate: 0 – 45 LPM
  • Maximum Inlet Pressure: 300 bar
  • Inlet Connection: BS 341 No. 3
  • Inlet Position: 6 o’clock
  • Outlet Connection: G3/8 RH
  • Outlet Position: 3 o’clock
  • Gauge Type: Dual Gauge (HP & LP)
  • Gauge Standard: ISO 5171
  • Gauge Diameter: 50mm
  • Gauge Range: Bar, kPa & psi (HP) / LPM (LP)
  • Ports: G¼ (EN 837)
  • Body Material: CW614N Brass
  • Diaphragm Material: Elastomer
  • Valve Seat: Elastomer
  • Inlet Filter: Sintered Bronze
  • Control Knob: ABS
  • Testing: 100% Leak, Pressure, Function & Visual Inspection

Standards
