Superflow

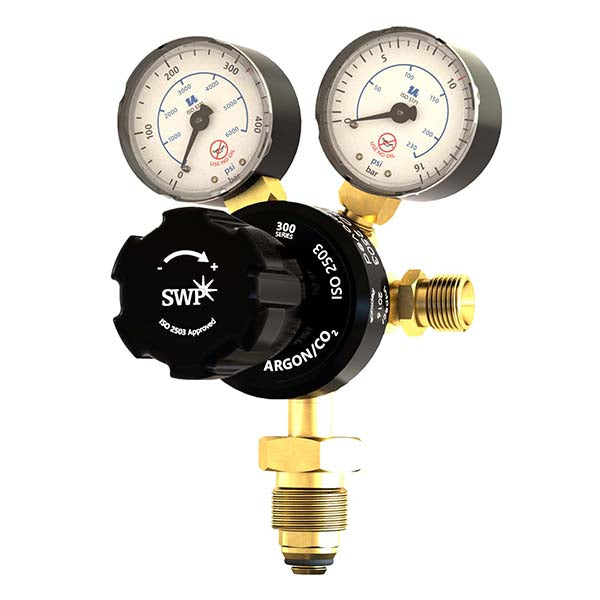

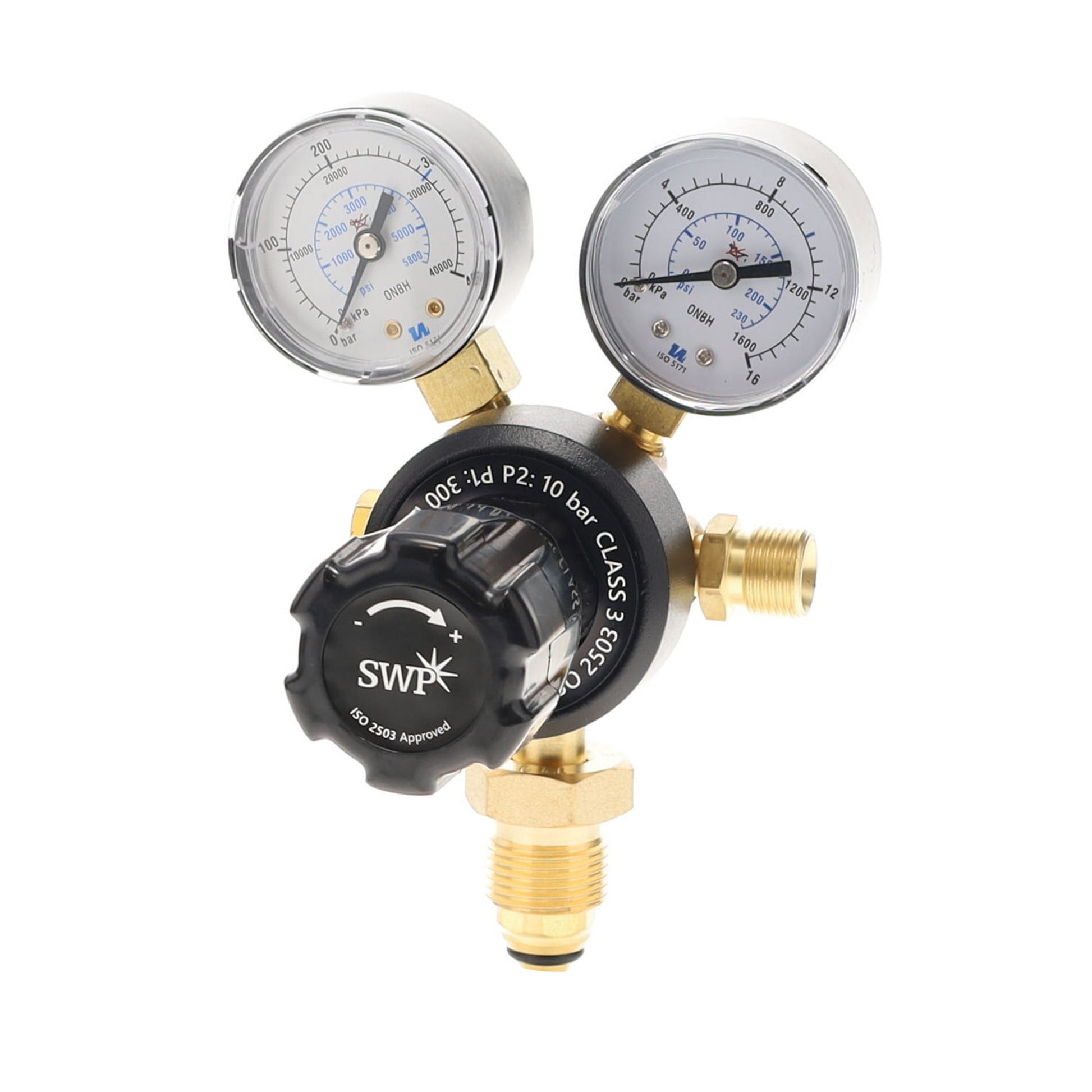

Superflow Single Stage 2g Argon/Co2 10bar Pressure Regulator

Superflow Single Stage 2g Argon/Co2 10bar Pressure Regulator

2051

Shipping calculated at checkout.

Superflow Single Stage 2g Argon/Co2 10bar Pressure Regulator is a single-stage gas regulator designed for applications requiring controlled outlet pressure up to 10 bar when using Argon and CO2 shielding gases, suitable for welding, purging, and industrial gas supply setups.

  • Single-stage regulator with outlet pressure up to 10 bar
  • BS341 No.3 inlet connection for Argon/CO2 cylinders
  • 6 o’clock inlet position for standard vertical installation
  • Dual gauges for cylinder pressure and outlet pressure monitoring
  • ISO 2503 compliant with full testing and inspection
Read More

Designed for applications where precise pressure control is required rather than flow rate measurement, this regulator is suitable for welding, purging, and various industrial gas processes using Argon/CO2 mixtures. The standard 6 o’clock inlet position supports straightforward installation on vertical cylinders.

Manufactured with a CW614N brass body and elastomer diaphragm, the regulator provides stable and consistent outlet pressure. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual testing. Dual gauges conforming to ISO 5171 allow accurate monitoring of both cylinder and outlet pressure.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators Process Pressure Regulators Technical Data Sheet (PDF)

View full details

Description

Superflow Single Stage 2g Argon/Co2 10bar Pressure Regulator is a single-stage gas regulator designed for applications requiring controlled outlet pressure up to 10 bar when using Argon and CO2 shielding gases, suitable for welding, purging, and industrial gas supply setups.

  • Single-stage regulator with outlet pressure up to 10 bar
  • BS341 No.3 inlet connection for Argon/CO2 cylinders
  • 6 o’clock inlet position for standard vertical installation
  • Dual gauges for cylinder pressure and outlet pressure monitoring
  • ISO 2503 compliant with full testing and inspection
Read More

Designed for applications where precise pressure control is required rather than flow rate measurement, this regulator is suitable for welding, purging, and various industrial gas processes using Argon/CO2 mixtures. The standard 6 o’clock inlet position supports straightforward installation on vertical cylinders.

Manufactured with a CW614N brass body and elastomer diaphragm, the regulator provides stable and consistent outlet pressure. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual testing. Dual gauges conforming to ISO 5171 allow accurate monitoring of both cylinder and outlet pressure.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators Process Pressure Regulators Technical Data Sheet (PDF)

Specifications

  • Product Type: Single Stage Gas Regulator
  • Gas Type: Argon / CO2
  • Outlet Pressure: 0 – 10 bar
  • Maximum Inlet Pressure: 300 bar
  • Inlet Connection: BS 341 No. 3
  • Inlet Position: 6 o’clock
  • Outlet Connection: G3/8 RH
  • Outlet Position: 3 o’clock
  • Gauge Type: Dual Gauge (HP & LP)
  • Gauge Standard: ISO 5171
  • Gauge Diameter: 50mm
  • Gauge Range: Bar, kPa & psi
  • Ports: G¼ (EN 837)
  • Body Material: CW614N Brass
  • Diaphragm Material: Elastomer
  • Valve Seat: Elastomer
  • Inlet Filter: Sintered Bronze
  • Control Knob: ABS
  • Testing: 100% Leak, Pressure, Function & Visual Inspection

Standards
