Description

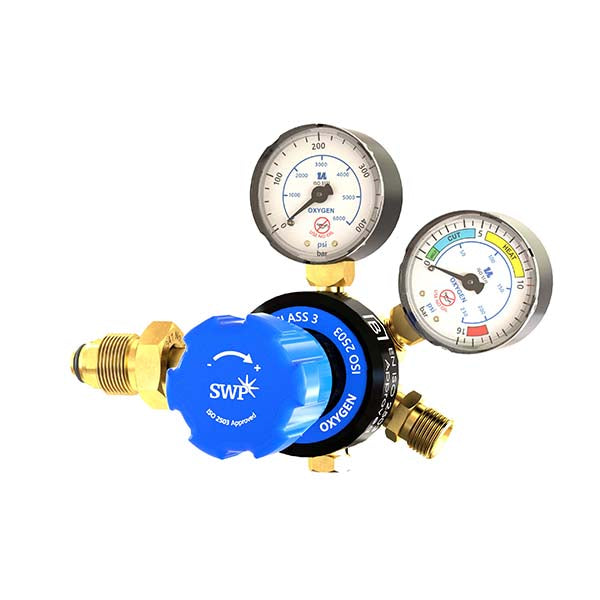

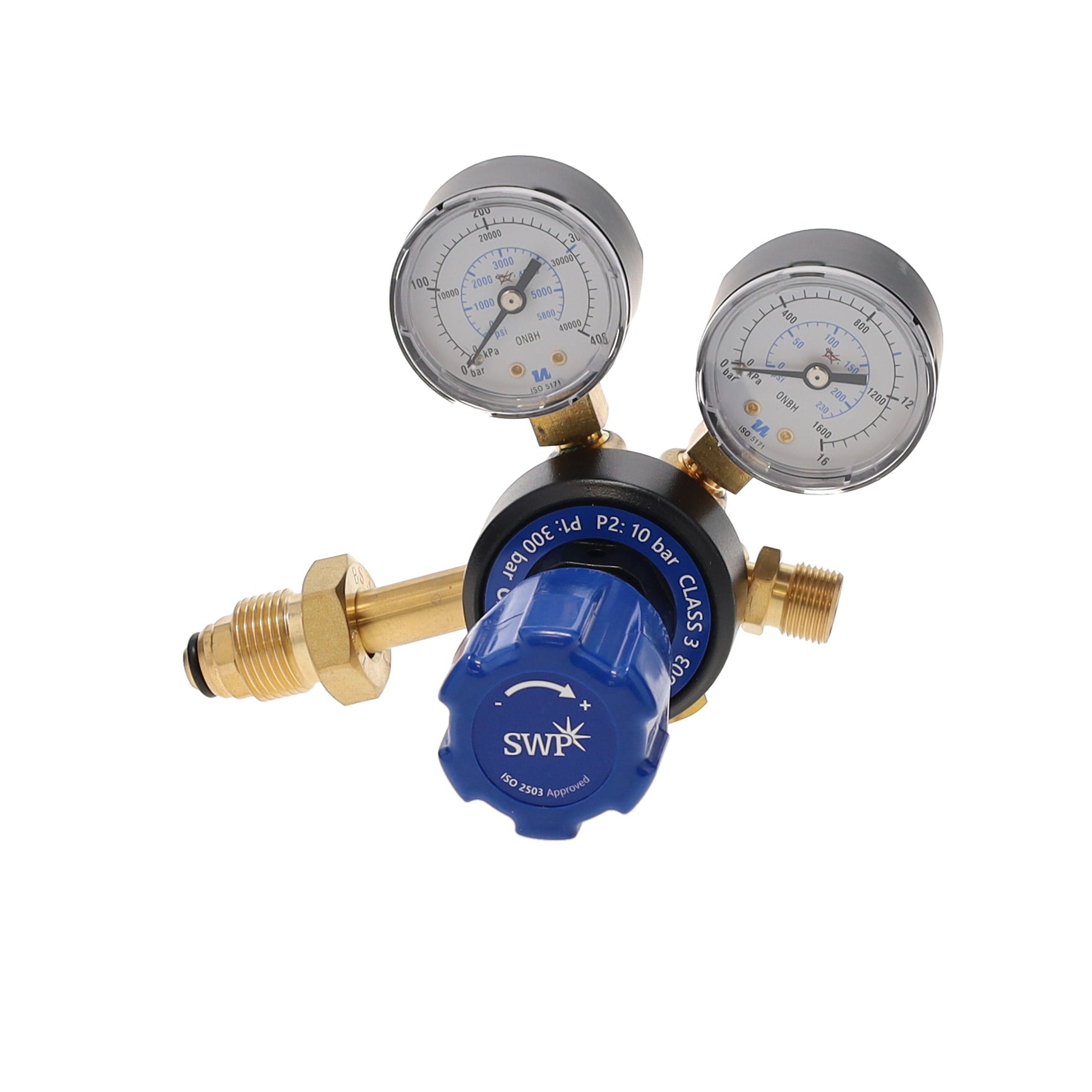

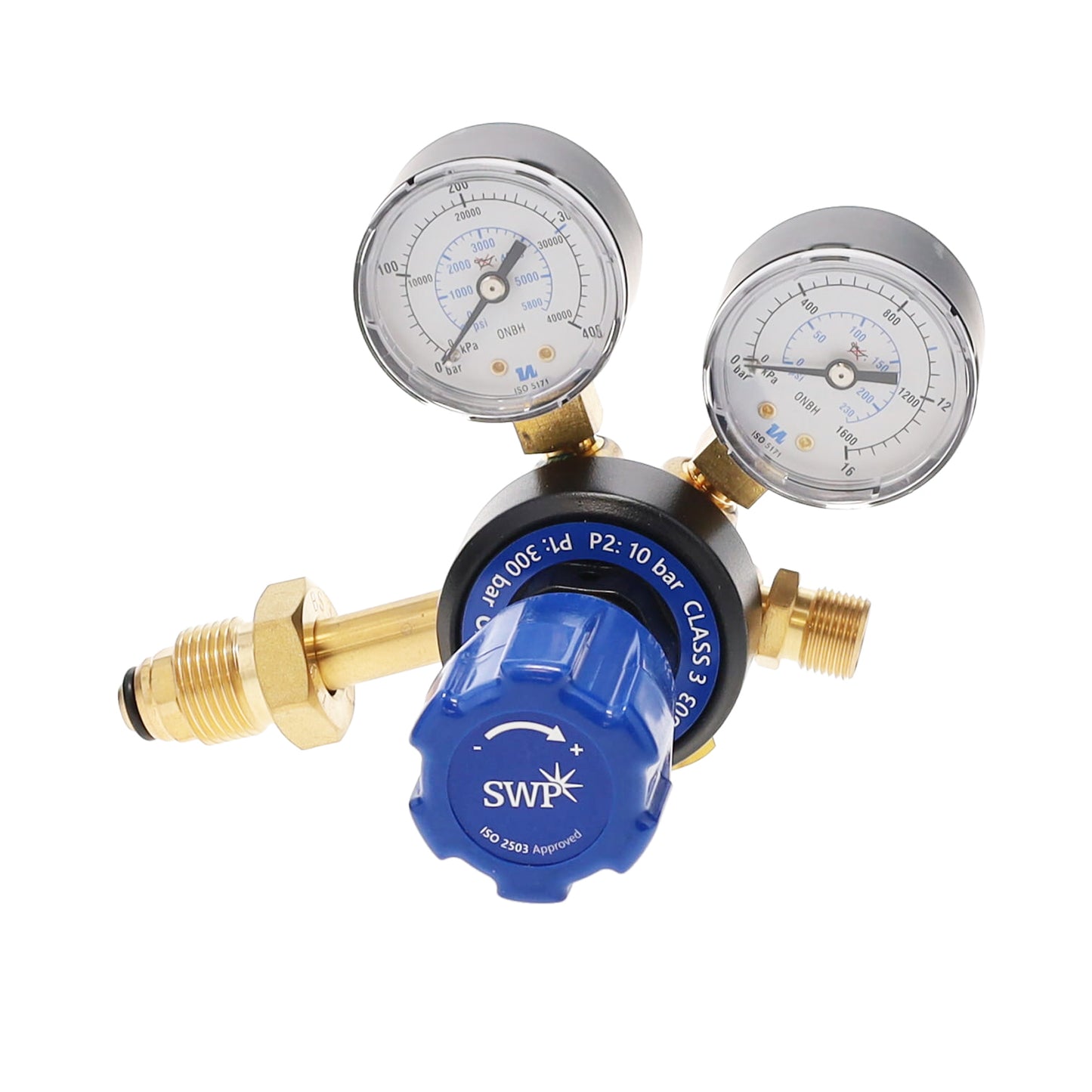

Superflow Single Stage 2g Oxygen - Side Entry Regulator is a single-stage gas regulator designed for oxygen use in cutting and heating applications, delivering controlled outlet pressure up to 10 bar with a side entry configuration for improved accessibility.
- Single-stage regulator with outlet pressure up to 10 bar
- Side entry inlet position (9 o’clock) for improved access and installation
- BS341 No.3 inlet connection for oxygen cylinders
- Dual gauges for cylinder and outlet pressure monitoring
- ISO 2503 compliant with full testing and inspection
Read More
Designed for oxy-fuel cutting, heating, and welding applications, this regulator provides stable oxygen pressure control in workshop, fabrication, and industrial environments. The side entry configuration allows easier installation in confined spaces and improved hose routing.
Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator ensures durability and consistent performance. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection. Dual gauges conforming to ISO 5171 provide accurate monitoring of cylinder and outlet pressure.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- Professional-Grade Equipment
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Gas Equipment Gas Regulators Cutting & Heating Regulators Technical Data Sheet (PDF)
Specifications
- Product Type: Single Stage Gas Regulator
- Gas Type: Oxygen
- Outlet Pressure: 0 – 10 bar
- Maximum Inlet Pressure: 300 bar
- Inlet Connection: BS 341 No. 3
- Inlet Position: Side Entry (9 o’clock)
- Outlet Connection: G3/8
- Gauge Type: Dual Gauge (HP & LP)
- Gauge Standard: ISO 5171
- Gauge Diameter: 50mm
- Gauge Range: Bar, kPa & psi
- Ports: G¼ (EN 837)
- Body Material: CW614N Brass
- Diaphragm Material: Elastomer
- Valve Seat: Elastomer
- Inlet Filter: Sintered Bronze
- Control Knob: ABS
- Testing: 100% Leak, Pressure, Function & Visual Inspection
