Description

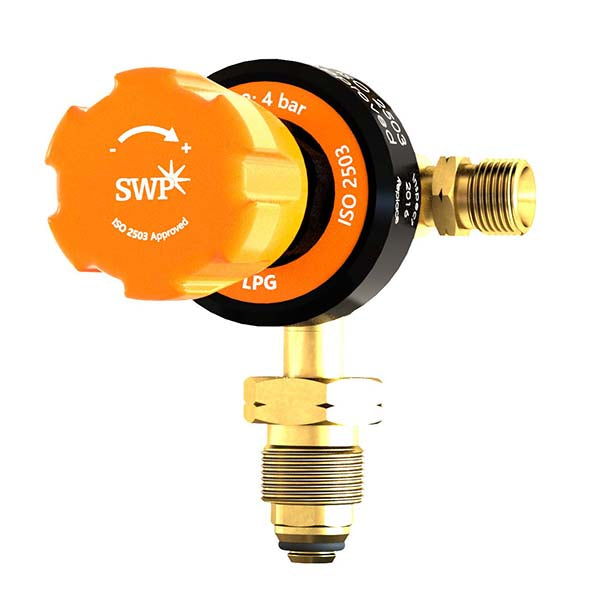

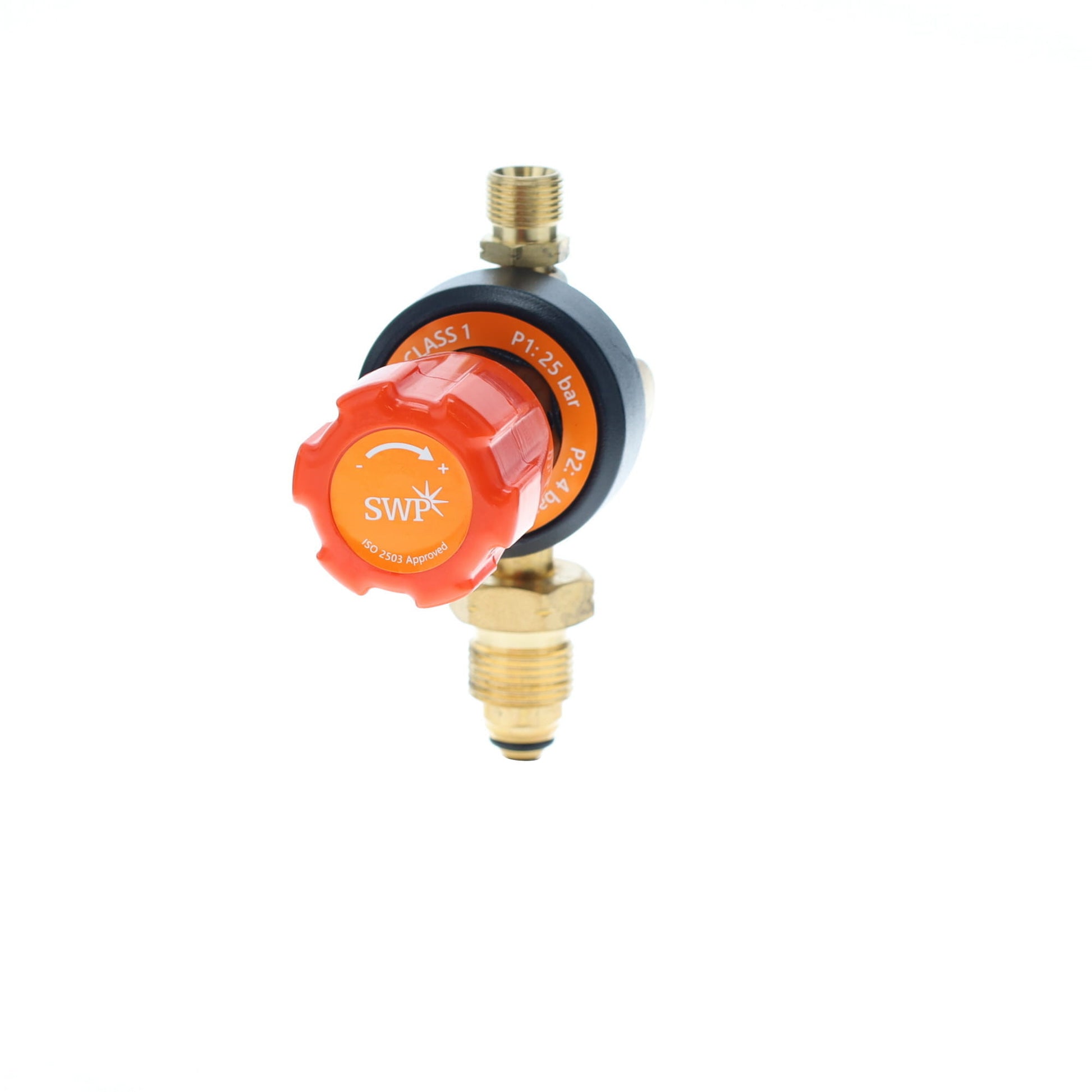

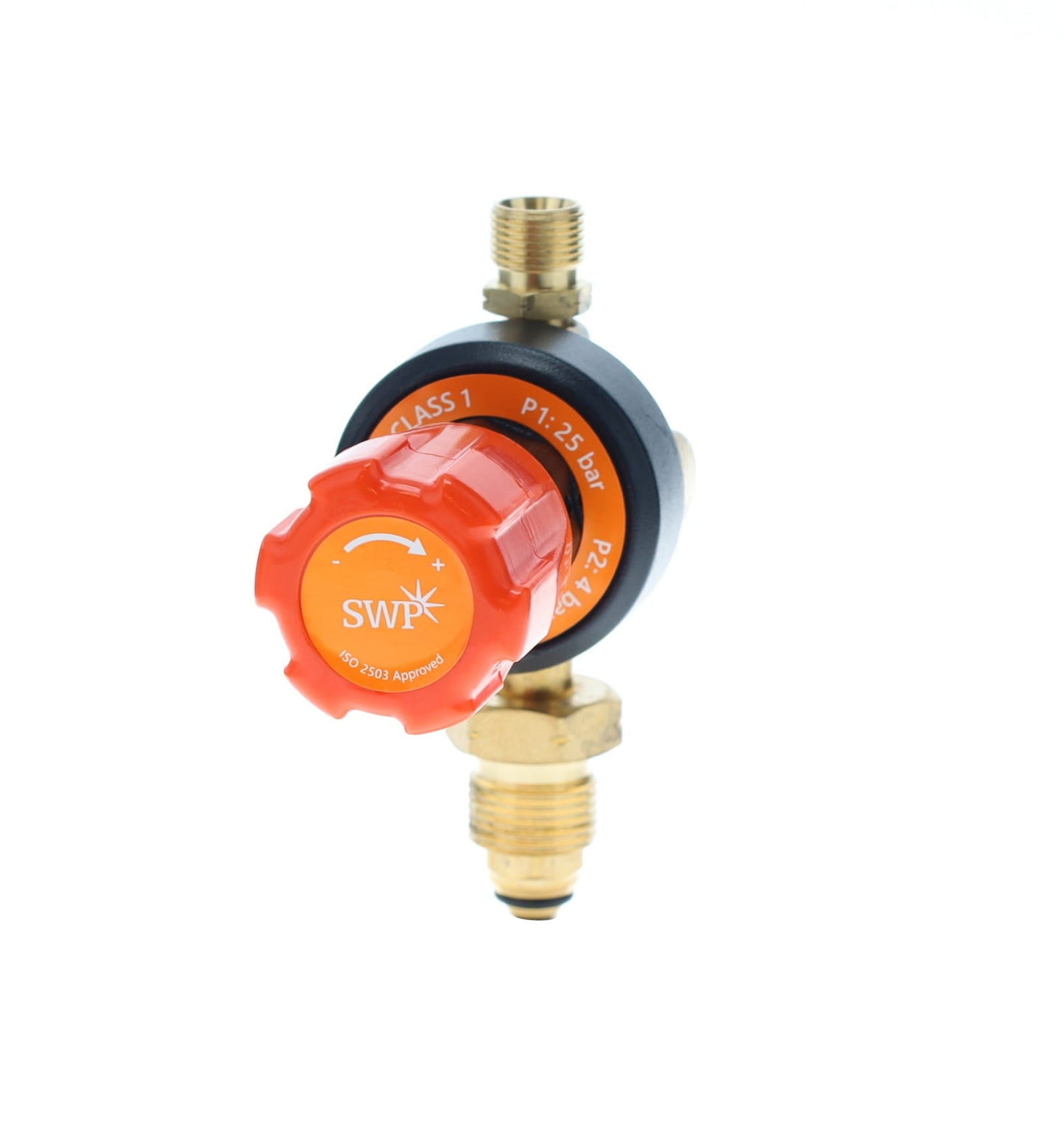

Superflow Single Stage Plugged Propane 4bar Regulator is a single-stage gas regulator designed for propane use in cutting and heating applications, delivering controlled outlet pressure up to 4 bar in a gauge-free configuration for system integration and fixed installations.
- Gauge-free (plugged) design for system integration
- Single-stage regulator with outlet pressure up to 4 bar
- BS341 No.2 inlet connection for propane cylinders
- Left-hand (LH) outlet thread for fuel gas safety compliance
- ISO 2503 compliant with full testing and inspection
Read More
Designed for propane-based oxy-fuel cutting and heating systems, this regulator is ideal for installations where pressure monitoring is handled externally or centrally. The plugged design provides a more compact and durable solution for fixed systems and production environments.
Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator ensures reliable and consistent performance. The left-hand outlet connection complies with fuel gas safety standards, preventing incorrect connections. Each unit undergoes 100% leak, pressure, function, and visual inspection for assured quality and durability.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- Professional-Grade Equipment
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Gas Equipment Gas Regulators Cutting & Heating Regulators Technical Data Sheet (PDF)
Specifications
- Product Type: Single Stage Gas Regulator (Plugged)
- Gas Type: Propane
- Outlet Pressure: 0 – 4 bar
- Maximum Inlet Pressure: 300 bar
- Inlet Connection: BS 341 No. 2
- Inlet Position: Side Entry (9 o’clock)
- Outlet Connection: G3/8 LH
- Outlet Position: 3 o’clock
- Gauge Type: No Gauges (Plugged Ports)
- Ports: G¼ (EN 837)
- Body Material: CW614N Brass
- Diaphragm Material: Elastomer
- Valve Seat: Elastomer
- Inlet Filter: Sintered Bronze
- Control Knob: ABS
- Testing: 100% Leak, Pressure, Function & Visual Inspection
