Description

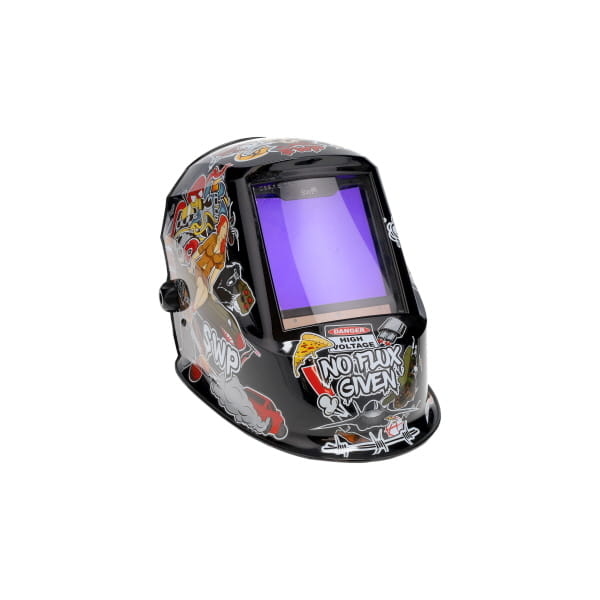

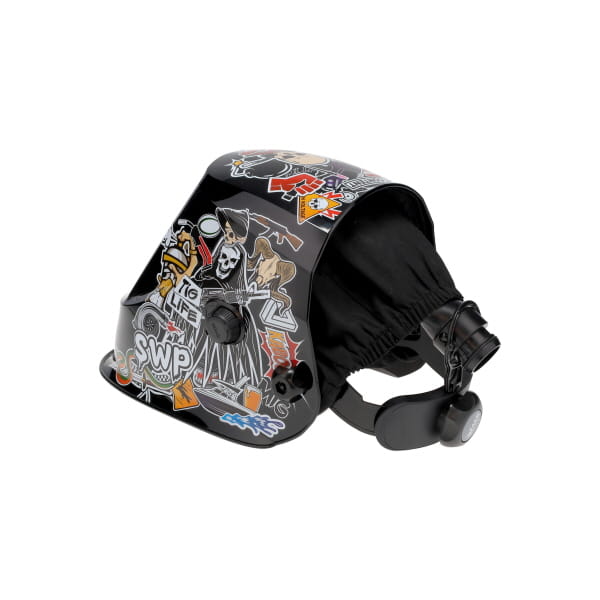

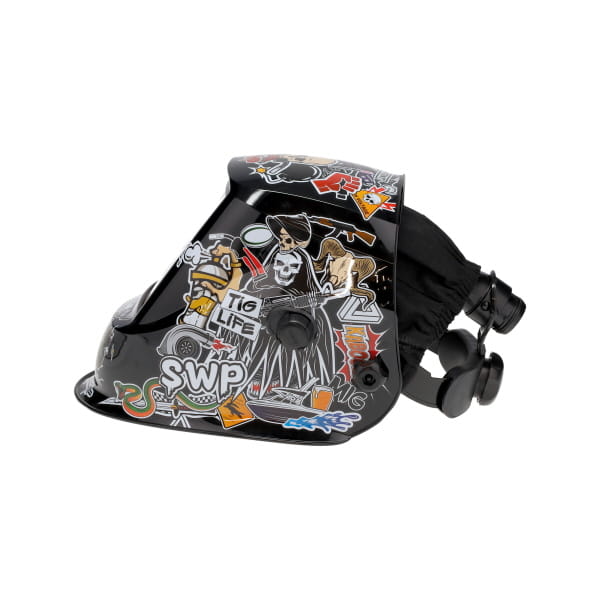

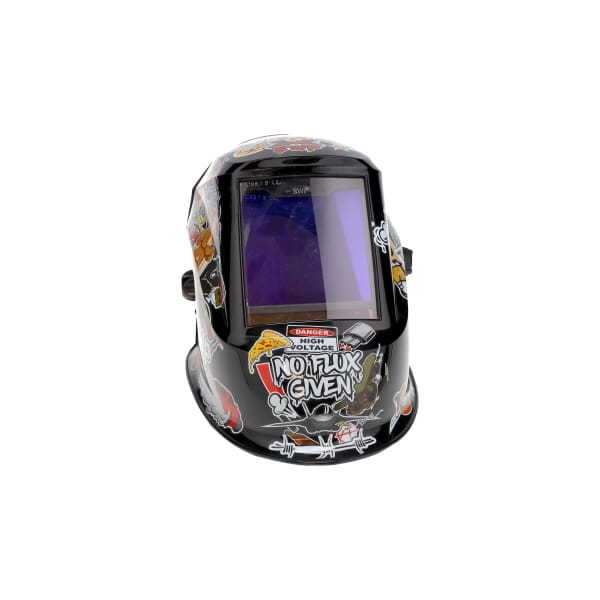

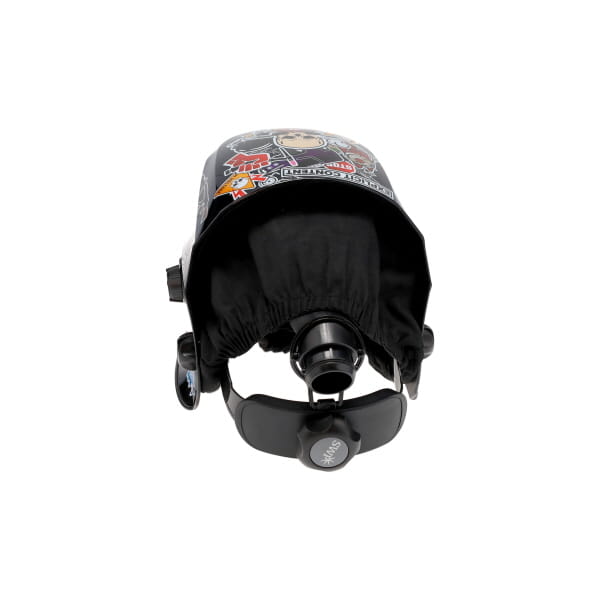

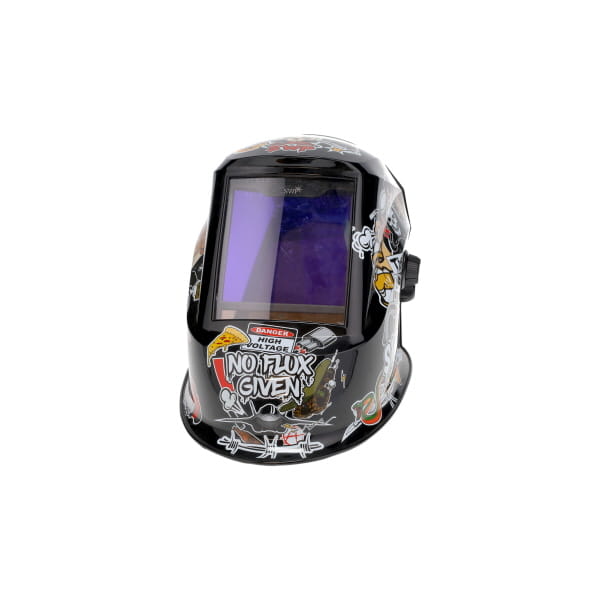

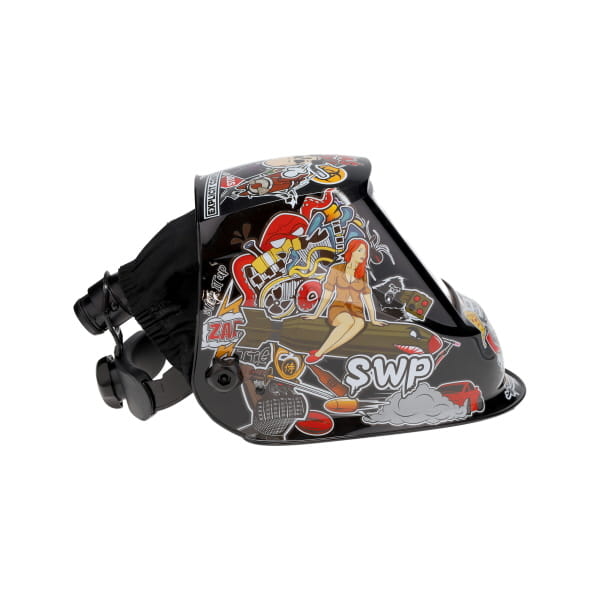

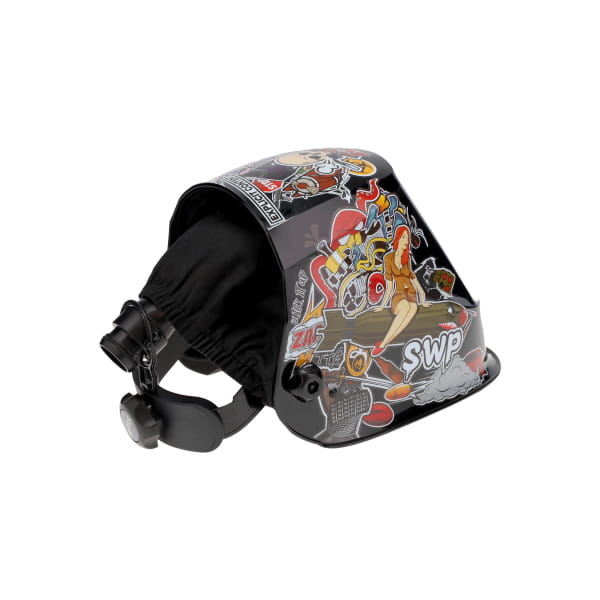

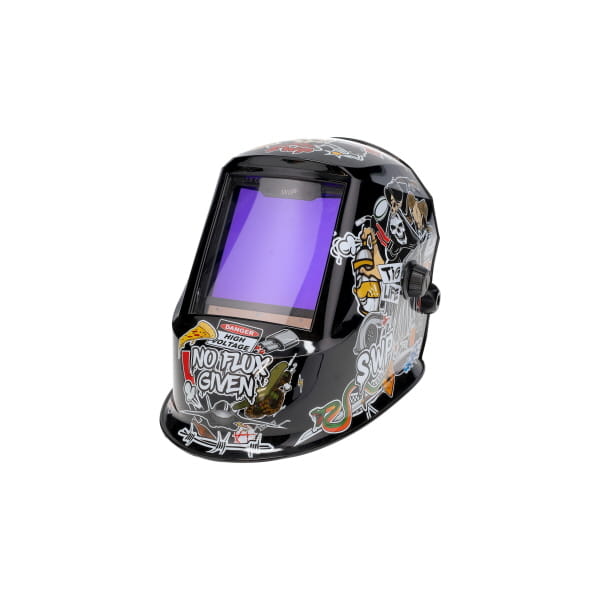

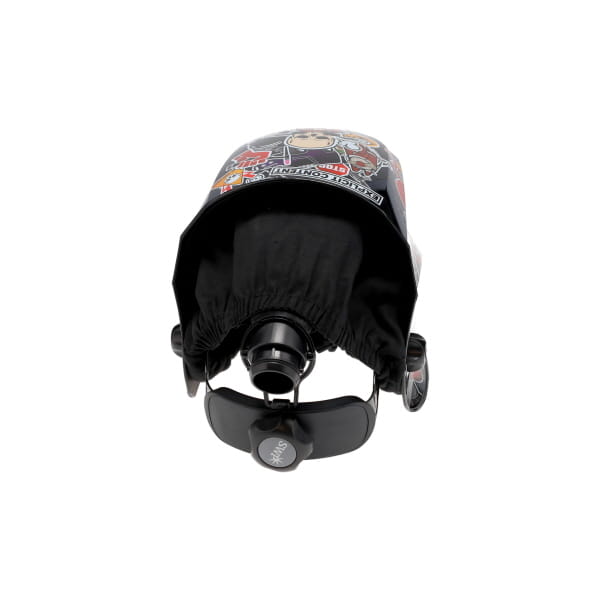

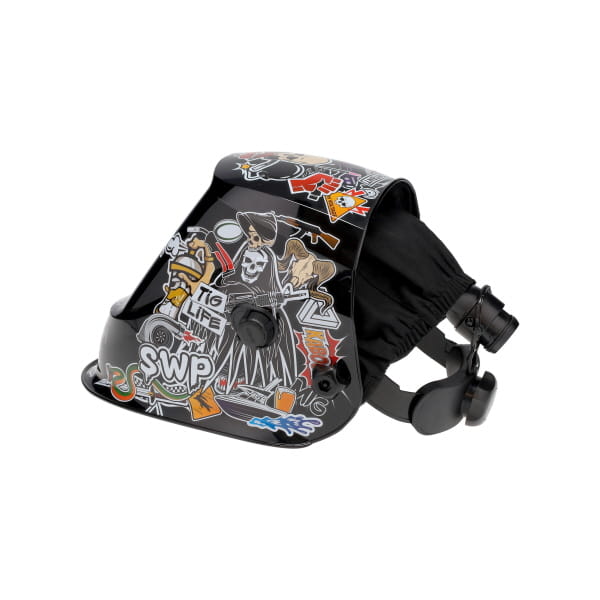

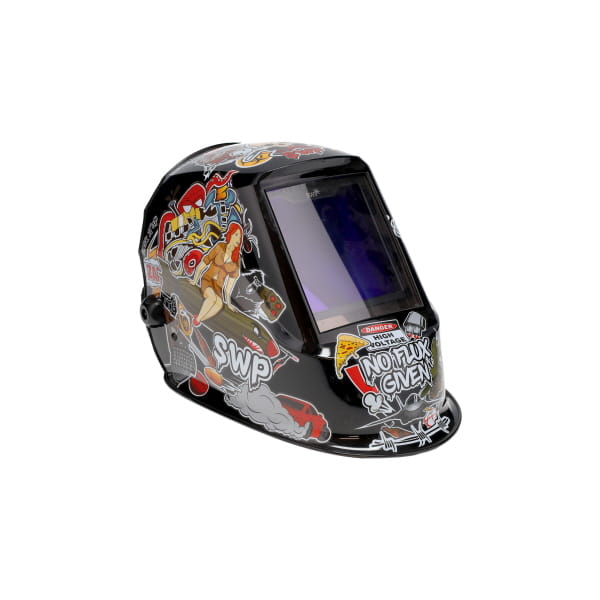

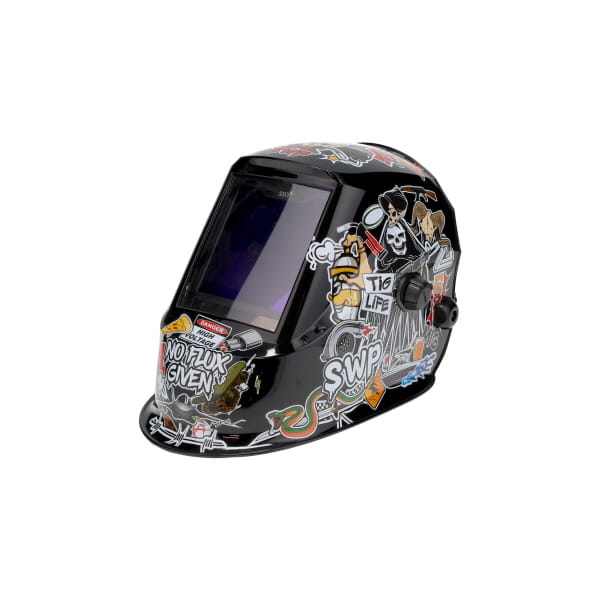

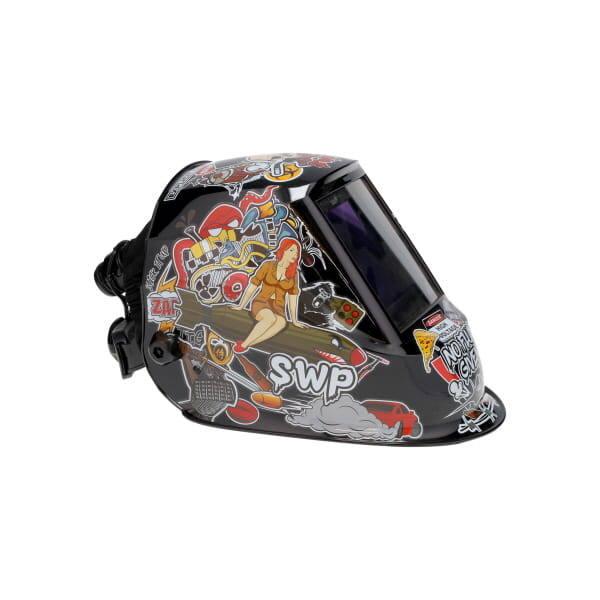

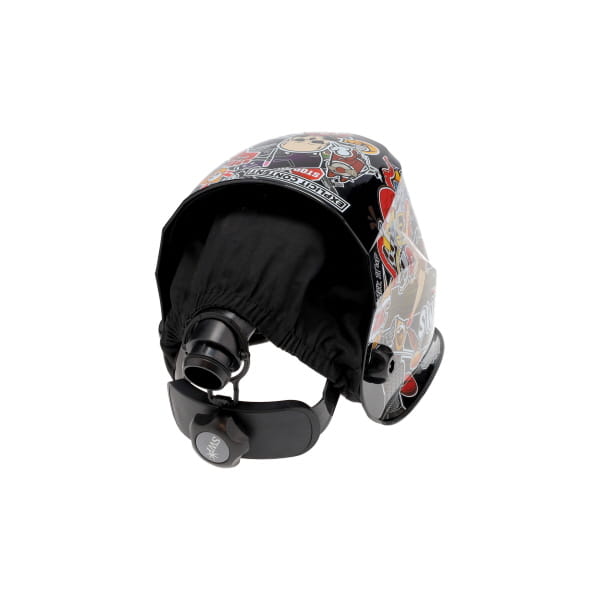

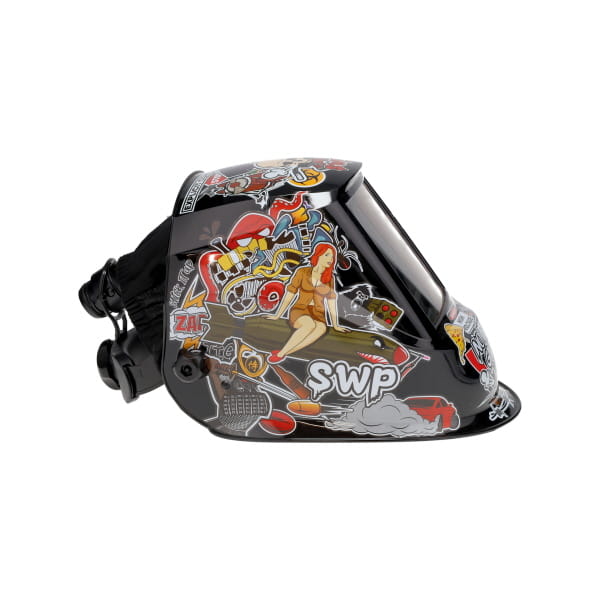

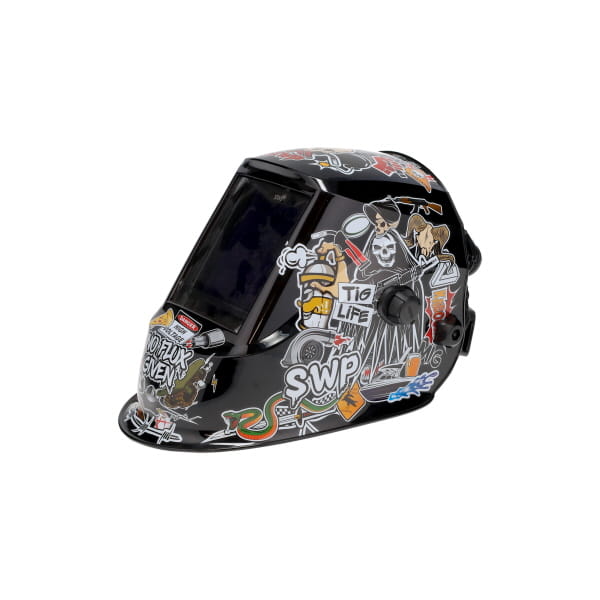

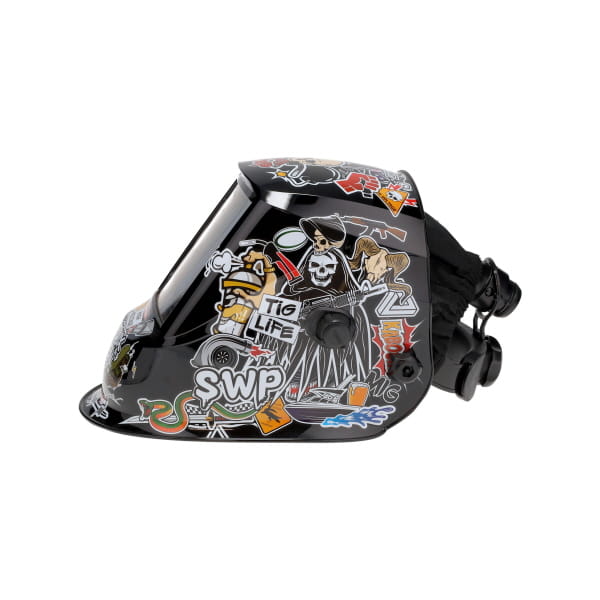

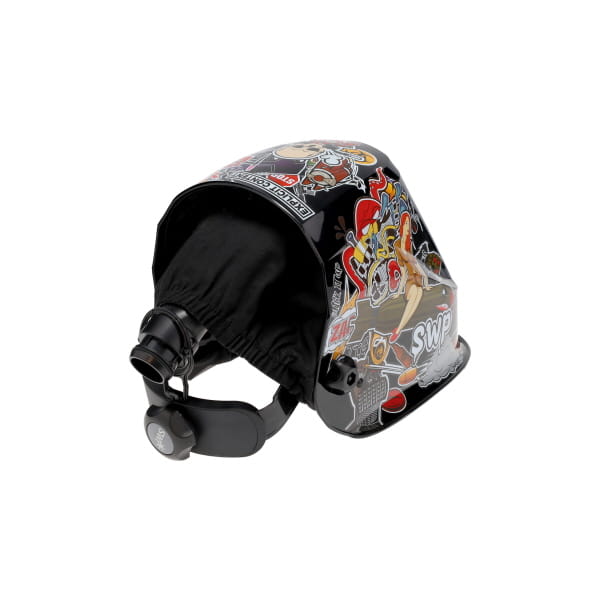

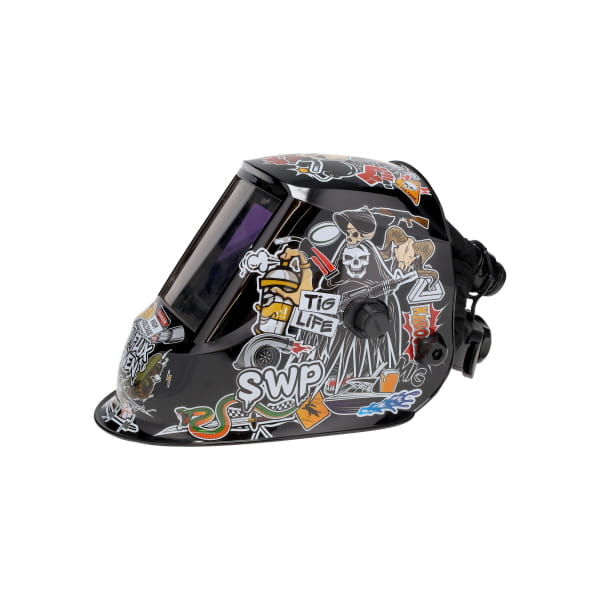

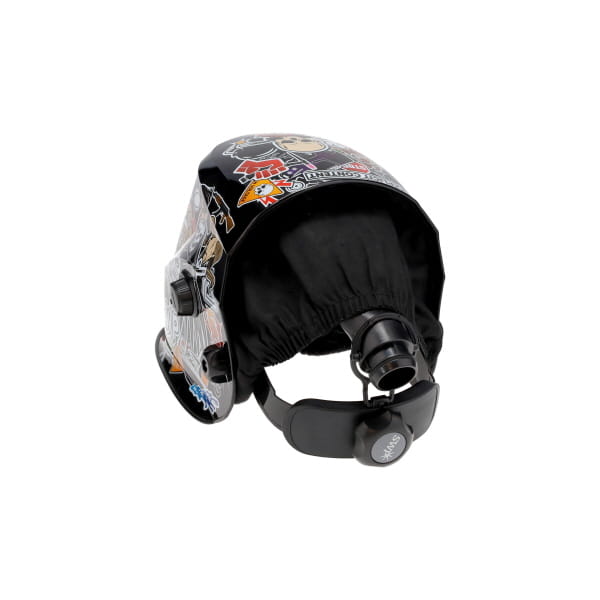

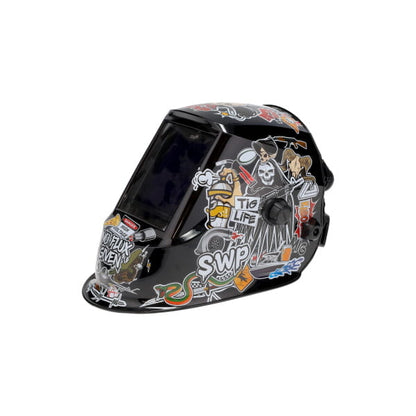

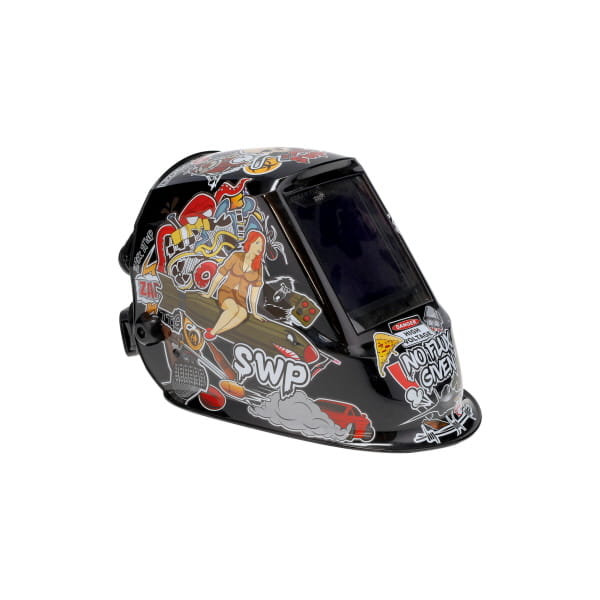

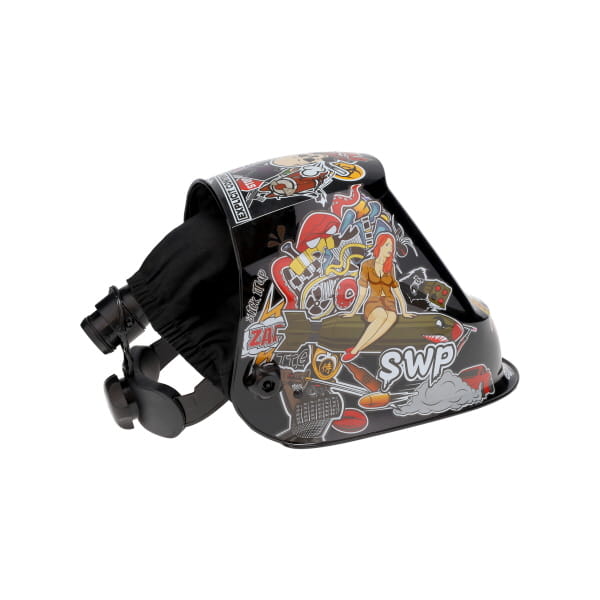

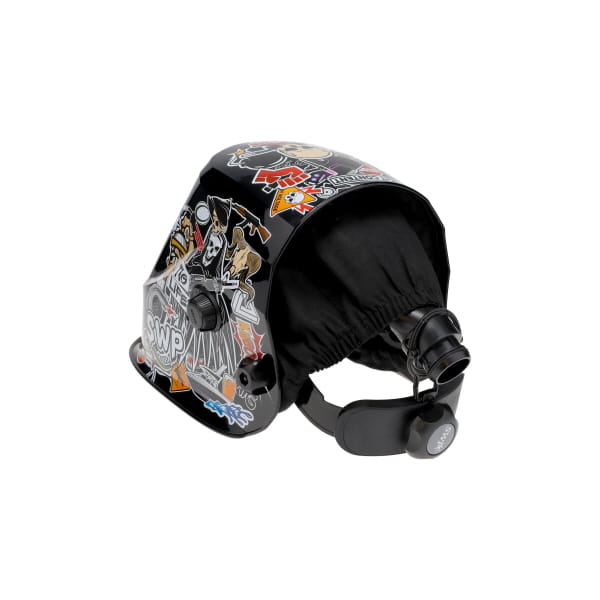

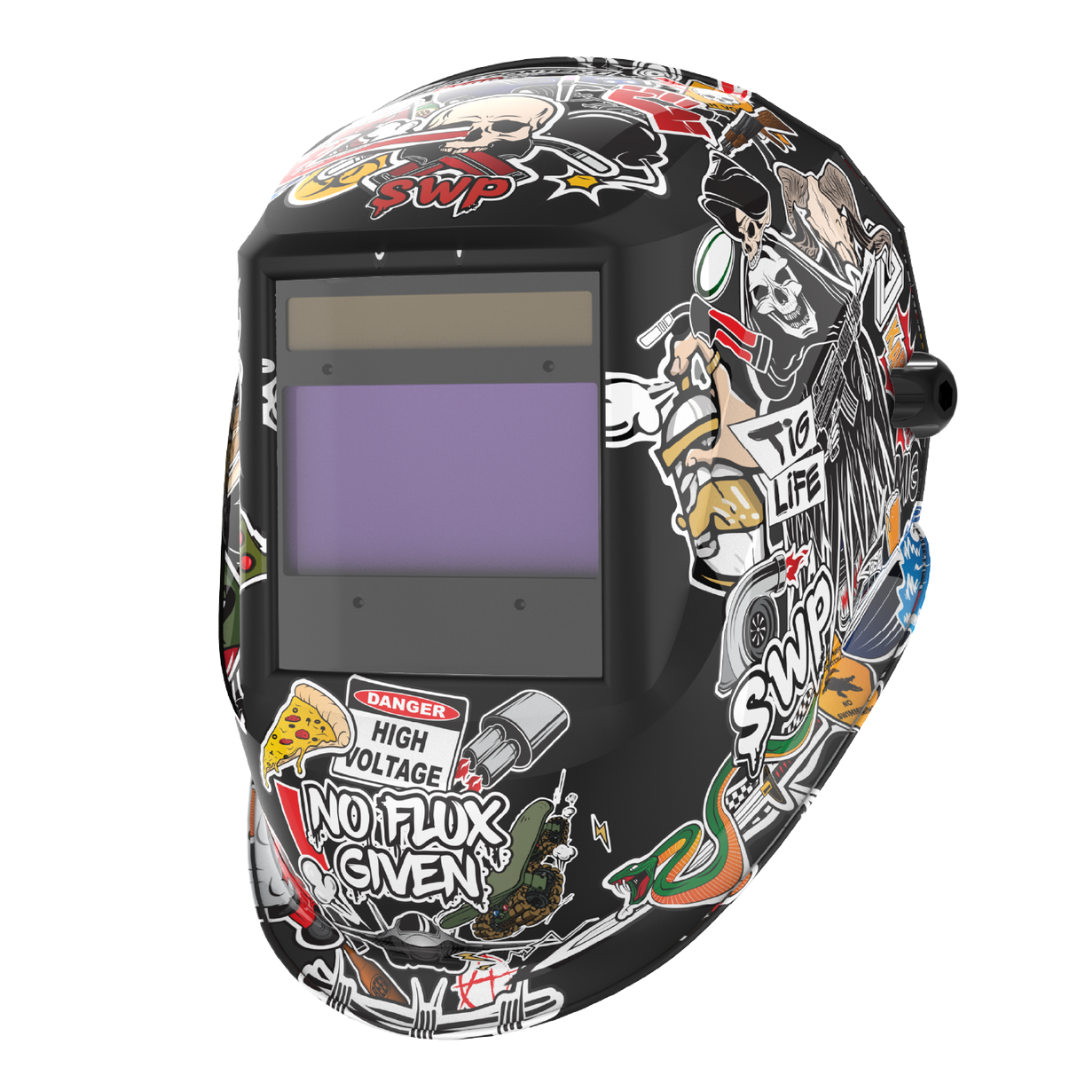

The SWP Chaos Welding & Grinding Helmet offers medium range welding vision, ideal for TIG and Plasma Welding. With variable shading and fully adjustable sensitivity and delay features, it maximizes ADF filter and provides state-of-the-art shade 4 protection through new generation true colour technology. CE classified 1/1/1/2 for all types of welding.
- Medium range welding vision
- Working from 3 amps ideal for TIG and Plasma Welding
- Variable shading to maximise the ADF filter and protection
- State shade 4 due to the new generation true colour technology
- Auto and manual shade settings
- Fully adjustable sensitivity and delay optimises setting for all types of welding in MIG, TIG and Plasma
- CE Classification: 1/1/1/2
Specifications
- Filter Dimensions: 114mm x 133mm x 9.5mm
- Viewing Area: 100mm x 83.4mm
- CE Classification: 1/1/1/2
- Sensors: 4
- Auto Shade: Yes
- Light Shade: 4
- Dark State: Variable shade 5-9/9-13
- Shade Control: Internal
- Switching Time: 0.04ms(ANSI)
- Sensitivity Control: Adjustable (Internal, Digital)
- Delay Time Control: Adjustable 0.1-0.9S
- Grinding Function: Yes – Digital Control
- Low Battery Warning Indicator: Yes
- Operation Temperature: -10°C -65°C
- Storing Temperature: -20°C-85°C
- Power Supply: Solar Cell, Replaceable Battery 1 x CR2450
- Inner Protection Lens: PL-5003
- Minimum TIG Welding Current: >3A
- Maximum TIG Welding Current: 350A
