Description

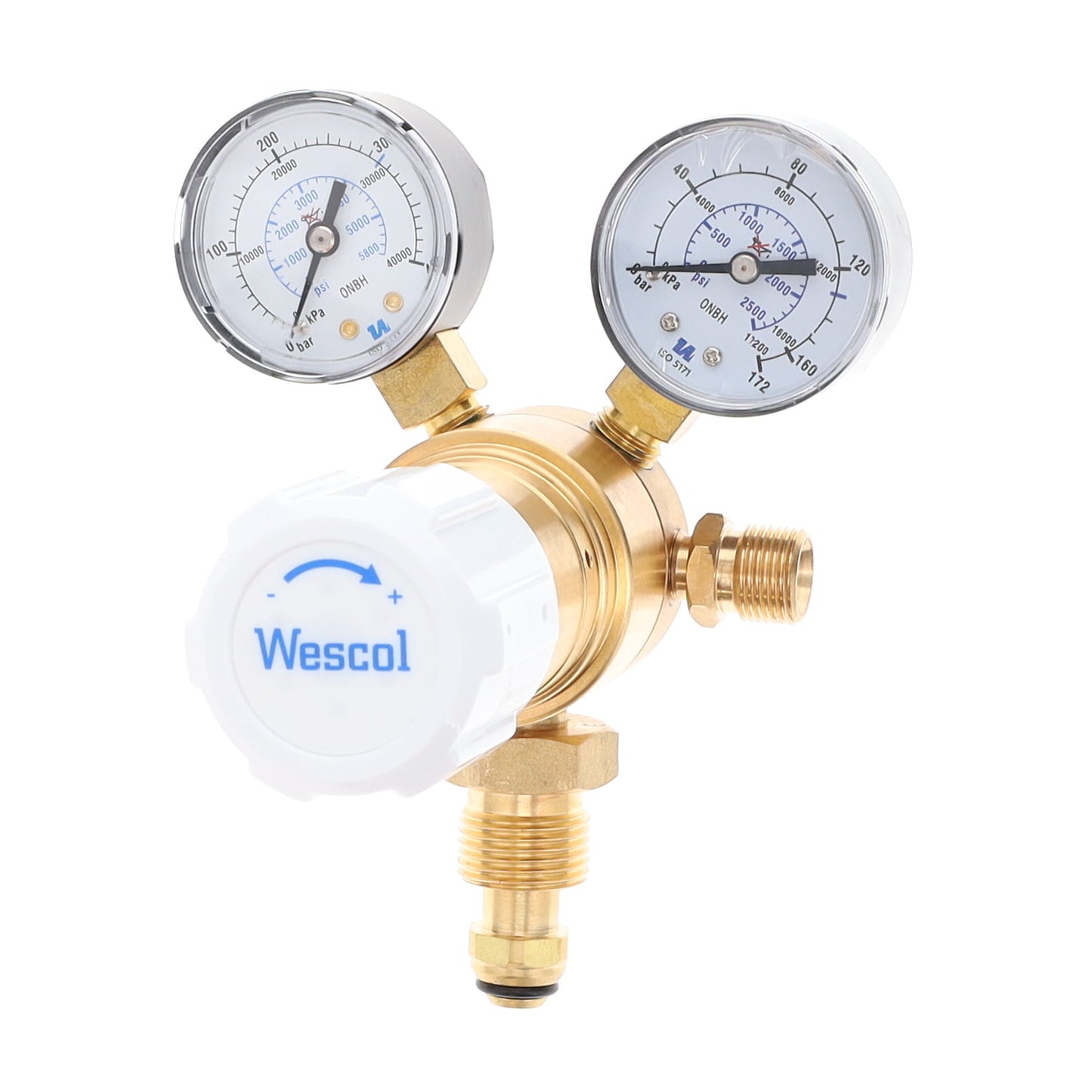

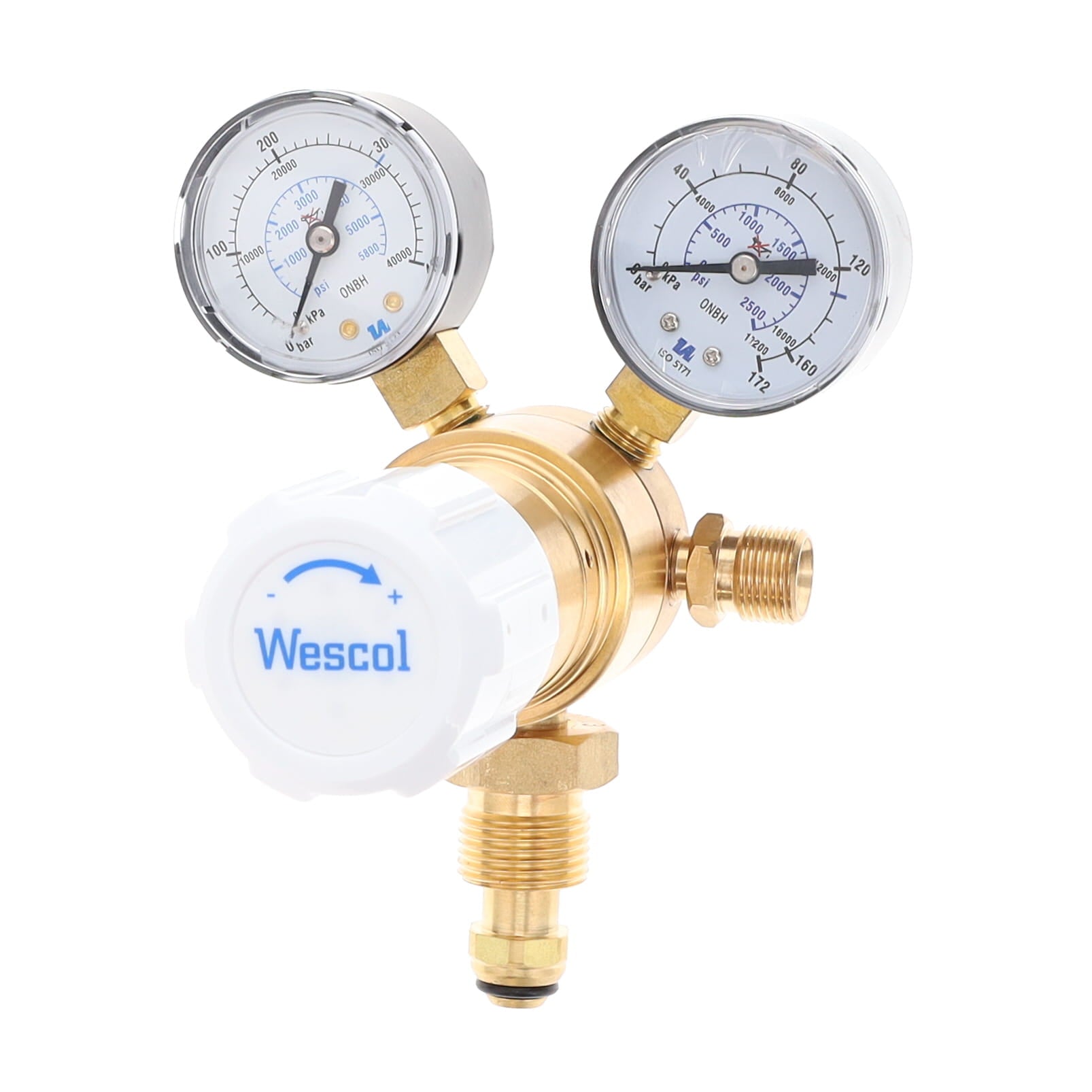

Wescol 52 Bar High Pressure Regulator is a single-stage high pressure gas regulator designed for Nitrogen applications requiring controlled outlet pressure up to 52 bar, suitable for demanding industrial and testing environments.
- High pressure regulator with outlet pressure up to 52 bar
- Single-stage design for reliable performance
- BS341 No.3 inlet connection for Nitrogen cylinders
- Side entry inlet position (9 o’clock) for flexible installation
- ISO 2503 compliant with full testing and inspection
Read More
Designed for high pressure Nitrogen applications, this regulator is suitable for pressure testing, purging, and industrial processes requiring elevated outlet pressures. The side entry configuration allows easier installation and improved accessibility in restricted environments.
Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator delivers durability and consistent high pressure performance. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection. Dual gauges conforming to ISO 5171 provide accurate monitoring of both cylinder and outlet pressure.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- Professional-Grade Equipment
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Gas Equipment Gas Regulators Process Pressure Regulators Technical Data Sheet (PDF)
Specifications
- Product Type: Single Stage High Pressure Gas Regulator
- Gas Type: Nitrogen
- Outlet Pressure: 0 – 52 bar
- Maximum Inlet Pressure: 300 bar
- Inlet Connection: BS 341 No. 3
- Inlet Position: Side Entry (9 o’clock)
- Outlet Connection: G3/8
- Outlet Position: 3 o’clock
- Gauge Type: Dual Gauge (HP & LP)
- Gauge Standard: ISO 5171
- Gauge Diameter: 50mm
- Gauge Range: Bar, kPa & psi (Tri-scale)
- Ports: G¼ (EN 837)
- Body Material: CW614N Brass
- Diaphragm Material: Elastomer
- Valve Seat: Elastomer
- Inlet Filter: Sintered Bronze
- Control Knob: ABS
- Testing: 100% Leak, Pressure, Function & Visual Inspection
