Superflow

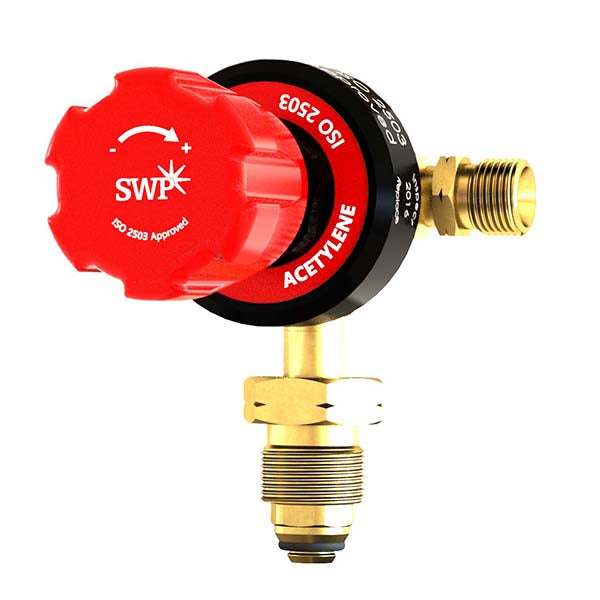

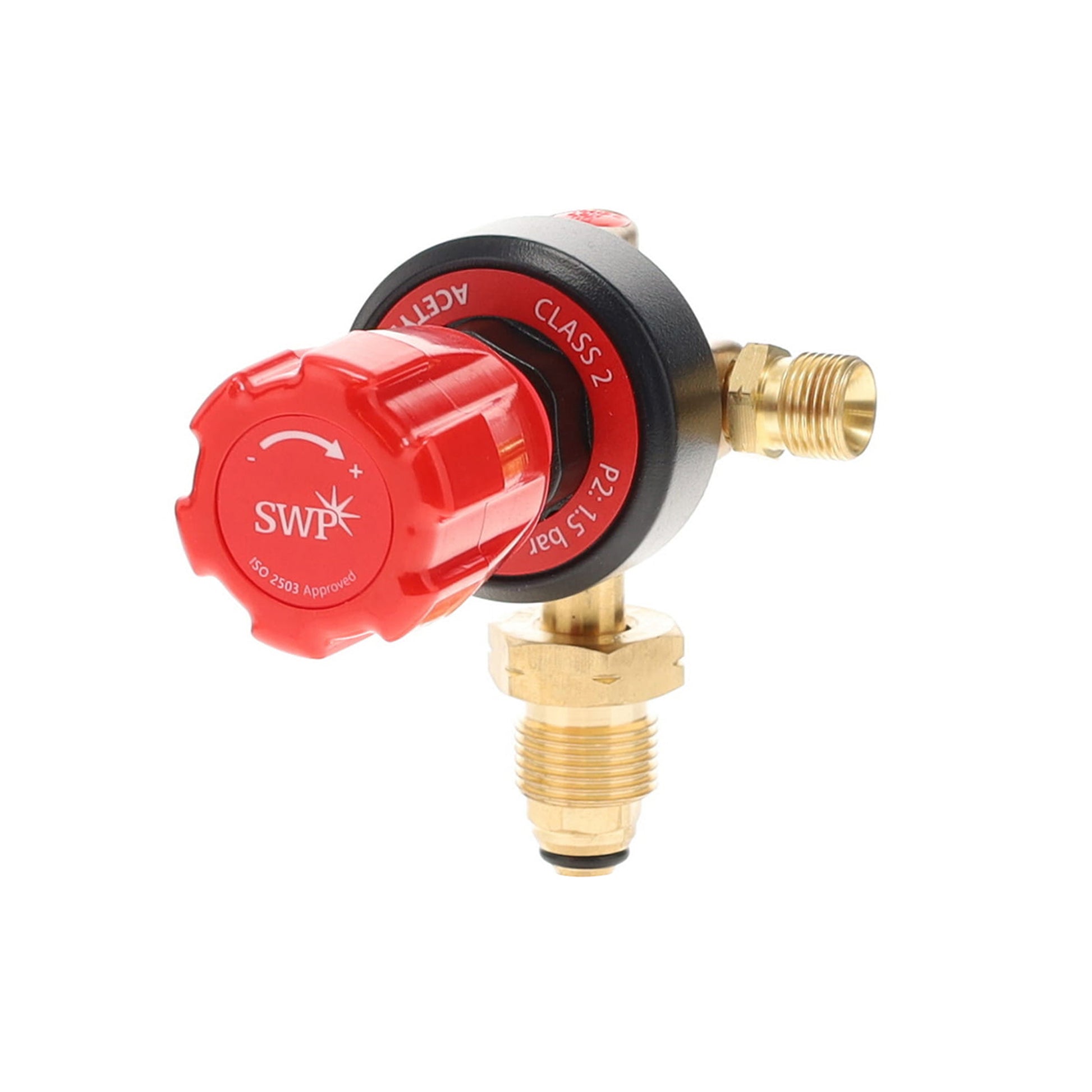

Superflow Single Stage 1.5bar Plugged Acetylene Regulator

Superflow Single Stage 1.5bar Plugged Acetylene Regulator

2057

Shipping calculated at checkout.

Superflow Single Stage 1.5bar Plugged Acetylene Regulator is a single-stage gas regulator designed for acetylene use in cutting and heating applications, delivering controlled outlet pressure up to 1.5 bar in a gauge-free configuration for system integration and fixed installations.

  • Gauge-free (plugged) design for system integration
  • Single-stage regulator with outlet pressure up to 1.5 bar
  • BS341 No.2 inlet connection for acetylene cylinders
  • Left-hand (LH) outlet thread for fuel gas safety compliance
  • ISO 2503 compliant with full testing and inspection
Read More

Designed for acetylene-based oxy-fuel cutting and heating systems, this regulator is ideal for installations where pressure monitoring is handled externally or via centralised systems. The plugged design provides a compact and robust solution for fixed installations and production environments.

Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator ensures reliable and consistent performance. The left-hand outlet connection complies with fuel gas safety standards, preventing incorrect connections. Each unit undergoes 100% leak, pressure, function, and visual inspection to ensure safety and durability in demanding applications.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators Cutting & Heating Regulators Technical Data Sheet (PDF)

View full details

Description

Superflow Single Stage 1.5bar Plugged Acetylene Regulator is a single-stage gas regulator designed for acetylene use in cutting and heating applications, delivering controlled outlet pressure up to 1.5 bar in a gauge-free configuration for system integration and fixed installations.

  • Gauge-free (plugged) design for system integration
  • Single-stage regulator with outlet pressure up to 1.5 bar
  • BS341 No.2 inlet connection for acetylene cylinders
  • Left-hand (LH) outlet thread for fuel gas safety compliance
  • ISO 2503 compliant with full testing and inspection
Read More

Designed for acetylene-based oxy-fuel cutting and heating systems, this regulator is ideal for installations where pressure monitoring is handled externally or via centralised systems. The plugged design provides a compact and robust solution for fixed installations and production environments.

Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator ensures reliable and consistent performance. The left-hand outlet connection complies with fuel gas safety standards, preventing incorrect connections. Each unit undergoes 100% leak, pressure, function, and visual inspection to ensure safety and durability in demanding applications.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators Cutting & Heating Regulators Technical Data Sheet (PDF)

Specifications

  • Product Type: Single Stage Gas Regulator (Plugged)
  • Gas Type: Acetylene
  • Outlet Pressure: 0 – 1.5 bar
  • Maximum Inlet Pressure: 23 bar
  • Inlet Connection: BS 341 No. 2
  • Inlet Position: 6 o’clock
  • Outlet Connection: G3/8 LH
  • Outlet Position: 3 o’clock
  • Gauge Type: No Gauges (Plugged Ports)
  • Ports: G¼ (EN 837)
  • Body Material: CW614N Brass
  • Diaphragm Material: Elastomer
  • Valve Seat: Elastomer
  • Inlet Filter: Sintered Bronze
  • Control Knob: ABS
  • Testing: 100% Leak, Pressure, Function & Visual Inspection

Standards
