Description

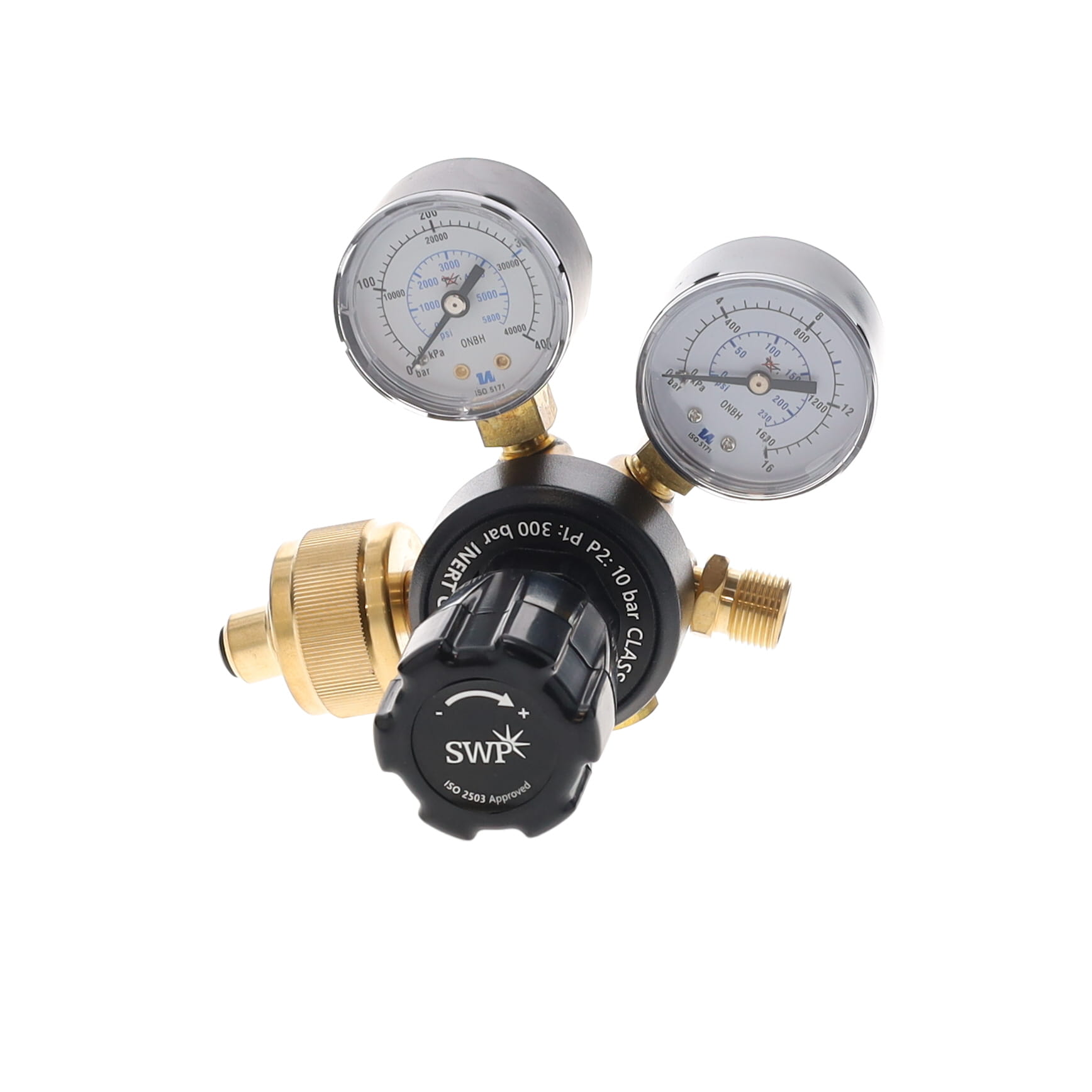

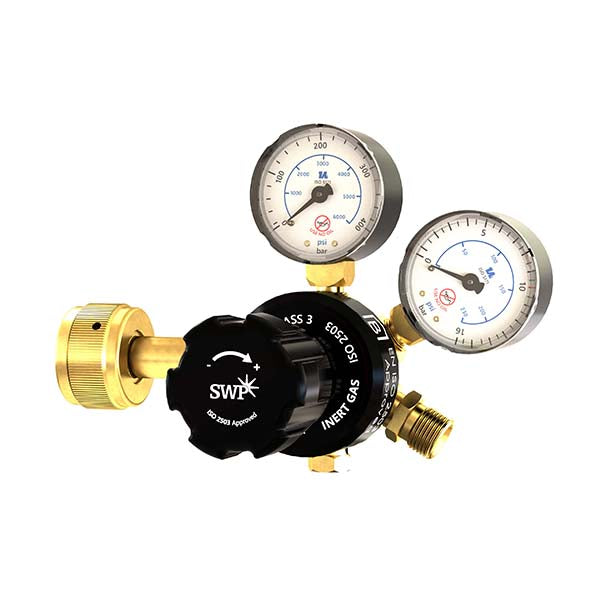

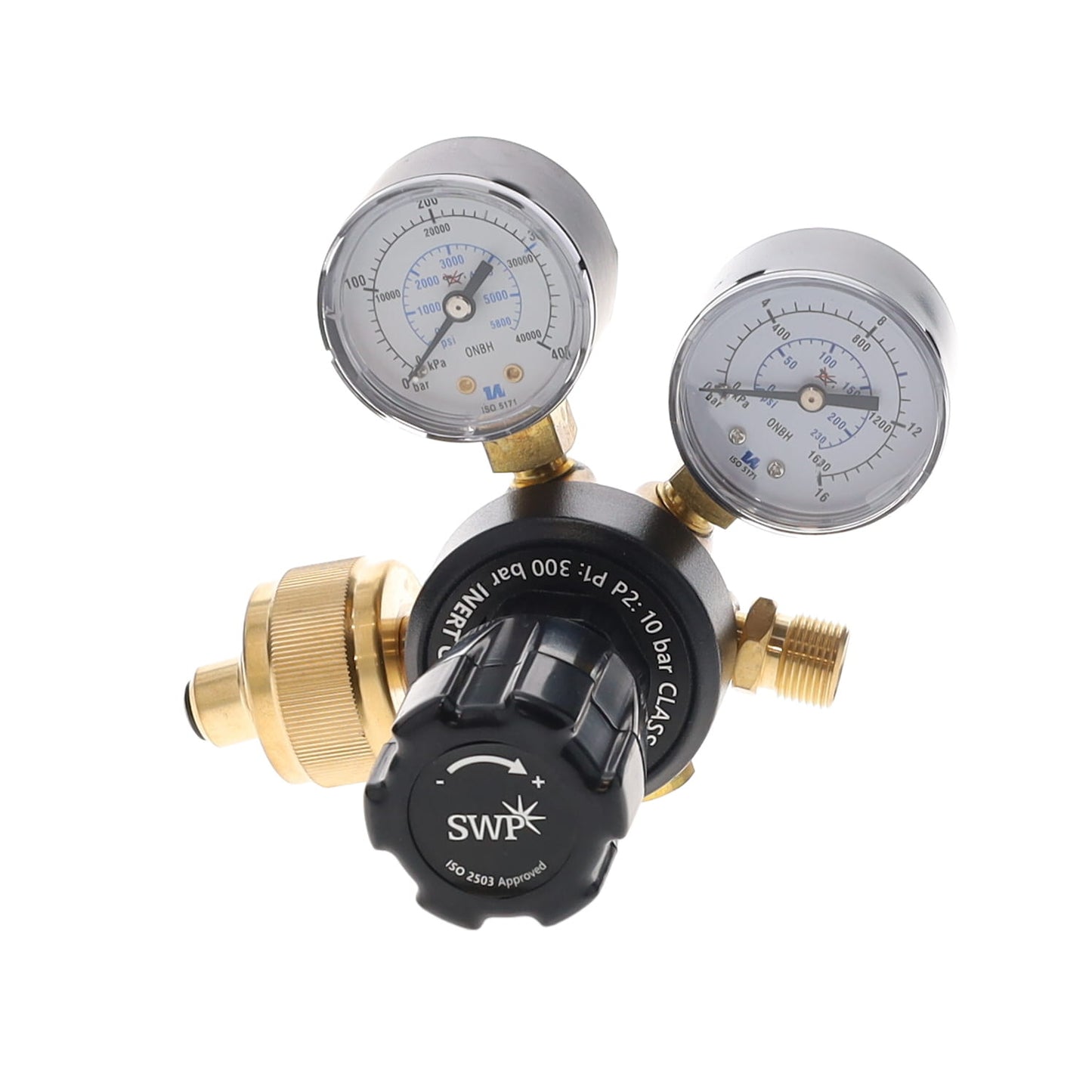

Superflow Single Stage 10bar Nevoc Fitting Side Entry Nitrogen Pressure Regulator is a single-stage gas regulator designed for Nitrogen applications requiring controlled outlet pressure up to 10 bar, featuring a NEVOC inlet connection and side entry configuration for flexible installation.
- Single-stage regulator with outlet pressure up to 10 bar
- NEVOC inlet connection (ISO 5145 No.1) for European cylinder compatibility
- Side entry inlet position (9 o’clock) for improved accessibility
- Dual gauges for cylinder and outlet pressure monitoring
- ISO 2503 compliant with full testing and inspection
Read More
Suitable for Nitrogen gas applications across industrial, maintenance, and testing environments, this regulator provides stable and reliable pressure control. The NEVOC fitting ensures compatibility with European cylinder standards, while the side entry design allows easier installation in confined spaces and improved hose routing.
Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator delivers durability and consistent performance. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection. Dual gauges conforming to ISO 5171 provide accurate monitoring of both cylinder and outlet pressure.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- Professional-Grade Equipment
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Gas Equipment Gas Regulators Process Pressure Regulators Technical Data Sheet (PDF)
Specifications
- Product Type: Single Stage Gas Regulator
- Gas Type: Nitrogen
- Outlet Pressure: 0 – 10 bar
- Maximum Inlet Pressure: 300 bar
- Inlet Connection: ISO 5145 No.1 (NEVOC)
- Inlet Position: Side Entry (9 o’clock)
- Outlet Connection: G3/8 MTG
- Gauge Type: Dual Gauge (HP & LP)
- Gauge Standard: ISO 5171
- Gauge Diameter: 50mm
- Gauge Range: Bar, kPa & psi
- Ports: G¼ (EN 837)
- Body Material: CW614N Brass
- Diaphragm Material: Elastomer
- Valve Seat: Elastomer
- Inlet Filter: Sintered Bronze
- Control Knob: ABS
- Testing: 100% Leak, Pressure, Function & Visual Inspection
