Superflow

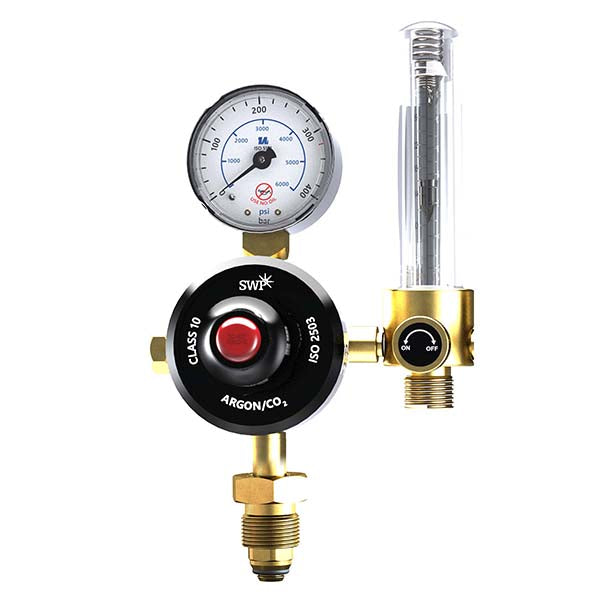

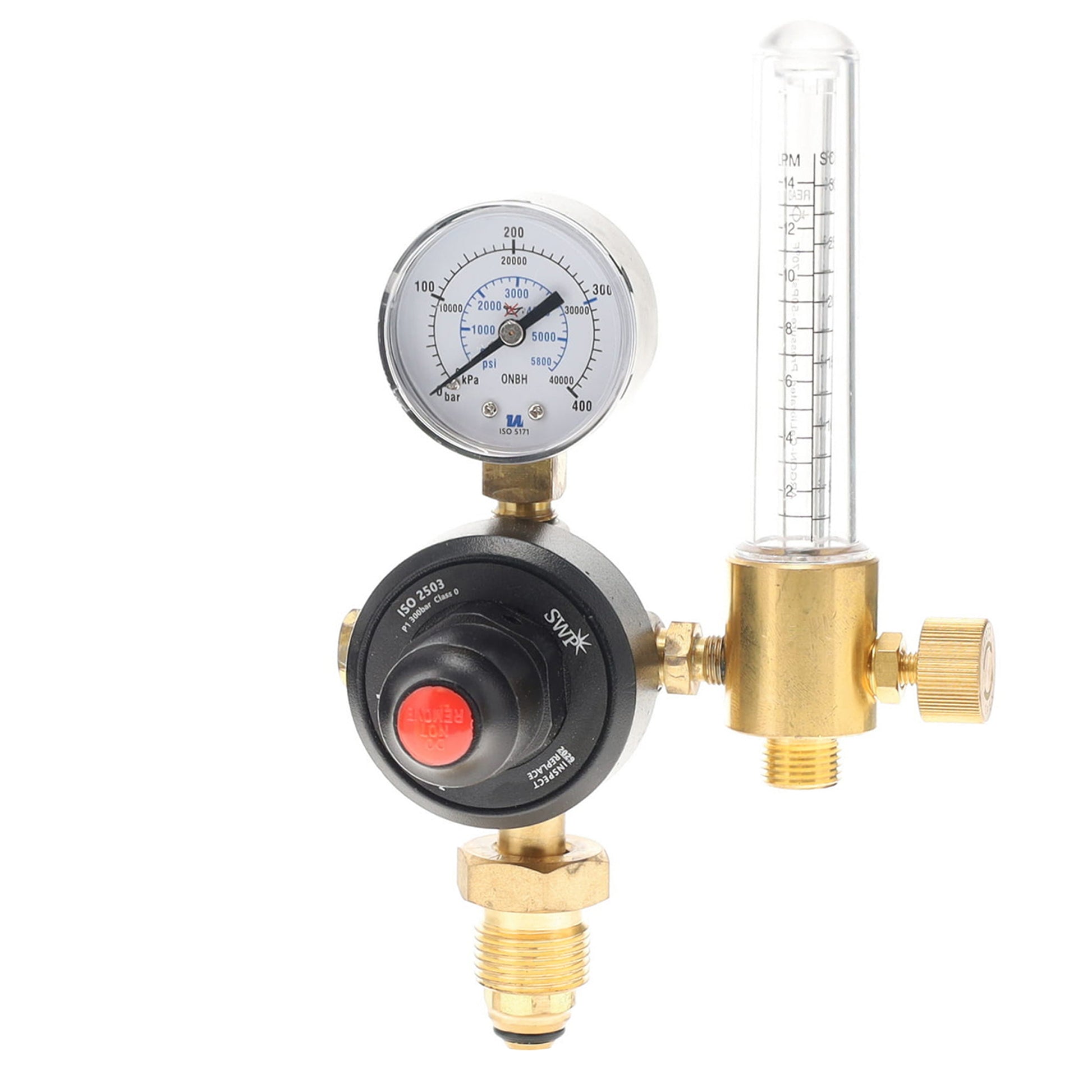

Superflow Single Stage 1G Bottom Entry Argon Regulator & Flowmeter

Superflow Single Stage 1G Bottom Entry Argon Regulator & Flowmeter

2048

  • 0-14lpm
    2048

  • 0-30lpm
    2049

Shipping calculated at checkout.

Superflow Single Stage 1G Bottom Entry Argon Regulator & Flowmeter is a single-stage gas regulator with integrated flowmeter designed for precise control of Argon shielding gas, available in 0–14 LPM and 0–30 LPM variants for TIG welding and gas flow applications.

  • Available in 0–14 LPM and 0–30 LPM flowmeter variants
  • Integrated flowmeter for accurate gas flow control
  • BS341 No.3 inlet connection for Argon cylinders
  • 6 o’clock bottom entry for standard installation
  • ISO 2503 compliant with full testing and inspection
Read More

Designed for TIG welding and applications requiring accurate shielding gas flow control, this regulator with integrated flowmeter provides precise adjustment and clear visual indication of gas flow. Suitable for workshop, fabrication, and maintenance environments using Argon gas.

Constructed from CW614N brass with an elastomer diaphragm and valve seat, the regulator ensures durability and stable performance. The polycarbonate flowmeter tube allows clear flow visibility, while a sintered bronze inlet filter protects internal components. Each unit undergoes 100% leak, pressure, function, and visual inspection, and includes ISO 5171 compliant gauges for cylinder pressure monitoring.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators Gas Flowmeters Technical Data Sheet 0–14 LPM (PDF) Technical Data Sheet 0–30 LPM (PDF)

View full details

Description

Superflow Single Stage 1G Bottom Entry Argon Regulator & Flowmeter is a single-stage gas regulator with integrated flowmeter designed for precise control of Argon shielding gas, available in 0–14 LPM and 0–30 LPM variants for TIG welding and gas flow applications.

  • Available in 0–14 LPM and 0–30 LPM flowmeter variants
  • Integrated flowmeter for accurate gas flow control
  • BS341 No.3 inlet connection for Argon cylinders
  • 6 o’clock bottom entry for standard installation
  • ISO 2503 compliant with full testing and inspection
Read More

Designed for TIG welding and applications requiring accurate shielding gas flow control, this regulator with integrated flowmeter provides precise adjustment and clear visual indication of gas flow. Suitable for workshop, fabrication, and maintenance environments using Argon gas.

Constructed from CW614N brass with an elastomer diaphragm and valve seat, the regulator ensures durability and stable performance. The polycarbonate flowmeter tube allows clear flow visibility, while a sintered bronze inlet filter protects internal components. Each unit undergoes 100% leak, pressure, function, and visual inspection, and includes ISO 5171 compliant gauges for cylinder pressure monitoring.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators Gas Flowmeters Technical Data Sheet 0–14 LPM (PDF) Technical Data Sheet 0–30 LPM (PDF)

Specifications

  • Product Type: Single Stage Regulator with Flowmeter
  • Gas Type: Argon
  • Flow Rate: 0 – 14 LPM / 0 – 30 LPM
  • Maximum Inlet Pressure: 300 bar
  • Inlet Connection: BS 341 No. 3
  • Inlet Position: 6 o’clock
  • Outlet Connection: G3/8
  • Gauge Type: Dual Gauge (HP & Flowmeter)
  • Gauge Standard: ISO 5171
  • Gauge Diameter: 50mm
  • Gauge Range: Bar, kPa & psi (HP) / LPM (Flowmeter)
  • Ports: G¼ (EN 837)
  • Body Material: CW614N Brass
  • Diaphragm Material: Elastomer
  • Valve Seat: Elastomer
  • Flowmeter Tube: Polycarbonate
  • Inlet Filter: Sintered Bronze
  • Testing: 100% Leak, Pressure, Function & Visual Inspection

Standards
