Description

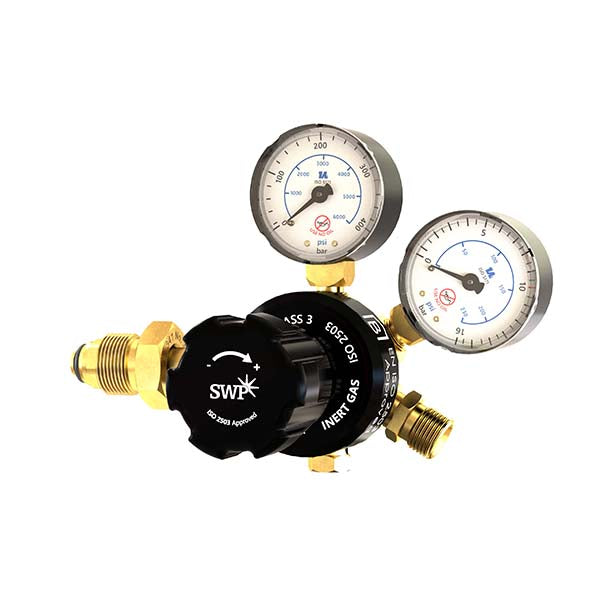

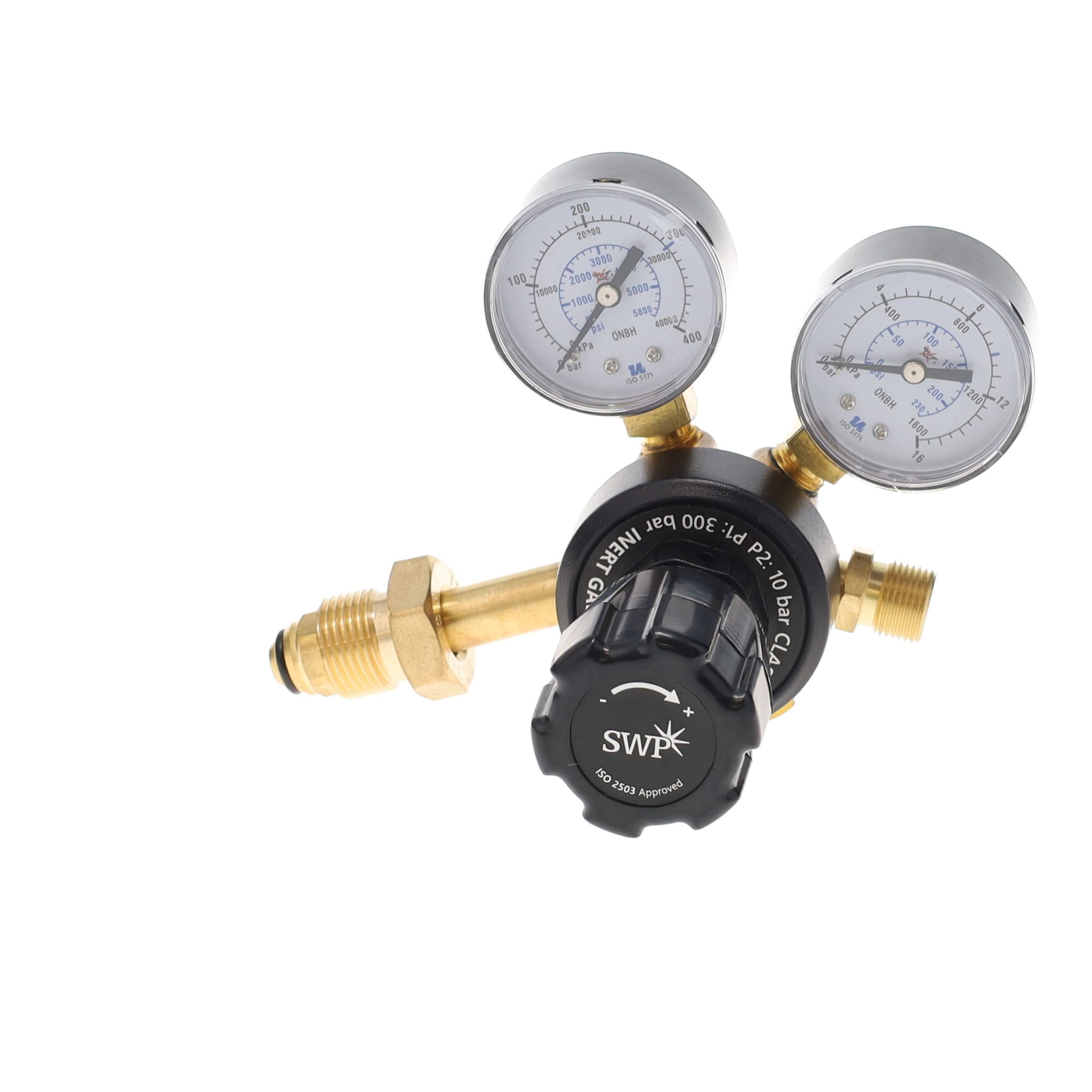

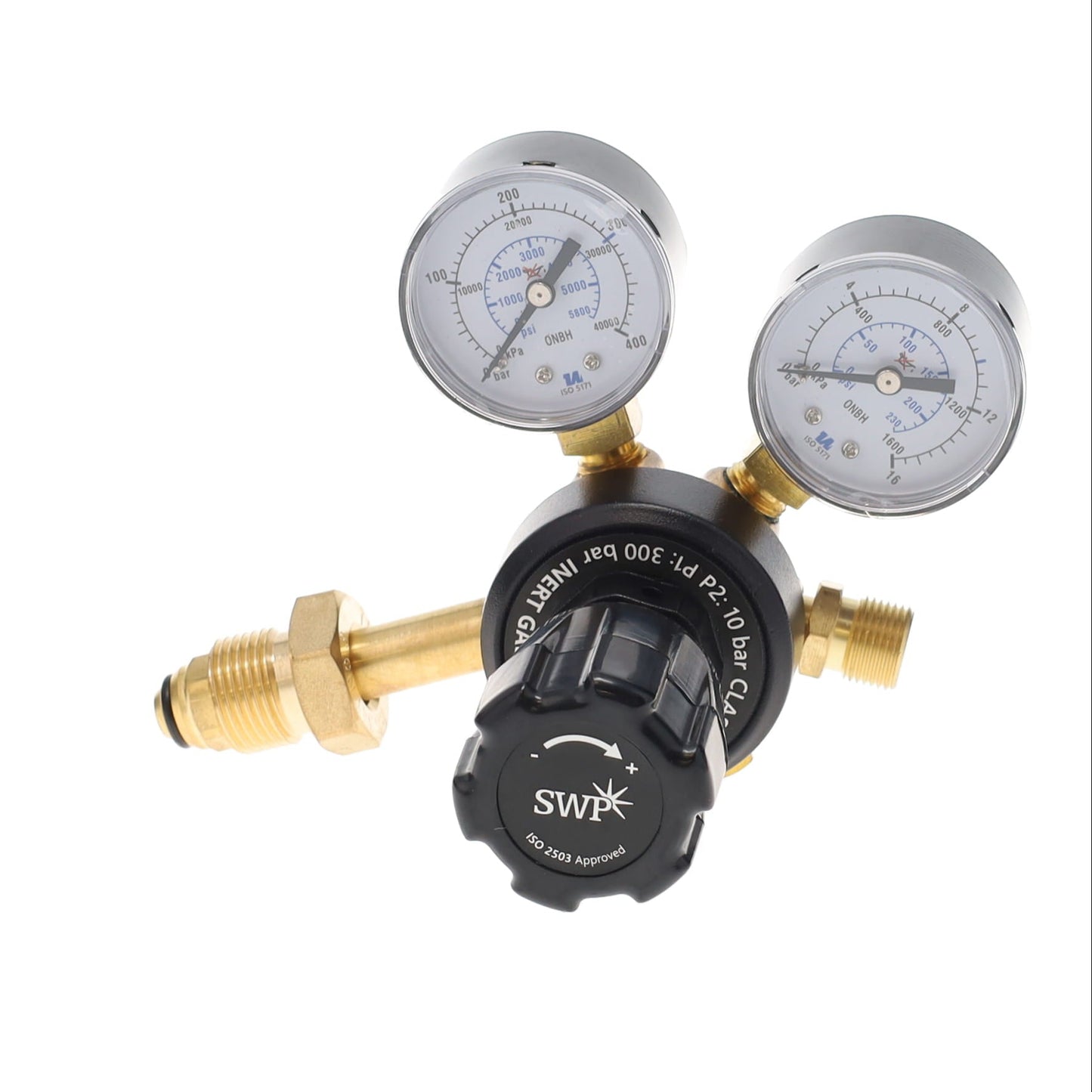

Superflow Single Stage 2g Nitrogen Pressure Regulator - Side Entry 10bar is a single-stage gas regulator designed for Nitrogen applications requiring controlled outlet pressure up to 10 bar, featuring a side entry inlet configuration for improved accessibility and installation flexibility.
- Single-stage regulator with outlet pressure up to 10 bar
- Side entry inlet position (9 o’clock) for flexible installation
- BS341 No.3 inlet connection for Nitrogen cylinders
- Dual gauges for cylinder and outlet pressure monitoring
- ISO 2503 compliant with full testing and inspection
Read More
Suitable for Nitrogen gas applications across industrial, maintenance, and testing environments, this regulator provides stable and reliable pressure control. The side entry design allows easier installation in confined spaces and supports improved hose routing.
Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator ensures durability and consistent performance. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection. Dual gauges conforming to ISO 5171 allow accurate monitoring of both cylinder and outlet pressure.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- Professional-Grade Equipment
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Gas Equipment Gas Regulators Process Pressure Regulators Technical Data Sheet (PDF)
Specifications
- Product Type: Single Stage Gas Regulator
- Gas Type: Nitrogen
- Outlet Pressure: 0 – 10 bar
- Maximum Inlet Pressure: 300 bar
- Inlet Connection: BS341 No. 3
- Inlet Position: Side Entry (9 o’clock)
- Outlet Connection: G3/8
- Gauge Type: Dual Gauge (HP & LP)
- Gauge Standard: ISO 5171
- Gauge Diameter: 50mm
- Gauge Range: Bar, kPa & psi
- Ports: G¼ (EN 837)
- Body Material: CW614N Brass
- Diaphragm Material: Elastomer
- Valve Seat: Elastomer
- Inlet Filter: Sintered Bronze
- Control Knob: ABS
- Testing: 100% Leak, Pressure, Function & Visual Inspection
