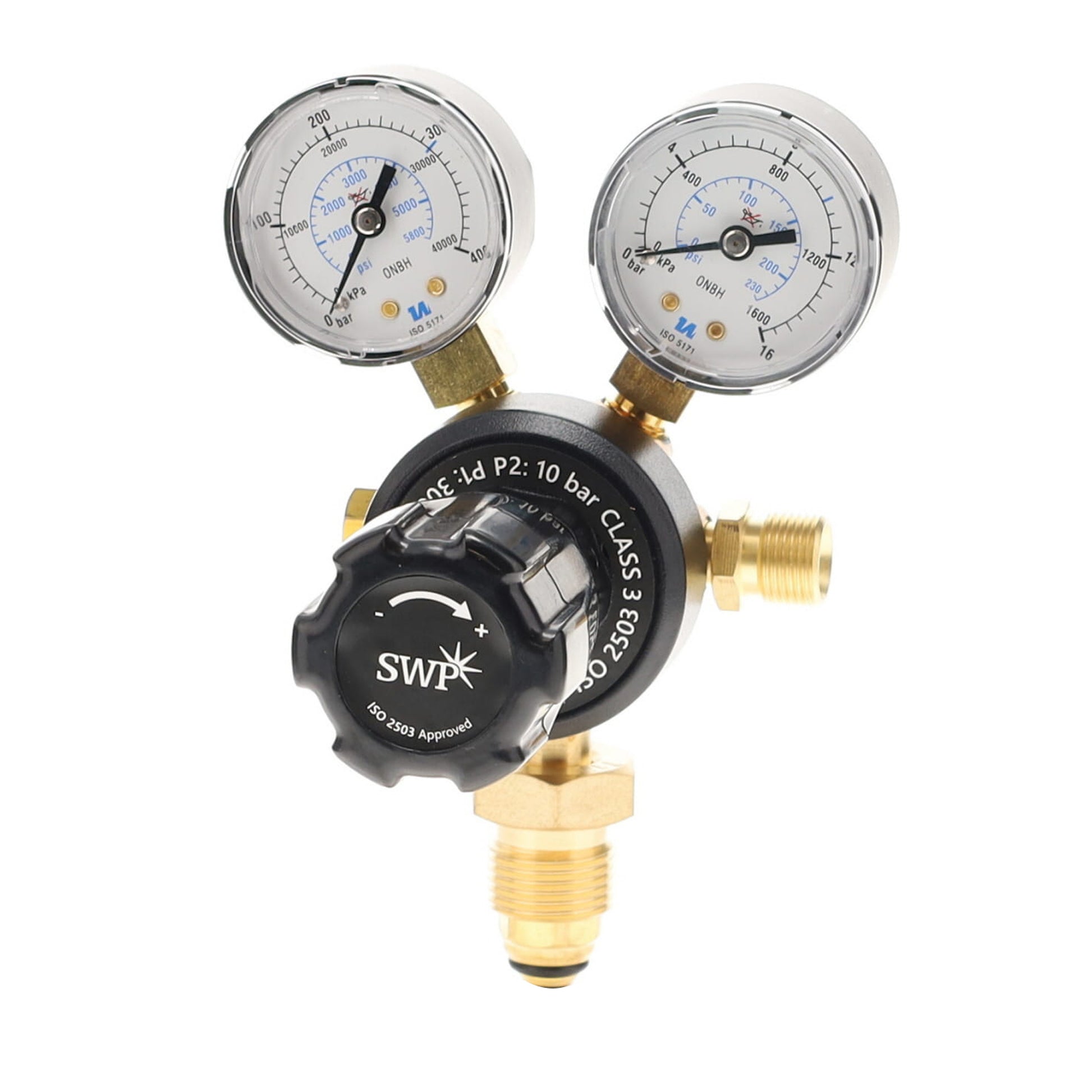

Superflow Single Stage Inert Gas Regulator - 7/16" Outlet

Superflow Single Stage Inert Gas Regulator - 7/16" Outlet

2062

Shipping calculated at checkout.

Superflow Single Stage Inert Gas Regulator - 7/16" Outlet is a single-stage gas regulator designed for inert gas applications requiring controlled outlet pressure up to 10 bar, featuring a 7/16" JIC outlet connection for compatibility with HVAC and charging equipment.

  • Single-stage regulator with outlet pressure up to 10 bar
  • 7/16" JIC (7/16-20 UNF) outlet for HVAC and charging applications
  • Side entry inlet position (9 o’clock) for flexible installation
  • BS341 No.3 inlet connection for inert gas cylinders
  • ISO 2503 compliant with full testing and inspection
Read More

Designed for inert gas applications including HVAC system testing, purging, and charging, this regulator provides reliable and consistent pressure control. The 7/16" JIC outlet connection ensures compatibility with standard refrigeration and service equipment, making it suitable for service engineers and industrial use.

Constructed from CW614N brass with an elastomer diaphragm and valve seat, the regulator delivers durability and stable performance. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection. Dual gauges conforming to ISO 5171 allow accurate monitoring of both cylinder and outlet pressure.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators Process Pressure Regulators Technical Data Sheet (PDF)

View full details

Description

Superflow Single Stage Inert Gas Regulator - 7/16" Outlet is a single-stage gas regulator designed for inert gas applications requiring controlled outlet pressure up to 10 bar, featuring a 7/16" JIC outlet connection for compatibility with HVAC and charging equipment.

  • Single-stage regulator with outlet pressure up to 10 bar
  • 7/16" JIC (7/16-20 UNF) outlet for HVAC and charging applications
  • Side entry inlet position (9 o’clock) for flexible installation
  • BS341 No.3 inlet connection for inert gas cylinders
  • ISO 2503 compliant with full testing and inspection
Read More

Designed for inert gas applications including HVAC system testing, purging, and charging, this regulator provides reliable and consistent pressure control. The 7/16" JIC outlet connection ensures compatibility with standard refrigeration and service equipment, making it suitable for service engineers and industrial use.

Constructed from CW614N brass with an elastomer diaphragm and valve seat, the regulator delivers durability and stable performance. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection. Dual gauges conforming to ISO 5171 allow accurate monitoring of both cylinder and outlet pressure.

Why Buy from Specialised Welding Products?

Relevant Links

Gas Equipment Gas Regulators Process Pressure Regulators Technical Data Sheet (PDF)

Specifications

  • Product Type: Single Stage Gas Regulator
  • Gas Type: Inert Gas
  • Outlet Pressure: 0 – 10 bar
  • Maximum Inlet Pressure: 300 bar
  • Inlet Connection: BS 341 No. 3
  • Inlet Position: Side Entry (9 o’clock)
  • Outlet Connection: JIC 7/16-20 UNF
  • Gauge Type: Dual Gauge (HP & LP)
  • Gauge Standard: ISO 5171
  • Gauge Diameter: 50mm
  • Gauge Range: Bar, kPa & psi
  • Ports: G¼ (EN 837)
  • Body Material: CW614N Brass
  • Diaphragm Material: Elastomer
  • Valve Seat: Elastomer
  • Inlet Filter: Sintered Bronze
  • Control Knob: ABS
  • Testing: 100% Leak, Pressure, Function & Visual Inspection

Standards
