Description

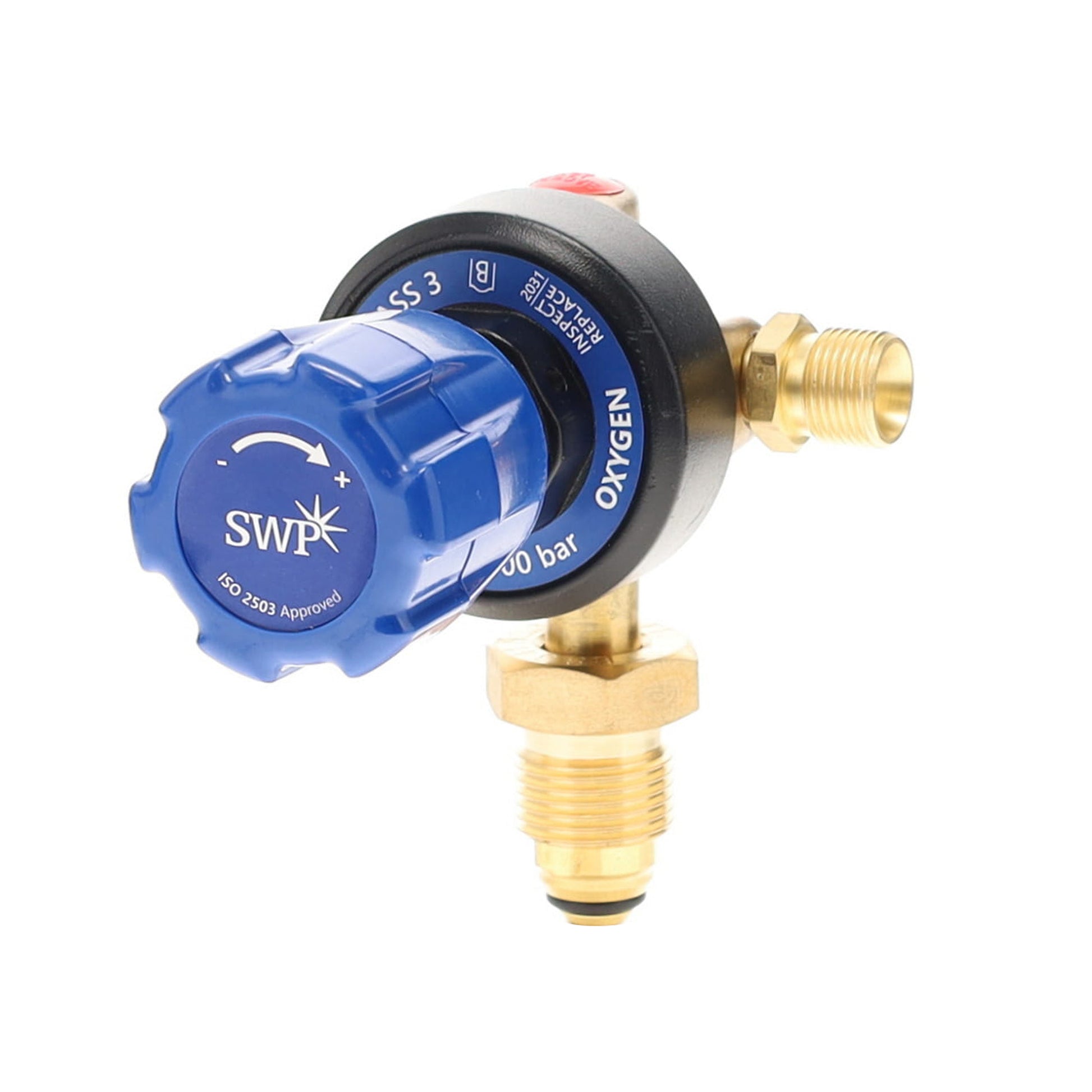

Superflow Single Stage Plugged Oxygen 10bar Regulator is a single-stage gas regulator designed for oxygen cutting and heating applications, delivering controlled outlet pressure up to 10 bar in a gauge-free configuration for system integration and fixed installations.
- Gauge-free (plugged) design for system integration
- Single-stage regulator with outlet pressure up to 10 bar
- BS341 No.3 inlet connection for oxygen cylinders
- 6 o’clock inlet position for standard installation
- ISO 2503 compliant with full testing and inspection
Read More
Designed for oxy-fuel cutting and heating systems where external monitoring or centralised pressure control is used, this plugged regulator eliminates integrated gauges for a more compact and robust installation. Suitable for production environments and fixed gas supply systems.
Manufactured from CW614N brass with an elastomer diaphragm and valve seat, the regulator delivers reliable and consistent performance. A sintered bronze inlet filter protects internal components, while each unit undergoes 100% leak, pressure, function, and visual inspection to ensure operational safety and durability.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- Professional-Grade Equipment
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Gas Equipment Gas Regulators Cutting & Heating Regulators Technical Data Sheet (PDF)
Specifications
- Product Type: Single Stage Gas Regulator (Plugged)
- Gas Type: Oxygen
- Outlet Pressure: 0 – 10 bar
- Maximum Inlet Pressure: 300 bar
- Inlet Connection: BS 341 No. 3
- Inlet Position: 6 o’clock
- Outlet Connection: G3/8 RH
- Outlet Position: 3 o’clock
- Gauge Type: No Gauges (Plugged Ports)
- Ports: G¼ (EN 837)
- Body Material: CW614N Brass
- Diaphragm Material: Elastomer
- Valve Seat: Elastomer
- Inlet Filter: Sintered Bronze
- Control Knob: ABS
- Testing: 100% Leak, Pressure, Function & Visual Inspection
