Description

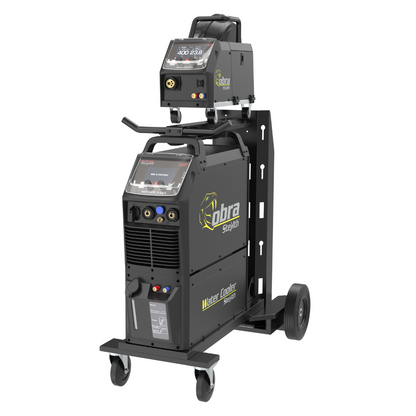

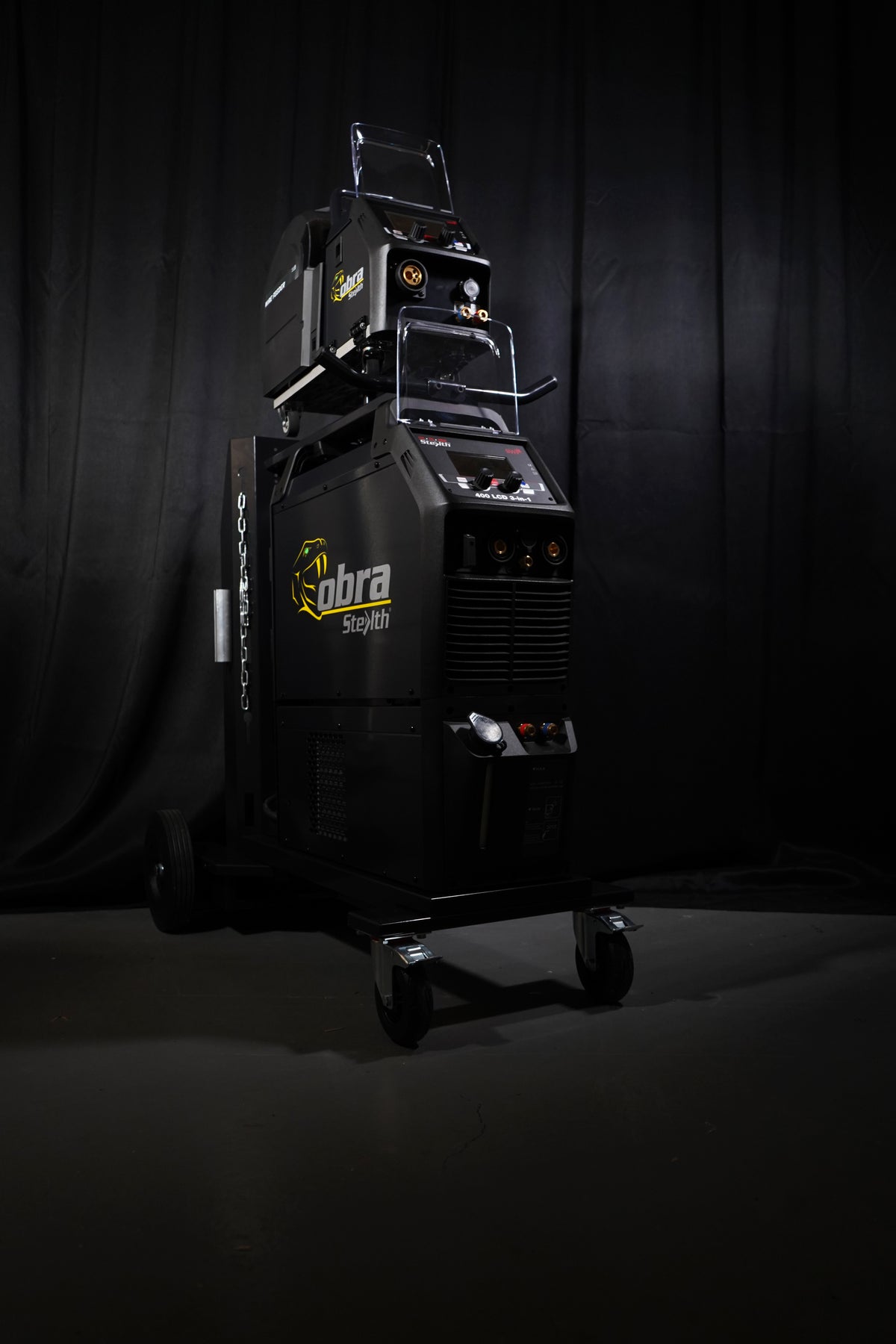

The Cobra by Stealth MIG 400 LCD 3-in-1 Multi-Process Water Cooled Welding Machine (9196H-WC) is a high-output industrial welding system designed for demanding fabrication and production environments. Featuring advanced MCU control, synergic MIG functionality, and water-cooled torch operation, it delivers stable performance and consistent weld quality at high amperage.
- 3-in-1 welding: MIG, Lift TIG (DC), and MMA
- Water cooled system for extended high-amperage operation
- 3-phase 400V input with MCU inverter control
- Synergic MIG with IGBT module technology
- Heavy-duty 60% duty cycle at 400A
What's Included
M501-4 Stealth Grip MIG Torch (Water Cooled) Stealth Regulator (2068) Earth Cable
Optional Accessories
9807 Scratch Start TIG Package EH52LD Electrode Lead
Read More
The 9196H-WC is engineered for continuous high-output welding where heat management, reliability, and productivity are critical. Its water-cooled torch system reduces thermal build-up during extended welding periods, improving operator comfort and maintaining consistent performance.
What is a 3-in-1 Welding Machine?
A 3-in-1 welding machine combines MIG, Lift TIG, and MMA welding processes into a single versatile unit, allowing workshops to handle multiple applications without investing in separate machines.
MIG Synergic – Automatic parameter adjustment for steel, stainless, aluminium, and flux-cored wires.
Lift TIG DC – Precision TIG welding for clean, controlled welds on ferrous materials.
MMA – Reliable stick welding for structural and site applications.
The machine has been tested for moisture, salt spray, and corrosion resistance, and includes phase loss protection and generator compatibility for reliable industrial operation.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- 5 Year Manufacturer Warranty
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Cobra by Stealth MIG Welders Air Cooled Version Technical Manual
Specifications
- Power Supply Voltage (V): 3-400
- Power Frequency (Hz): 50/60
- Effective Current (A): MIG 20.9 | TIG 17.1 | MMA 22.2
- Rated Input Current (A): MIG 27.0 | TIG 22.1 | MMA 28.7
- Rated Input Power (KW): MIG 21.4 | TIG 16.0 | MMA 17.6
- Duty Cycle (40°C 10 min) (A): 60% @400 | 100% @ 310 (MIG, TIG, MMA)
- Welding Current Range (A): MIG 30-400 | TIG 10-400 | MMA 10-400
- Welding Voltage Range (V): MIG 15.5-34 | TIG 10.4 | MMA 20.4-36
- Wire Feeding Speed (m/min): MIG 1.5-18
- No Load Voltage (V): 76
- Efficiency (%): 90.8
- Power Factor: 0.9
- Insulation Class: F
- Protection Class: IP21S
- Cooling: WC
- Net Weight (kg): 29.4
- Dimensions (mm): 710 x 270 x 490
