Description

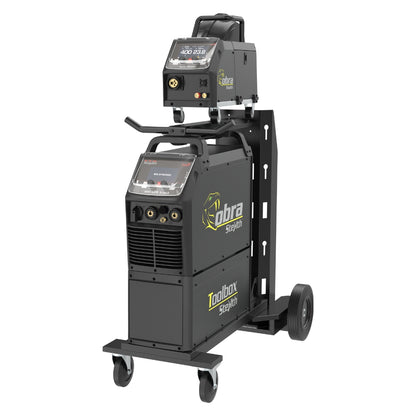

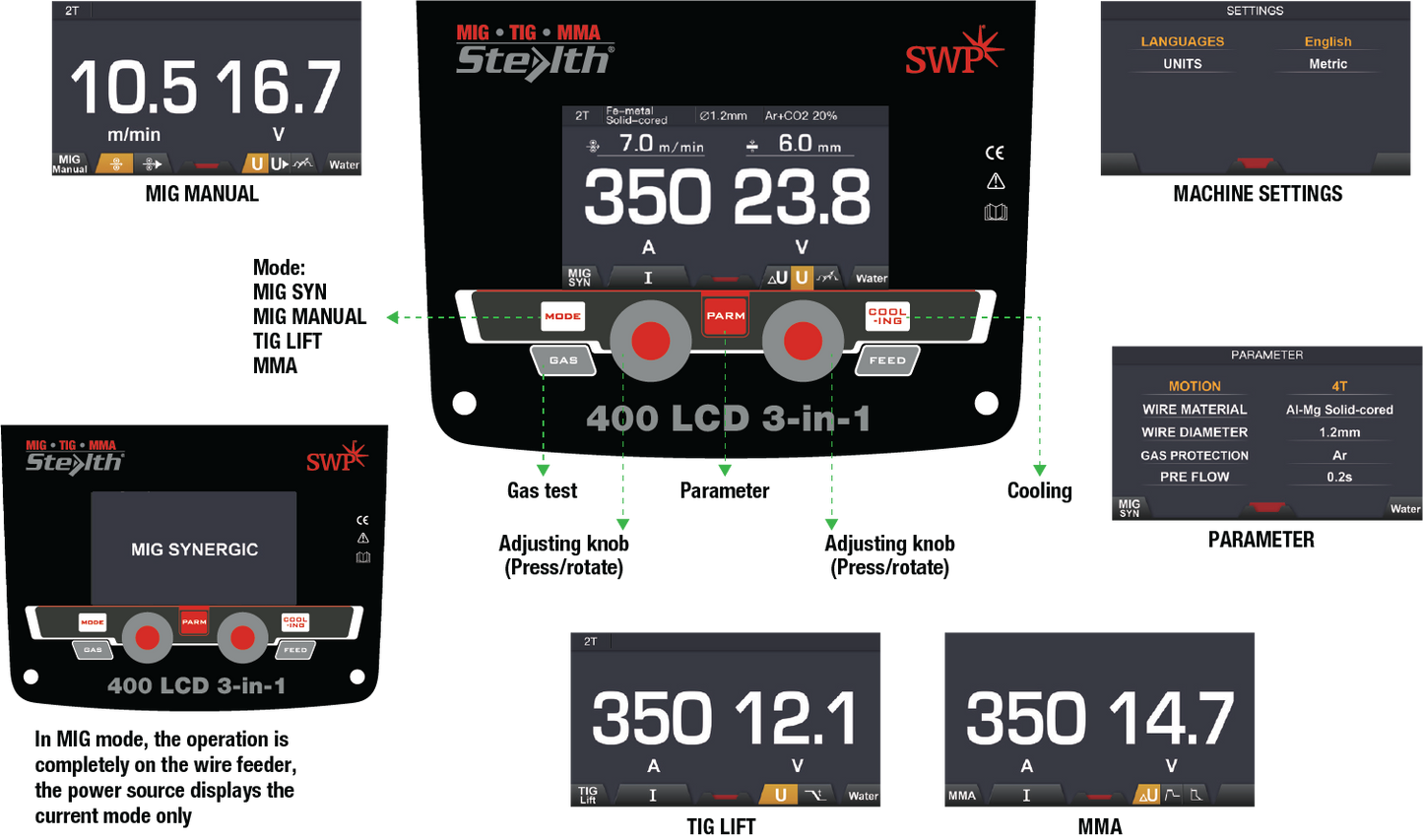

The Cobra by Stealth MIG 400 LCD 3-in-1 Multi-Process Air Cooled Welding Machine (9196H-AC) is a versatile and reliable MIG, TIG (DC), and MMA welding system built for fabrication, production, and workshop environments. Featuring advanced MCU control, synergic MIG performance, and an easy-to-use LCD interface, it combines power and flexibility in one machine.
- 3-in-1 welding: MIG, Lift TIG (DC), and MMA
- Air cooled design for dependable workshop operation
- MCU control with IGBT module and synergic MIG
- Generator friendly with phase loss protection
- Heavy-duty 60% duty cycle at 400A
What's Included
M36-4 Stealth Grip MIG Torch (Air Cooled) Stealth Regulator (2068) Earth Cable
Optional Accessories
9807 Scratch Start TIG Package EH52LD Electrode Lead
Read More
The MIG 400 LCD Air Cooled model is perfect for workshops and fabrication environments where consistent performance, ease of use, and heat management without a water cooler are required. Its synergic MIG control and MCU electronics ensure stable welding parameters across a range of materials.
What is a 3-in-1 Welding Machine?
A 3-in-1 welding machine combines MIG, Lift TIG, and MMA processes in one compact unit, giving operators the versatility to tackle a wide range of applications without multiple machines.
MIG Synergic – Automatic adjustment of parameters for steel, stainless, aluminium, and flux-cored wires.
Lift TIG DC – Precision TIG welding for clean, controlled welds on ferrous materials.
MMA – Reliable stick welding for structural and outdoor welding applications.
Tested for moisture, salt spray, and corrosion resistance, this machine also features phase loss protection and generator compatibility for dependable industrial performance.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- 5 Year Manufacturer Warranty
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Cobra by Stealth MIG Welders Water Cooled Version Technical Manual
Specifications
- Power Supply Voltage (V): 3-400
- Power Frequency (Hz): 50/60
- Effective Current (A): MIG 20.9 | TIG 17.1 | MMA 22.2
- Rated Input Current (A): MIG 27.0 | TIG 22.1 | MMA 28.7
- Rated Input Power (KW): MIG 21.4 | TIG 16.0 | MMA 17.6
- Duty Cycle (40°C 10 min) (A): 60% @400 | 100% @ 310 (MIG, TIG, MMA)
- Welding Current Range (A): MIG 30-400 | TIG 10-400 | MMA 10-400
- Welding Voltage Range (V): MIG 15.5-34 | TIG 10.4 | MMA 20.4-36
- Wire Feeding Speed (m/min): MIG 1.5-18
- No Load Voltage (V): 76
- Efficiency (%): 90.8
- Power Factor: 0.9
- Insulation Class: F
- Protection Class: IP21S
- Cooling: AC
- Net Weight (kg): 29.4
- Dimensions (mm): 710 x 270 x 490
