Description

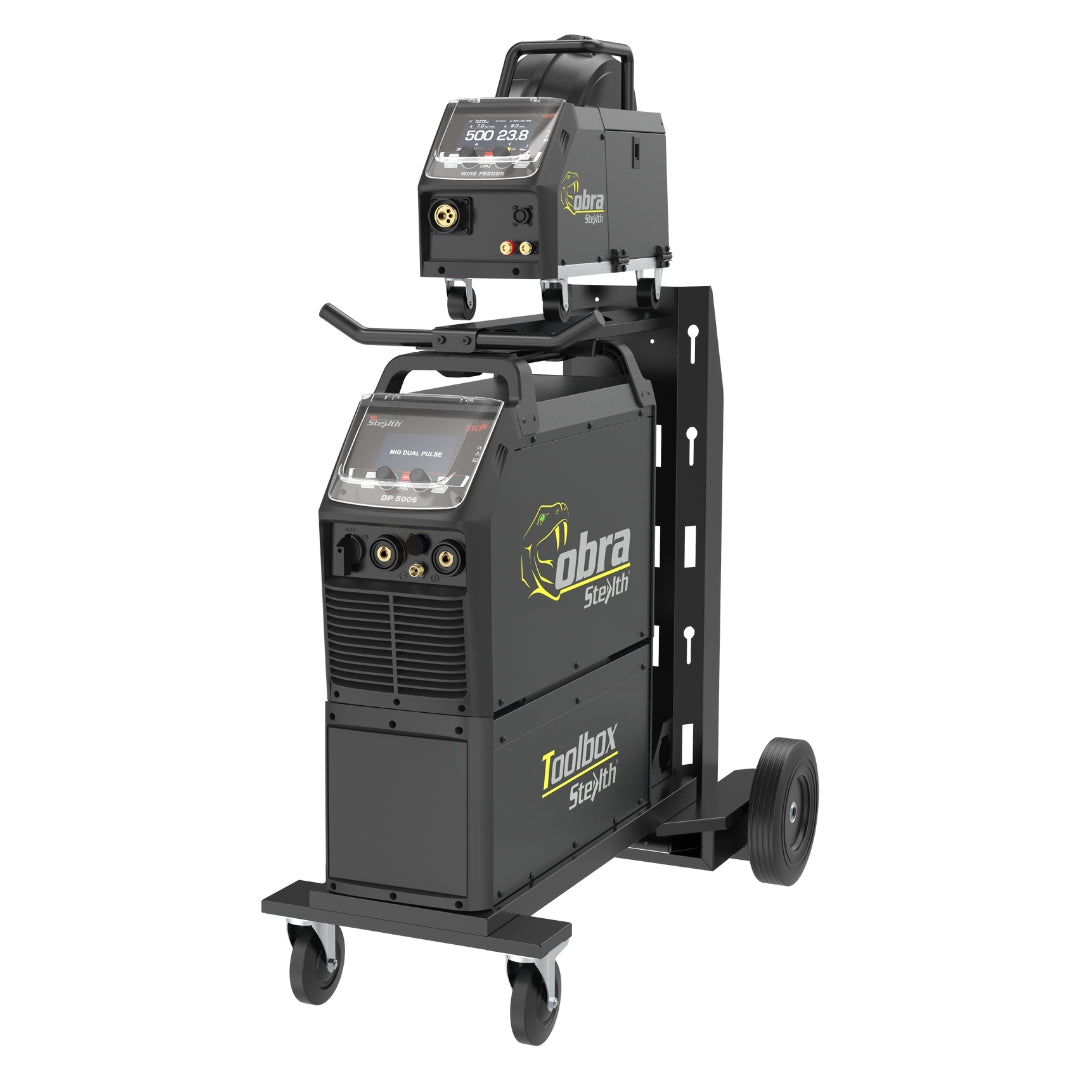

The Cobra by Stealth MIG DP 5006 Air Cooled MIG Welding Machine delivers professional-grade performance with dual pulse technology and synergic control for superior arc stability. Designed for demanding industrial environments, it combines advanced DSP electronics with reliable inverter technology for consistent high-output welding.
- Dual pulse MIG with synergic control system
- 3-phase 400V input with DSP and IGBT technology
- Heavy-duty 60% duty cycle at 500A
- Air cooled design for reliable workshop operation
- 5” LCD display with real-time parameter monitoring
What's Included
M36-4 Stealth Grip MIG Torch (Air Cooled) Stealth Regulator (2068) Earth Cable
Optional Accessories
9807 Scratch Start TIG Package EH52LD Electrode Lead
Read More
The DP 5006 Air Cooled model is ideal for fabrication and production environments where high output, reliability, and simplified cooling systems are preferred. Its synergic control and dual pulse functionality improve weld appearance and reduce spatter across a wide range of materials.
Advantages of a 4-Roller Drive System
A 4-roller drive system improves wire feeding accuracy and stability compared to traditional 2-roller systems.
More Consistent Feeding – Four contact points reduce slipping and uneven arc behaviour.
Better Wire Grip – Minimises bird-nesting and feeding faults.
Less Wire Deformation – Protects soft and flux-cored wires.
Stronger Drive Power – Ideal for long torches and aluminium welding.
Improved Reliability – Fewer interruptions and higher productivity.
This system is particularly beneficial for high-precision, high-output applications where consistent wire delivery is essential.
Why Buy from Specialised Welding Products?
- Next Working Day Delivery
- Free Click & Collect
- 5 Year Manufacturer Warranty
- UK Leading Stockist & Supplier
- UK-Based Technical Support
- Selected by Professionals
- Supplying over 1500 distributors
- Established since 1991
Relevant Links
Cobra by Stealth MIG Welders Water Cooled Version Technical Manual
Specifications
- Power Supply Voltage (V): 3-400
- Power Frequency (Hz): 50/60
- Effective Current (A): MIG 31.4 | TIG 15.6 | MMA 32.1
- Rated Input Current (A): MIG 40.5 | TIG 33.0 | MMA 41.5
- Rated Input Power (KW): MIG 28.1 | TIG 22.8 | MMA 28.9
- Duty Cycle (A) (40°C 10 min): 60% 500A | 100% 410A
- Welding Current Range (A): MIG 20-500 | TIG 10 - 500 | MMA 10-500
- Welding Voltage Range (V): MIG 15-39 | TIG 10.4-30 | MMA 20.4-40
- Wire Feeding Speed (M/MIN): MIG 1.5-39
- No Load Voltage (V): MIG 95 | TIG 93 | MMA 93
- Efficiency (%): 91.3
- Power Factor: 0.77
- Protection Class: IP21S
- Cooling: AF
- Dimensions (MM): 710 x 270 x 490
- Weight (KG): 30.5
