Description

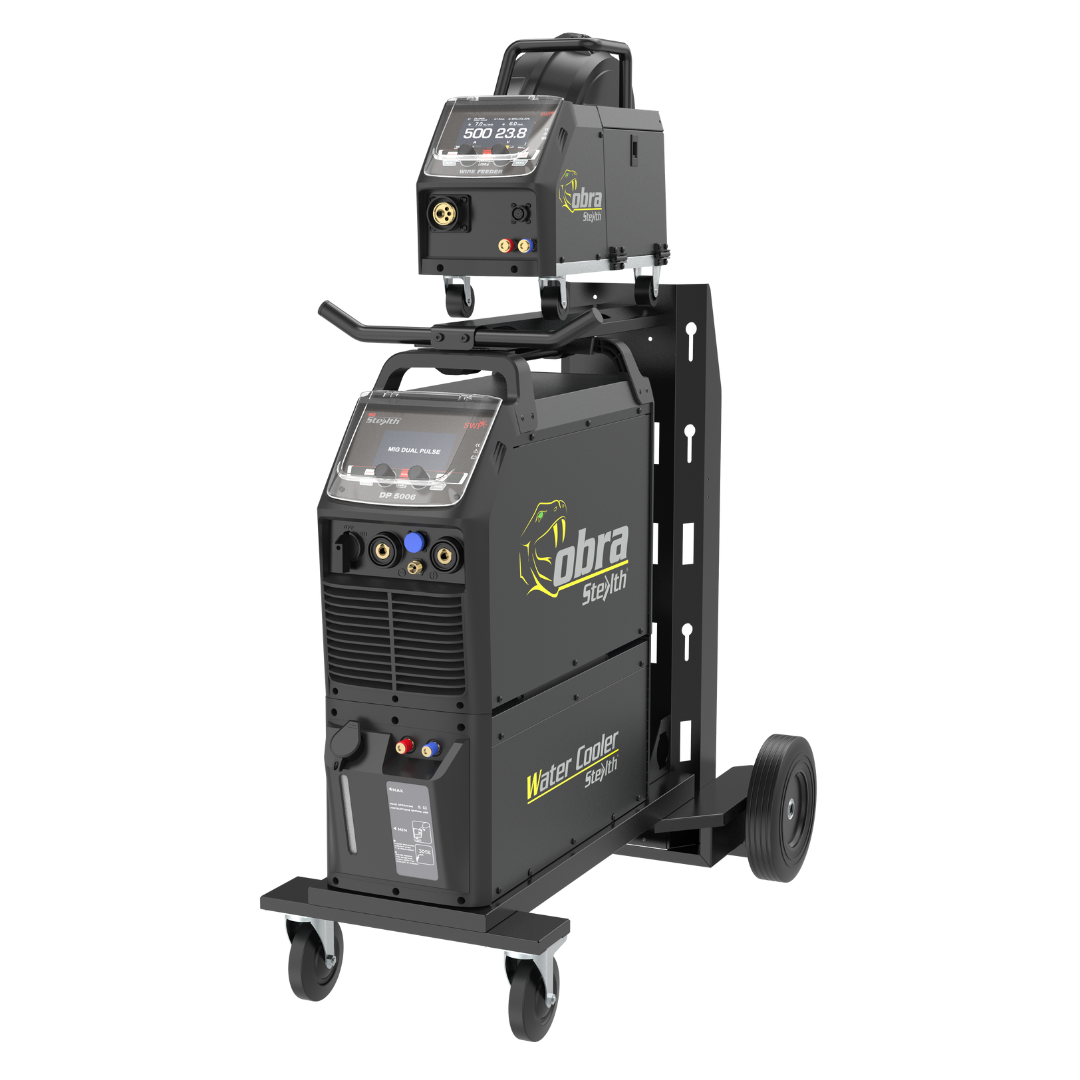

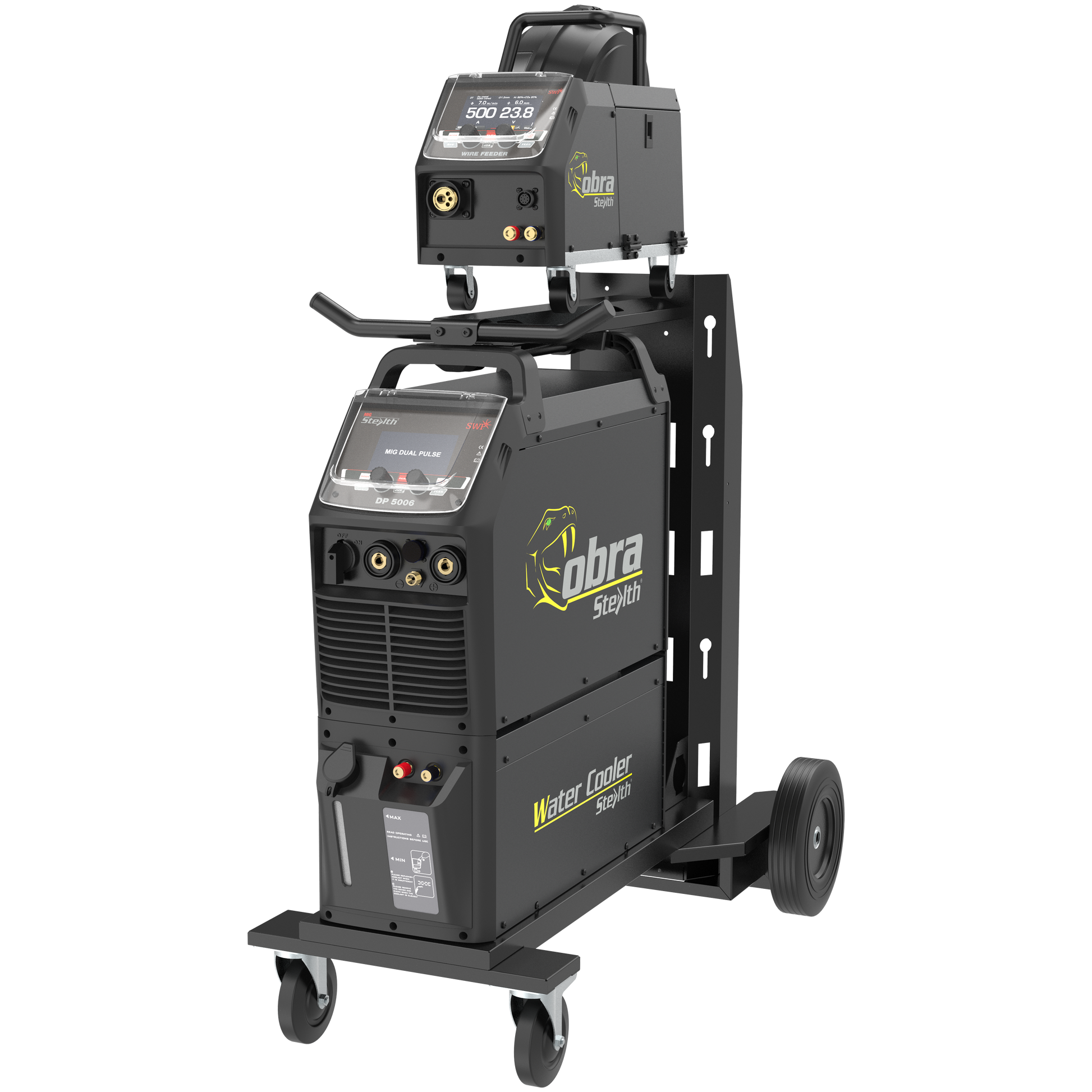

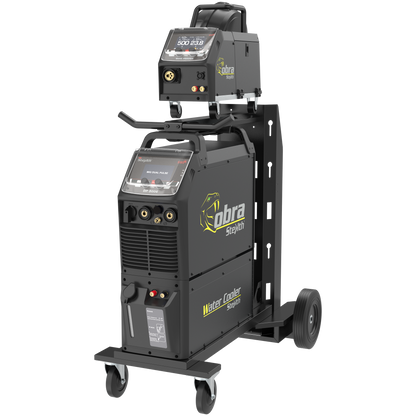

The Cobra by Stealth MIG DP 5006 represents a water-cooled welding solution engineered for industrial professionals requiring consistent performance in challenging conditions. Featuring dual pulse technology with synergic control, this machine delivers stable arc characteristics across demanding applications. The advanced IGBT module and DSP control architecture ensure precision welding at 500A with a 60% duty cycle. Its 5" LCD interface enables real-time parameter monitoring, whilst the 300mm spool holder accommodates standard 20kg wire reels. Constructed with triple-proof protection against moisture, salt spray, and environmental corrosion, it performs reliably on-site and with generator power supplies. Comprehensive 5-year warranty included.
- 3ph-400V | 50/60Hz Input Voltage
- Dual Pulse
- Synergic
- 300mm (20kg) Reel
- DSP Control System
- IGBT Module
- Heavy duty Cycle 60% @ 500A
- 5" LCD Display
- Tested in Production
- Phase Loss Protection
- Generator Friendly
- 3 Proof | Moisture, Salt Spray, Corrosion
- Water Cooled
- 5 Year Warranty
- Download the Technical Manual
Includes:
Optional:
Advantages of a 4-roller drive system on a MIG welding wire feeder
A 4-roller drive system offers several benefits over a 2-roller setup, improving wire feeding and weld quality:
More Consistent Wire Feeding – With four points of contact, the wire feeds more smoothly, reducing slipping and uneven arc performance.
Better Wire Grip – The extra rollers hold the wire more securely, reducing bird-nesting and feeding issues.
Less Wire Deformation – Spreading the pressure across four rollers prevents soft wires, like aluminium or flux-cored, from getting crushed or distorted.
Stronger Feeding Power – A 4-roller system provides better pulling force, making it ideal for longer welding torches or harder-to-feed wires.
More Reliable Performance – Fewer feeding problems mean less downtime and more consistent welding results.
This system is especially useful for longer welding torches, soft wires, or high-precision applications where steady wire feeding is critical.
Specifications
- Power Supply Voltage (V): 3-400
- Power Frequency (Hz): 50/60
- Effective Current (A): MIG 31.4 | TIG 15.6 | MMA 32.1
- Rated Input Current (A): MIG 40.5 | TIG 33.0 | MMA 41.5
- Rated Input Power (KW): MIG 28.1 | TIG 22.8 | MMA 28.9
- Duty Cycle (A) (40°C 10 min): 60% 500A | 100% 410A
- Welding Current Range (A): MIG 20-500 | TIG 10 - 500 | MMA 10-500
- Welding Voltage Range (V): MIG 15-39 | TIG 10.4-30 | MMA 20.4-40
- Wire Feeding Speed (M/MIN): MIG 1.5-39
- No Load Voltage (V): MIG 95 | TIG 93 | MMA 93
- Efficiency (%): 91.3
- Power Factor: 0.77
- Protection Class: IP21S
- Cooling: AF
- Dimensions (MM): 710 x 270 x 490
- Weight (KG): 30.5
